SUPERMICRO

Supermicro SV SSG-620P-ACR16H 2U Xeon Socket P+ LG-4189 12x3.5HS 1600W

Mfg Part Number:  SSG-620P-ACR16H
Image may not reflect the actual item.
Price: $4,658.38 + Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Oct 10, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
General Information
Manufacturer Supermicro Computer, Inc
Manufacturer Part Number SSG620PACR16H
Manufacturer Website Address http://www.supermicro.com
Brand Name Supermicro
Product Line SuperServer
Product Model SSG-620P-ACR16H
Product Name Storage SuperServer SSG-620P-ACR16H
Product Type Server Barebone System
Processor
Number of Processors Supported 2
Processor Socket Socket LGA-4189
Processor Supported Xeon
64-bit Processing Yes
Chipset
Chipset Manufacturer Intel
Chipset Model C621A
Memory
Maximum Memory Supported 4 TB
Memory Technology DDR4 SDRAM
Memory Standard DDR4-3200/PC4-25600
Total Number of Memory Slots 16
Storage
Supported Storage Drive Interfaces SAS
Supported Storage Drive Interfaces PCI Express
Supported Storage Drive Interfaces Serial ATA
Supported Storage Drive Types HDD
Supported Storage Drive Types SSD
Controllers
Controller Type Serial ATA
Controller Type Serial Attached SCSI (SAS)
Controller Type NVMe
RAID Supported Yes
Network & Communication
Ethernet Technology 10 Gigabit Ethernet
Ethernet Technology Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays 18
Number of 3.5" Bays 16
Total Number of Expansion Slots 5
Number of PCI Express x8 Slots 1
Number of PCI Express x16 Slots 4
Number of M.2 Interfaces 1
Interfaces/Ports
Total Number of USB Ports 4
Number of USB 3.0 Ports 4
Network (RJ-45) Yes
Number of Network (RJ-45) Ports 3
Number of VGA Ports 1
Power Description
Input Voltage 120 V AC
Input Voltage 230 V AC
Number of Power Supplies Installed 2
Maximum Power Supply Wattage 1600 W
Thermal Design Power 270 W
Frequency 50 Hz
Frequency 60 Hz
Physical Characteristics
Color Family Black
Product Color Black
Form Factor Rack-mountable
Rack Height 2U
Height 3.5"
Width 17.2"
Depth 27.8"
Weight (Approximate) 41.50 lb
Miscellaneous
Package Contents
  • Storage SuperServer SSG-620P-ACR16H

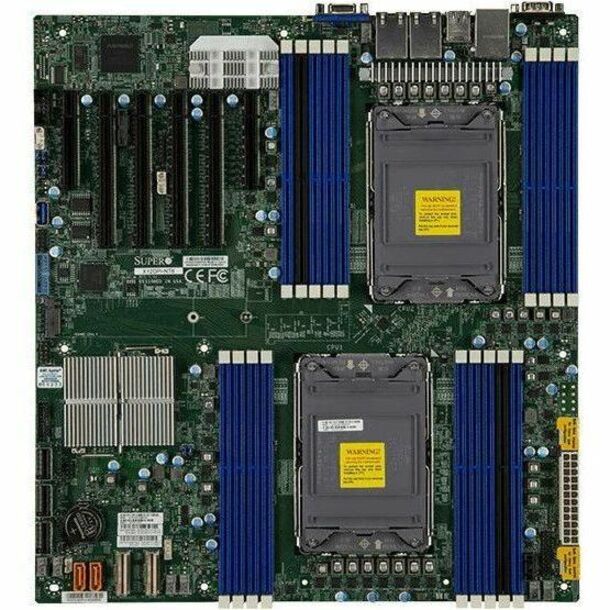

  • 1 x Super X12DPi-NT6 Motherboard
  • 1 x 2U Chassis
  • 1 x 16 int 12Gb/s ports, x8 Gen4, ROC - LP, 32HDDw/exp,RoHS
  • 1 x 4-port internal SAS3 12Gbps backplane, support up to 4x 3.5-inch SAS3/SATA3 HDD/SSD
  • 1 x 2U 12-Slot LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 4x(1x4) power connectors, co-lay with BPN-SAS3-LA26A-N12,HF,RoHS
  • 2 x HDD POWER CABLE (BIG 4 PIN; 32CM), PBF
  • 1 x 4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1
  • 2 x Big 4 Pin Male to Big 4 Pin Female, Power Extension 15cm
  • 1 x SlimSAS (x8 ST to x4 STR and miniS)80/50CM,100OHM,RoHS
  • 1 x Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM,
  • 1 x [NR] FRONT CNTL,20 TO 20 PIN, P0.5, FFC,FLAT, 23.5CM, STD,Ro
  • 1 x [NR] I2C,(1x4F to 1x4F)/P2.5,85CM,26AWG,RoHS
  • 2 x PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
  • 4 x PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,20CM,22AWG,5A/PIN,RoHS
  • 1 x STD I/O shield for X9 socket R server MB with Gasket.
  • 1 x Mylar 1U air shroud for SC829H X12
  • 1 x License key for enabling OOB BIOS management
  • 1 x 1U Passive CPU HS 92mm Width for X12 Whitley Platform
  • 1 x 2U Active CPU Heat Sink for X12 Generation Building Block Solutions
  • 2 x AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH
  • 1 x 2U standard output with 24Pin PDB support up to
  • 4 x 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above
  • 4 x 80x80x38 mm, 13.5K RPM, Optional Middle Cooling Fan for 2U Ultra Series Servers (Hot-swappable Version of FAN-0162L4)
  • 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers
  • 1 x Chassis transfer board for SC826
  • 12 x Black gen 5.5 hot-swap 3.5" HDD tray
  • 1 x Middle tray plate for SC829H
  • 4 x Internal mid tray with handle for SC829H
  • 1 x 826B/216B rear dummy cover for 2 X 2.5
  • 1 x 36"; Rail set for Auto-latch, quick/quick, 2, 3U 17.2";W
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 1 Year
Additional Warranty Information

Supermicro provides a three-year warranty for labor and one-year warranty for parts.
