SUPERMICRO

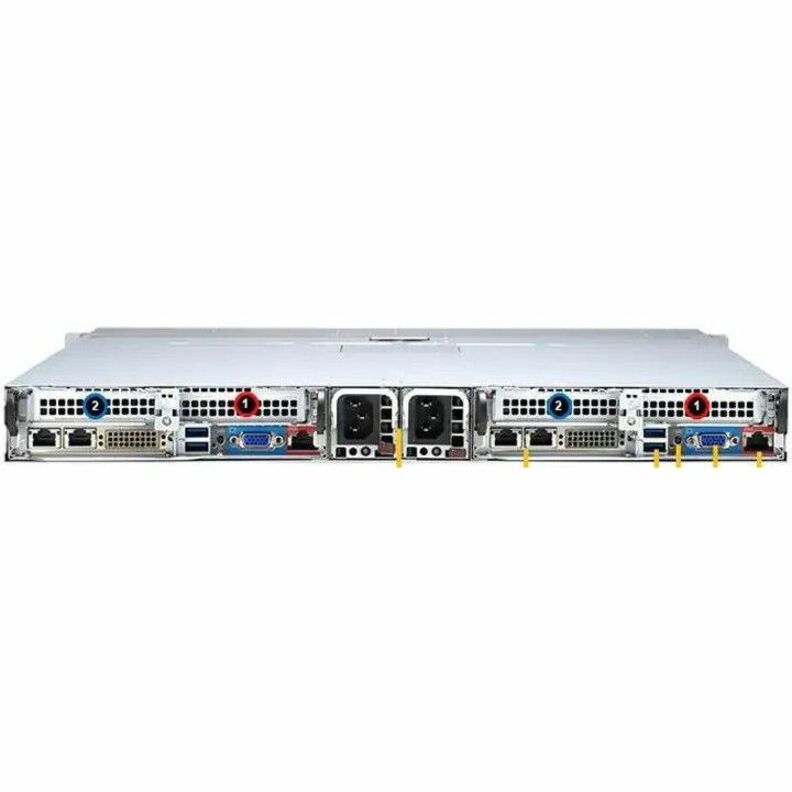

Supermicro SY SYS-120TP-DTTR 1U Xeon Socket P+ LGA4189 Max4TB DDR4 4x2.5HS

Mfg Part Number:  SYS-120TP-DTTR
Image may not reflect the actual item.
Price: $4,824.42 + Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Jun 22, 2026
No Sales Tax except these states
, PO and Wire.

Twin Server Solutions

Reducing TCO and TCE Effectively

Main Specification
General Information
Manufacturer Supermicro Computer, Inc
Manufacturer Part Number SYS-120TP-DTTR
Manufacturer Website Address http://www.supermicro.com
Brand Name Supermicro
Product Line SuperServer
Product Model SYS-120TP-DTTR
Product Name SuperServer SYS-120TP-DTTR (Black front & sliver body)
Packaged Quantity 1
Product Type Server Barebone System
Processor
Number of Processors Supported 2
Processor Socket Socket LGA-4189
Processor Supported Xeon Bronze
Processor Supported Pentium Gold
Processor Supported Xeon Platinum
Processor Supported Xeon Silver
64-bit Processing Yes
Chipset
Chipset Manufacturer Intel
Chipset Model C621A
Memory
Maximum Memory Supported 4 TB
Memory Technology DDR4 SDRAM
Memory Standard DDR4-3200/PC4-25600
Storage
Supported Storage Drive Interfaces Serial ATA III
Supported Storage Drive Interfaces SAS-3
Supported Storage Drive Types HDD
Controllers
Controller Type NVMe
Controller Type 12Gb/s SAS
Controller Type Serial ATA/600
RAID Supported Yes
RAID Levels 0, 1, 5, 10
Network & Communication
Ethernet Technology 10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays 4
Total Number of Expansion Slots 2
Number of PCI Express x16 Slots 2
Number of M.2 Interfaces 2
Interfaces/Ports
Total Number of USB Ports 2
Number of USB 3.0 Ports 2
Number of USB 3.2 Gen 1 Ports 5
Network (RJ-45) Yes
Number of VGA Ports 1
Power Description
Input Voltage 230 V AC
Input Voltage 120 V AC
Plug/Connector Type C13/C14
Number of Power Supplies Installed 2
Maximum Power Supply Wattage 1000 W
Physical Characteristics
Color Family Dual Color
Product Color Silver
Product Color Black
Form Factor Rack-mountable
Rack Height 1U
Height 1.7"
Width 17.2"
Depth 28.3"
Weight (Approximate) 33.51 lb
Miscellaneous
Package Contents
  • SuperServer SYS-120TP-DTTR (Black front & sliver body)
  • 2 x Super X12DPT-PT6 Motherboard
  • 1 x 1U Chassis
  • 2 x Backplane adapter card; 6SATA ports,RoHS/REACH,PBF
  • 1 x 1U 8-Port 2-Node 12Gbps Backplane for 4x2.5" SAS3/SATA3 HDD/
  • 2 x PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17
  • 2 x TwinPro 2U4N plastic air shroud for X12DPT-PT6(2pcs)
  • 2 x 1U LHS TwinPro Riser card with one PCIe 4.0x16lotH,RoHS
  • 2 x 1U RHS TwinPro Riser card with one PCIe 4.0 x16 slot,HF,RoH
  • 2 x 2x NVMe M.2 carrier up to 2280 for X12 Twinpro
  • 2 x License key for enabling OOB BIOS management
  • 2 x X12 ICX/CPX 1U Passive CPU Heatsink (78x113x24.7mm), w/ Center Air channel
  • 2 x X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin
  • 2 x 1U 1000W Redundant Power Supply Titanium, 38X40X360mm length
Warranty
Limited Warranty 3 Year
