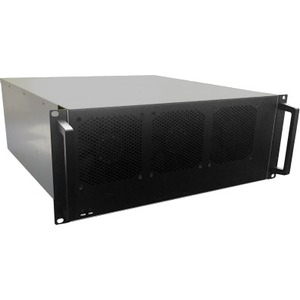

ONE STOP SYSTEMS. OSS-PCIE3-4UV-16-2-1M 4U 18.5 D VALUE LINE EXPANSION ENCLOSUR

Mfg Part Number:  OSS-PCIE3-4UV-16-2-1M
Image may not reflect the actual item.
Price: $17,230.50 + Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Oct 24, 2025
No Sales Tax except these states
, PO and Wire.

This 16 slot rackmount expansion platform provides PCIe expansion at a value price.

The 4UV supports 2 PCIe 3.0 x16 host connections to 16 PCIe 3.0 x8 slots with two 1m cables to the host server. The system supports 16 full length PCIe add-in cards (AICs) such as NVMe flash and industrial I/O. Two fan choices allow for high-power add-in card cooling up to 100W per AIC or a set-and-forget manual speed control using PWM fans when lower power AICs and quiet operation are required. Two 2000W power supplies provide redundant hot-swap system power.

Features:

  • 4U rackmount design
  • 16 PCIe 3.0 x8 expansion slots
  • Two PCIe 3.0 x16 host connections
  • Two PCIe 1m cables
  • Tach and PWM fan options
  • Two 2000W load-sharing power supplies
  • AUX power connectors for high power AICs
Main Specification
General Information
Manufacturer One Stop Systems, Inc
Manufacturer Part Number OSS-PCIe3-4UV-16-2-1M
Manufacturer Website Address http://www.onestopsystems.com
Brand Name One Stop Systems
Product Line 4U Value
Product Name 4U Value 16-Slot Expansion System
Product Type Expansion Chassis
Physical Characteristics
Color Family Black
Product Color Black
Form Factor Rack-mountable
Height 7"
Width 19"
Depth 18.5"
Weight (Approximate) 60 lb
Miscellaneous
Package Contents
  • 4U Value 16-Slot Expansion System
  • Tool-Less Rack Slides
Additional Information

PCIe Backplanes

  • Two OSS-PCIe-BP-452 PCIe3 8-slot expansion backplanes.

The 16-slot integrated system includes:

  • Two HIB38-x16 PCIe cable target interfaces (one per backplane)
  • Sixteen (16) PCIe3 x16 single-width slots

Host/Target Interface

  • The system includes two PCIe 3.0 x16 host/target interfaces for connecting the accelerator to just about any server.

HIB38-x16 Host/Target Interfaces

  • Half-height, half length, single slot x16 PCIe add-in card form factor
  • PCIe3 x16 physical card edge connector (128 Gbps)
PCIe Cable Specification 2.0 x16 cable connector (128 Gbps)
  • Accepts iPass copper cables up to 2m
Broadcom PEX 8733 switch includes:
  • Fast-cut through, 150ns latency
  • Non-blocking switch fabric
  • Maximum server compatibility design
  • SSC isolation
  • Integrated 4-channel DMA engine
  • 6.4W typical

Cables

  • Each host/target interface comes with a Passive x16 1m cable

Cooling

  • Three 120mm x 38mm fans mounted to the front bezel of the chassis

Two standard fan options available:
High-Capacity Fans

  • 250CFM fixed-speed fans
  • Tachometer monitoring via front panel LED

Variable Speed PWM Fans

  • 250CFM fixed-speed PWM fans
  • Set and forget manual PWM speed control module internal to the enclosure

Power
Dual load-sharing power supplies pluggable from the rear of the chassis:

  • Two 2000W 80Plus Titanium efficiency power supplies
  • Two integrated 220-240V, 10A AC inputs (one in each supply)
  • Power supplies can provide up to 4000W non-redundant total power to the system
  • Supplies are redundant hot-swap when system power requirements are under 2000W total

Aux Power

  • An array of 8 EPS12V AUX power connectors available for high-power cards
Application/Usage Server
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS) 2
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 1 Year
