When paired with the 1701+ Base, the 1701+ Link can supercharge the downlink ports of a standard Ethernet switch, delivering up to 420Mbps and PoE+ over Coax, single pair UTP or 2 wire infrastructures with reach of up to 8,000ft (2.4km) on RG6.
General Information | |
Manufacturer | Phybridge, Inc |
Manufacturer Part Number | NV-EC1701PLS-LK |
Manufacturer Website Address | http://www.phybridge.com |
Brand Name | NVT Phybridge |
Product Series | 1701 |
Product Model | 1701+ |

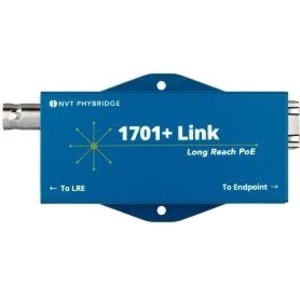

Product Name | 1701+ Link (NV-EC1701PLS-LK) |
Packaged Quantity | 1 |
Product Type | Network Extender |
Technical Information | |
Maximum Extended Range | 7874.02 ft |
Maximum Data Transfer Rate | 52.50 MB/s |
Interfaces/Ports | |
Network (RJ-45) | Yes |
Number of Network (RJ-45) Ports | 1 |
Power Description | |
Input Voltage | 55 V DC |
Physical Characteristics | |
Height | 1.3" |
Width | 2.1" |
Length | 4.2" |
Miscellaneous | |
Environmentally Friendly | Yes |
