Built to reimage connection, reinforce security and redefine experience
Cisco Catalyst 9300 Series switches are Cisco's lead stackable enterprise access switching platform and as part of the Catalyst 9000 family, are build to transform your network to handle a hybrid world where the workplace is anywhere, endpoints could be anything, and applications are hosted all over the place.
The Catalyst 9300 Series, including the new Catalyst 9300X models, continues to shape the future with continued innovation that helps you reimagine connections, reinforce security and redefine the experience for your hybrid workforce big and small.
The many industry's first include:
General Information | |
Manufacturer | Cisco Systems, Inc |
Manufacturer Part Number | C9300L48PF4G1E |
Manufacturer Website Address | http://www.cisco.com |
Brand Name | Cisco |
Product Line | Catalyst |
Product Series | 9300 |
Product Model | C9300L-48PF-4G |

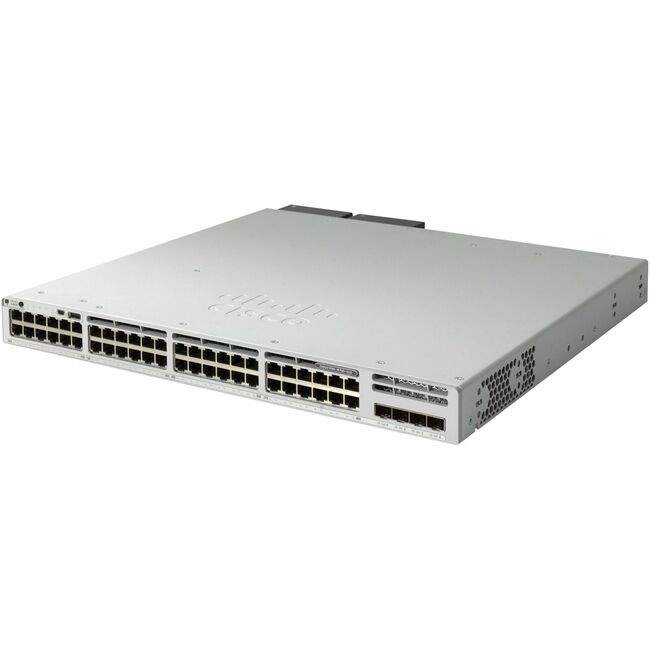

Product Name | Catalyst C9300L-48PF-4G Ethernet Switch |
Product Type | Ethernet Switch |
Interfaces/Ports | |
Total Number of Network Ports | 48 |
Uplink Port | Yes |
Modular | Yes |
Stack Port | Yes |
Port/Expansion Slot Details | 4 x Gigabit Ethernet Uplink |
Port/Expansion Slot Details | 48 x Gigabit Ethernet Uplink |
Media & Performance | |
Media Type Supported | Optical Fiber |
Media Type Supported | Twisted Pair |
Ethernet Technology | Gigabit Ethernet |
Network Technology | 1000Base-X |
Network Technology | 1000Base-T |
I/O Expansions | |
Total Number of Expansion Slots | 4.0 |
Expansion Slot Type | Uplink Module |
Network & Communication | |
Layer Supported | 3 |
Networking Standards | IEEE 802.1x |
Networking Standards | IEEE 802.3bz |
Networking Standards | IEEE 802.3u |
Networking Standards | IEEE 802.3af |
Networking Standards | IEEE 802.1s |
Networking Standards | IEEE 802.11ac |
Networking Standards | IEEE 802.3an |
Networking Standards | IEEE 802.3ad |
Networking Standards | IEEE 802.1p |
Networking Standards | IEEE 802.1ae |
Networking Standards | IEEE 802.1BA |
Networking Standards | IEEE 802.1w |
Networking Standards | IEEE 802.3ab |
Networking Standards | IEEE 802.3at |
Networking Standards | IEEE 802.1AVB |
Networking Standards | IEEE 802.3 |
Networking Standards | IEEE 802.1D |
Networking Standards | IEEE 802.3bt |
Networking Standards | IEEE 802.3z |
Networking Standards | IEEE 802.1Q |
Management & Protocols | |
Manageable | Yes |
Power Description | |
Power Source | Power Supply |
Redundant Power Supply Supported | Yes |
Power Consumption | 1100 W |
Physical Characteristics | |
Form Factor | Rack-mountable |
Height | 1.7" |
Width | 17.5" |
Depth | 16.1" |
Weight (Approximate) | 15.50 lb |
Miscellaneous | |
Package Contents |
|
Application/Usage | Business |
Application/Usage | IP Phone |
Application/Usage | Enterprise |
Application/Usage | Data Center |
Application/Usage | Branch Office |
Energy Star | Yes |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
Warranty | |
Limited Warranty | Lifetime |
