One Cable. Connectivity for Your World.
Through a single cable, the 14-Port Thunderbolt Dock brings an unprecedented combination of ports, convenience and power to your Thunderbolt equipped PC or Mac. Bring functionality back to your notebook. Quickly access all of the displays and peripherals at your desk while minimizing desk clutter. Charge your computer and all of your mobile devices simultaneously. Connect and make any shared workspace feel like home.
Welcome to your new world of connectivity.
Connect. Work. Disconnect. Go.
The days of only working at your desk are gone. We're always on the move bouncing between our desks, meetings, and couches - often in a hurry. With a single connection to your notebook computer, the 14-Port Thunderbolt Dock makes coming back to your desk to work and leaving your desk to run to a meeting, a much quicker endeavor.
The Right Ports. Right Where You Need Them.

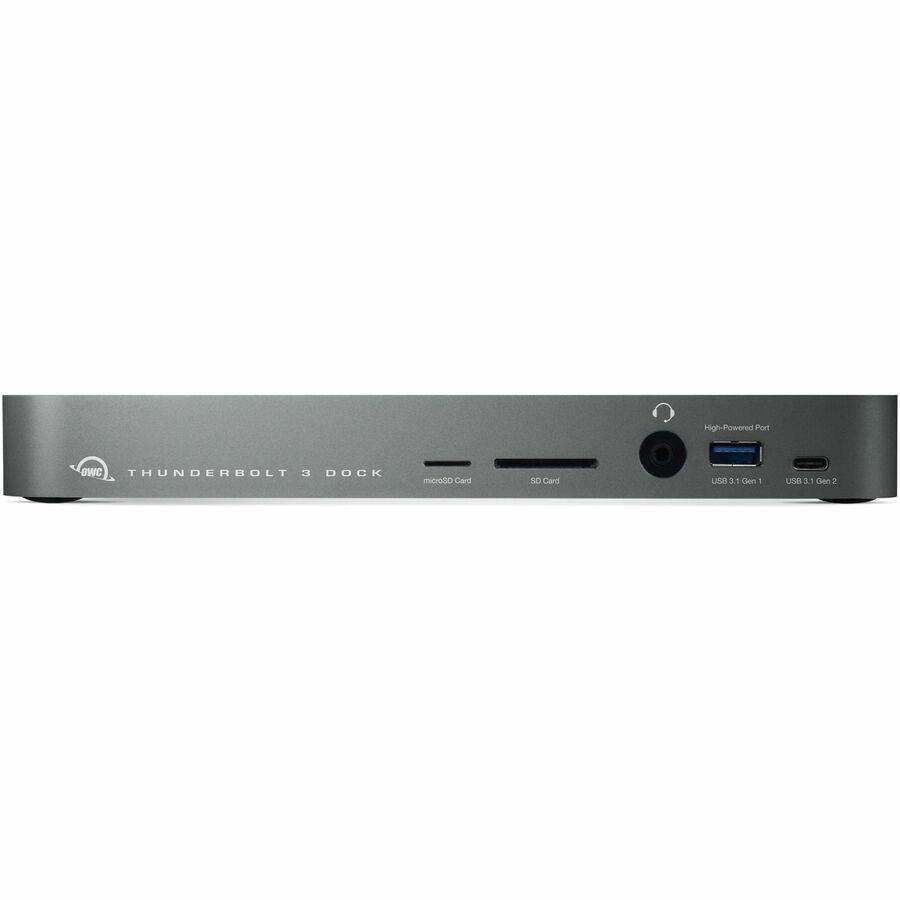

Our engineers evaluated thousands of possibilities in discovering the optimal port configuration for nearly any environment. With each port thoughtfully placed, the 14-Port Thunderbolt Dock delivers convenience while keeping desktops clutter-free. The docking station's front is designed for the easy connection of your portable devices, headphones and media cards, while the rear features a multitude of ports for your static devices so cables stay out of sight.
| General Information | |
| Manufacturer | Other World Computing |
| Manufacturer Part Number | OWCTB3DK14PSG |
| Manufacturer Website Address | https://www.owc.com/ |
| Brand Name | OWC |
| Product Name | 14-Port Thunderbolt Dock |
| Packaged Quantity | 1 |
| Product Type | Docking Station |
| Technical Information | |
| Connectivity Technology | Wired |
| Charging Capability | Yes |
| Device Supported | Notebook |
| Cable Length | 2.30 ft |
| Memory Card Reader | Yes |
| Memory Card Supported | SD |
| Memory Card Supported | microSD |
| Number of Displays Supported | 2 |
| Screen Mode Supported | 4K @ 60Hz |
| Screen Mode Supported | 5K @ 60Hz |
| Supported Resolutions | 5120 x 2880 |
| Supported Resolutions | 3840 x 2160 |
| Maximum Data Transfer Rate | 5 GB/s |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Host Interface | Thunderbolt 3 |
| Total Number of USB Ports | 6 |
| USB Type-A | Yes |
| Number of USB 3.2 Gen 1 Type-A Ports | 5 |
| Number of USB Type-A Ports | 5 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB 3.2 Gen 2 Type-C Port up to 10Gb/s (1250MB/s) - USB 2.0/3.0 backwards compatible |
| Number of USB Type-C Ports | 1 |
| Network (RJ-45) | Yes |
| Number of RJ-45 Ports | 1 |
| S/PDIF Out | Yes |
| Mini DisplayPort | Yes |
| Number of Mini DisplayPort | 1 |
| Headphone/Microphone Combo Port | Yes |
| Thunderbolt | Yes |
| Number of Thunderbolt 3 Ports | 1 |
| USB Power Delivery | 85W |
| Software | |
| Operating System Supported | Windows Server 2016 |
| Operating System Supported | Mac OS X 14.x Sonoma |
| Operating System Supported | Mac OS X 10.15 Catalina |
| Operating System Supported | Windows 11 |
| Operating System Supported | Mac OS X 12.0 Monterey |
| Operating System Supported | Mac OS X 13.0 Ventura |
| Operating System Supported | Mac OS X 10.12 Sierra |
| Operating System Supported | Mac OS X 10.13 High Sierra |
| Operating System Supported | Mac OS X 10.14 Mojave |
| Operating System Supported | Mac OS X 11.0 Big Sur |
| Operating System Supported | macOS Sequoia 15 |
| Operating System Supported | Windows 10 |
| Power Description | |
| Input Voltage Detail | 230 V AC |
| Input Voltage Detail | 120 V AC |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Maximum Power Supply Wattage | 180 W |
| Power Source Type | Power Adapter |
| Physical Characteristics | |
| Color Family | Dual Color |
| Product Color | Black |
| Product Color | Space Gray |
| Height | 0.98" |
| Width | 9.06" |
| Length | 3.5" |
| Weight (Approximate) | 1.10 lb |
| Miscellaneous | |
| Package Contents | |
| Kensington Security Slot | No |
| Compatibility | Thunderbolt 3 equipped Windows PC or Mac |
| Brand Compatibility | Apple |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
