ZyXEL XGS1250-12 - 8-PORT GIGABIT WEB MANAGED MULTI-GIG SWITCH WITH 3-PORT 10G COPPER
Mfg Part Number: XGS1250-12 , Item #: 4410755
, PO and Wire.
Upgrade Speeds Without Hesitation
Double the 10G Capability!

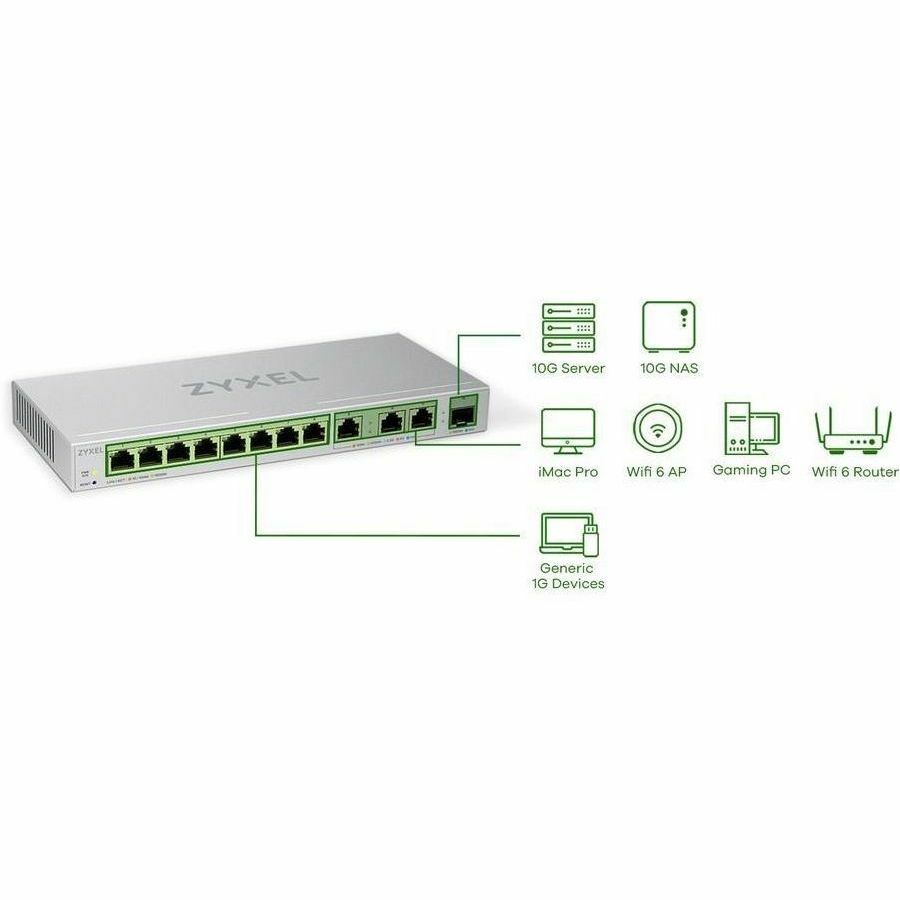

XS1250-12 features with three Multi-Gigabit ports supporting up to 10G and one additional 10G fiber port on top of the two 10G copper ports provided by the other vendors. With our additional fiber port and 10G connectivity boost the flexibility to adopt more 10G devices in your daily work.
Why Multi-Gigabit?
Increasing new applications raise the demand for higher network speed requirement. The Multi-Gigabit RJ-45 ports provide more speed options for your network. Before upgrading the network, you should figure out network speed of motherboard, PC, or WiFi 6 AP, and you need to pick up the right network cable to achieve the maximum speed.
Using Your Current Cabling Is Fine!
The Multi-Gigabit support is able to leverage existing Cat 5e cable infrastructure to upgrade network speed up to 5 times for cost efficient network setup.
Whisper-silent, Energy-saving at Work
The built-in smart fan is designed to automatically adjust speeds based on the device's temperature; you can barely hear the sound while the switch is in operation. Also, the Energy Efficient Ethernet function is able to detect network traffic and adjusts power consumption dynamically to reduce business operating expenses.
Easy Web Management
The XGS1250-12 comes with essential features including VLAN, QoS, IGMP snooping v1/v2 and v3 compatible, link aggregation, and port mirroring which are configurable through a user-friendly web-based interface. It's the most ideal solution to simplify networks for home and small office users.
| General Information | |
| Manufacturer | ZYXEL Communications Corp. |
| Manufacturer Part Number | XGS1250-12 |
| Manufacturer Website Address | http://www.us.zyxel.com |
| Brand Name | ZYXEL |
| Product Name | 12-Port Web-Managed Multi-Gigabit Switch Includes 3-Port 10G and 1-Port 10G SFP+ |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 11 |
| Modular | Yes |
| Network (RJ-45) | Yes |

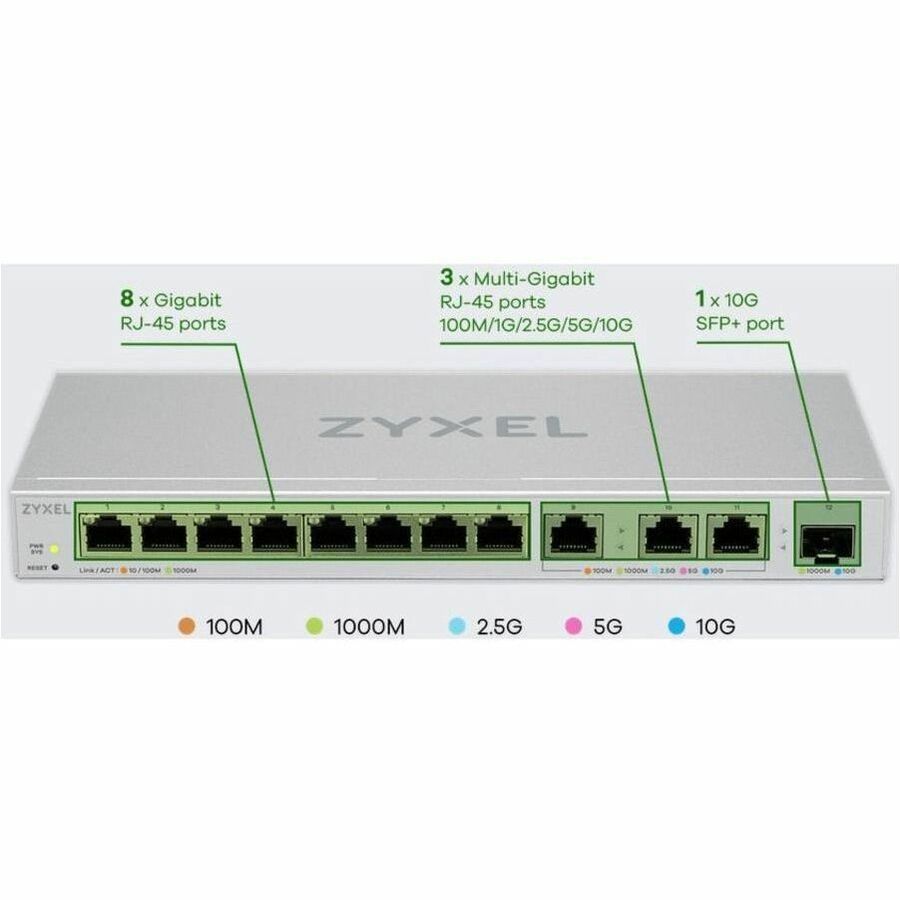

| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 1 x 10 Gigabit Ethernet Expansion Slot |
| Port/Expansion Slot Details | 3 x 10 Gigabit Ethernet Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10GBase-T |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 10GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 1.0 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 1 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3ae |
| Networking Standards | IEEE 802.3 |
| Networking Standards | IEEE 802.3u |
| Networking Standards | IEEE 802.3x |
| Networking Standards | IEEE 802.3az |
| Networking Standards | IEEE 802.3ab |
| Networking Standards | IEEE 802.3an |
| Networking Standards | IEEE 802.1p |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Power Source | Power Adapter |
| Physical Characteristics | |
| Height | 1.1" |
| Width | 9.8" |
| Depth | 4.1" |
| Weight (Approximate) | 1.73 lb |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
