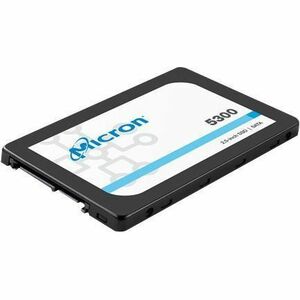

LENOVO 4XB7A17182 2.5 5300 240GB EN SSD TL
Mfg Part Number: 4XB7A17182 , Item #: 4394526
, PO and Wire.
The 5300 Entry SATA solid-state drives (SSDs) are new SSDs for ThinkSystem servers. The drives use Micron 96-layer 3D NAND flash memory technology with a SATA 6Gbps interface and provide an affordable solution for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics.
The 5300 Series of SATA SSDs are the follow-on to the 5200 line of SSDs. The two series share the same controller, firmware, interface and features. The key difference is that the 5300 Series uses a new 96-layer 3D NAND storage medium compared to the 64-layer technology in the 5200. The 5300 drives have higher endurance and lower latency compared to the 5200 SSDs. Lenovo also offers high-performance self-encrypting drives (SEDs) in the 5300 Series. These SSDs adhere to the Trusted Computing Group Enterprise Security Subsystem Class cryptographic standard (TCG Enterprise SSC).
| General Information | |
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 4XB7A17182 |
| Manufacturer Website Address | http://www.lenovo.com/us/en/ |
| Brand Name | Lenovo |
| Product Series | 5300 |
| Product Name | 5300 Entry 6Gb SATA SSDs |
| Product Type | Solid State Drive |
| Technical Information | |
| Storage Capacity | 240 GB |
| Encryption Standard | 256-bit AES |
| Drive Performance | |
| Maximum Read Transfer Rate | 540 MB/s |
| Maximum Write Transfer Rate | 310 MB/s |
| Random 4KB Read | 67000IOPS |
| Random 4KB Write | 40000IOPS |
| Endurance (DWPD) | 1.5 |
| Endurance (TBW) | 657 TB |
| Interfaces/Ports | |
| Drive Interface | SATA |
| Drive Interface Standard | SATA/600 |
| Physical Characteristics | |
| Drive Type | Internal |
| Form Factor | 2.5" |
| Height | 0.3" |
| Width | 2.8" |
| Depth | 3.9" |
| Weight (Approximate) | 2.47 oz |
| Miscellaneous | |
| Device Supported | Server |
