TAOGLAS MA1270.A.LBICGTY.005 7-IN-1 SHARK FIN STYLE COMBINATION ANTENNA WITH WHIPTAIL GNSS, 2X5G/4G MIMO, 2XW

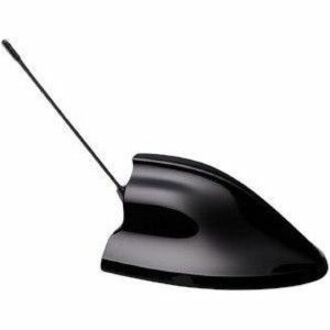

The Taoglas Raptor III MA1270 is a high performance 7-in-1 Shark Fin style combination antenna. It provides multiple antenna connections in a sleek, covert enclosure and is suitable for all automotive and commercial trucking applications. The Raptor III has been engineered to be mounted directly on the vehicle roof and is supplied with 3m cables and SMA connectors as standard.

The Raptor III is designed to combine active GNSS (GPS/GLONASS/BeiDou/Galileo), 2 x 5G/4G Cellular MIMO, 2 x Dual-Band Wi-Fi MIMO, Active AM/FM and TETRA antennas in a small, robust, IP67 rated enclosure. The whip antenna attached to the rear of the enclosure covers the TETRA bands used for specialist communication systems such as public safety and first responders.

The cellular antennas in the Raptor III cover all 4G, and the new Sub 6GHz 5G cellular bands offering efficiencies of up to 80%. Fallback to 3G and 2G bands are possible where 5G and 4G is not accessible. The high performing Wi-Fi antennas cover both the 2.4GHz and 5.8GHz Wi-Fi bands. The whip antenna covers the Terrestrial Trunked Radio (TETRA) bands between 380 - 470MHz as standard and can be customized for other communication frequency bands. It is connected via a threaded M6 Female connector to the M6 male connector on the enclosure. Low loss 1.5DS cables are used that can allow for longer cable installations if required.

The Raptor III has a robust, impact-resistant, UV resistant, PC enclosure and is easy to install. It requires just one single M20 hole, unlike many other vehicle mount solutions currently on the market that require multiple mounting holes. This single hole mounting substantially reduces installation time & cost and reduces damage to the vehicle.

Typical Applications Include:

• Transportation and Fleet Management
• Autonomous Driving and Robotics
• First Responders and Emergency Services

The cables, connectors and whip are fully customizable. For further information or installation instructions contact your regional Taoglas customer support team.
