THERMALTAKE
THERMALTAKE CL-P074-AL12BL-A TOUGHAIR 310 170W TDP CPU COOLER
Mfg Part Number: CL-P074-AL12BL-A , Item #: 4387141
, PO and Wire.

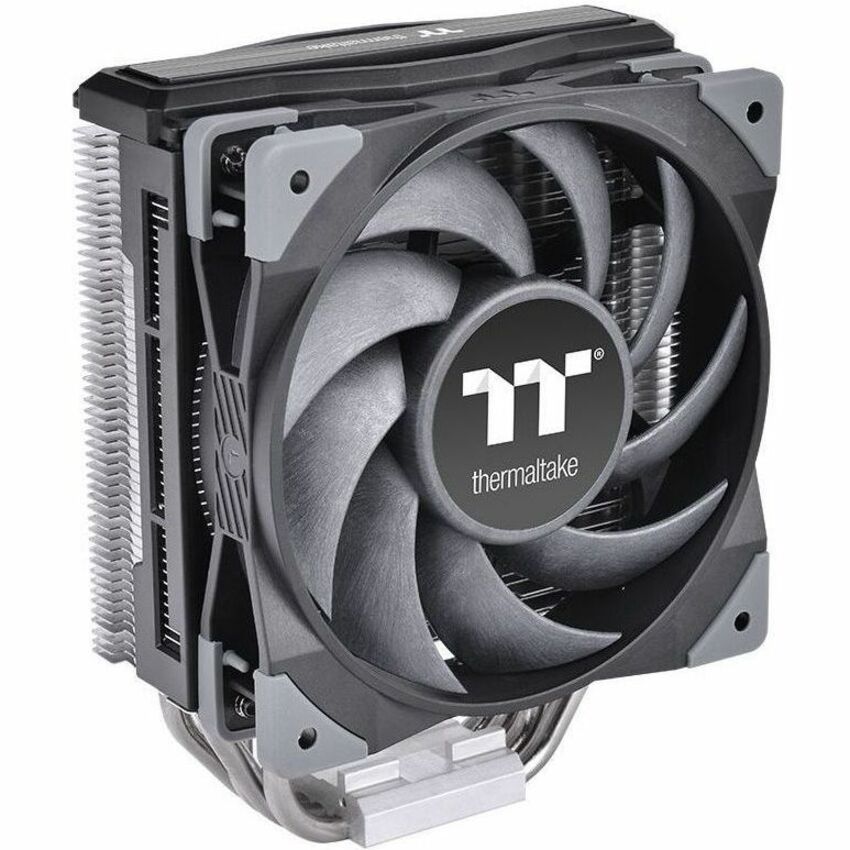

A single tower designed CPU cooler equipped with an optimized 120 mm high static pressure fan and newly designed heat sink, which guarantees its outstanding performance.
Single Tower Dual Fan Design
TOUGHAIR 310 is a single tower designed air cooler with 4 heat pipes running through the fins, the U-shape heat pipes increase heat circulation creating better heat dissipation in your system and supports up to 170W.

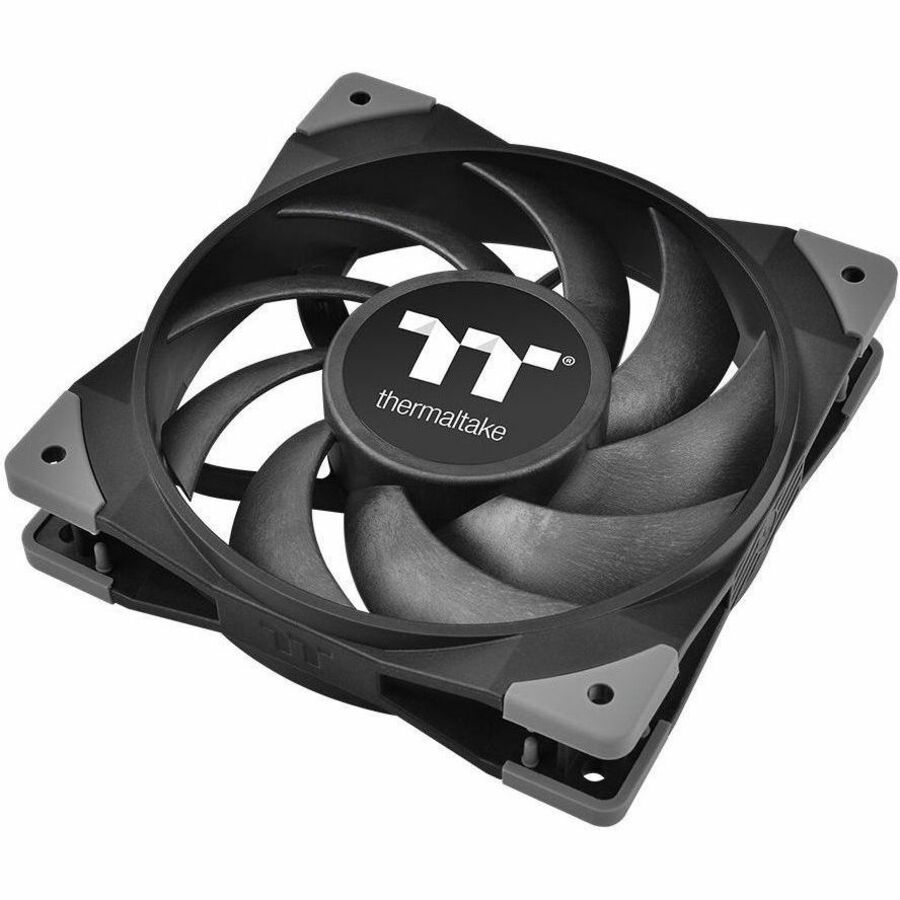

Enhanced 120 mm high static pressure Fan
TOUGHAIR series utilizes high static pressure fans, which leverages the TOUGHFAN 12 design and boosts the fan speed to 2000 RPM, providing a new level of cooling performance to our CPU cooler.

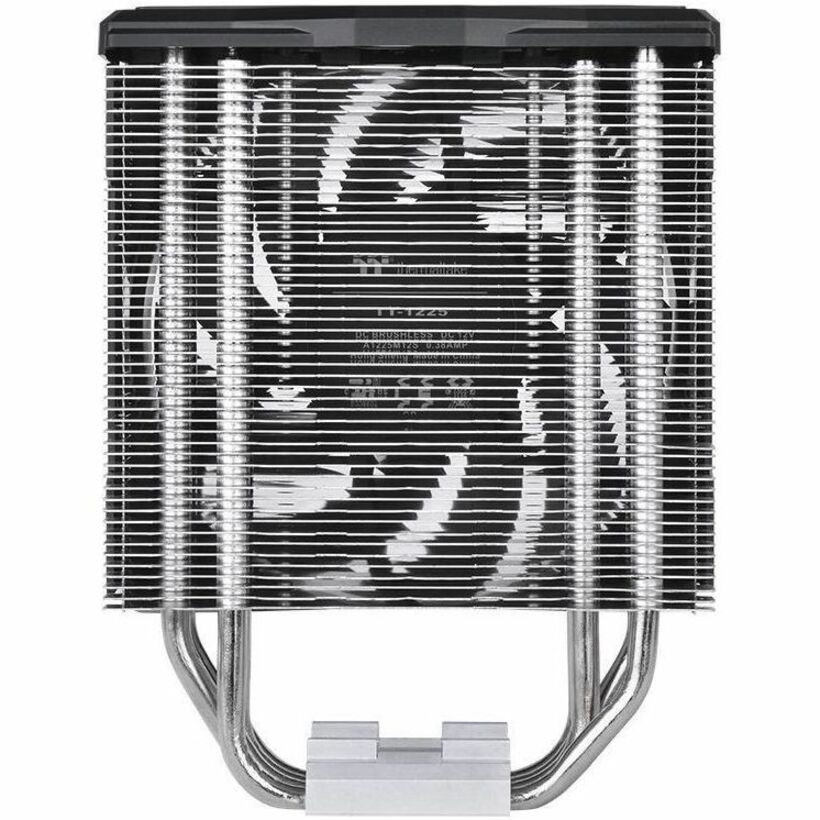

Asymmetric Fin Structure
The fin is designed with an asymmetric structure that allows larger air intake through the fins. This design lowers the air turbulence and straightens out the airflow making it easier to disperse heat from the fins, delivering superb cooling performance.

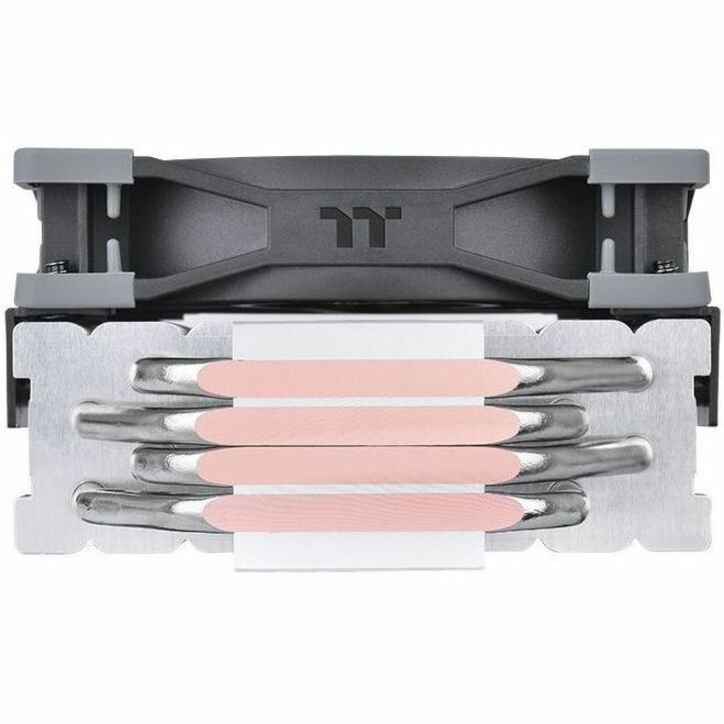

High-Performance U-shape copper heat pipes
4 x Ø6 mm heat pipes directly touch the CPU and thermal paste. The U-shape design creates perfect circulation for better CPU cooling performance.

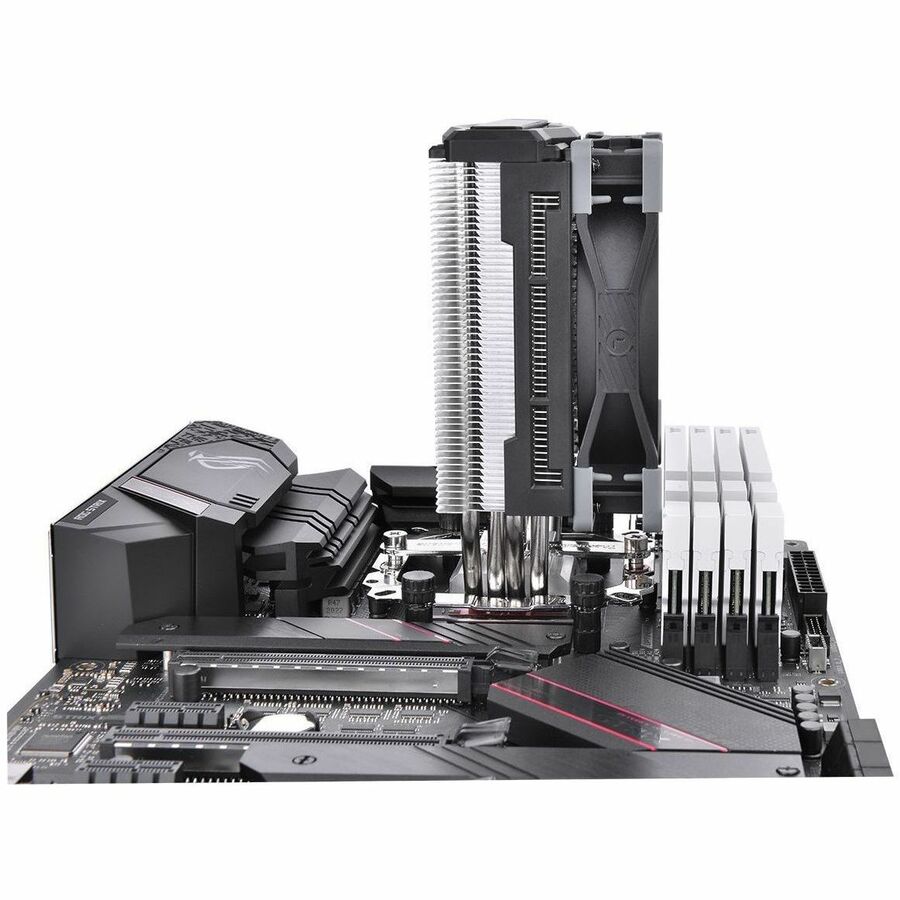

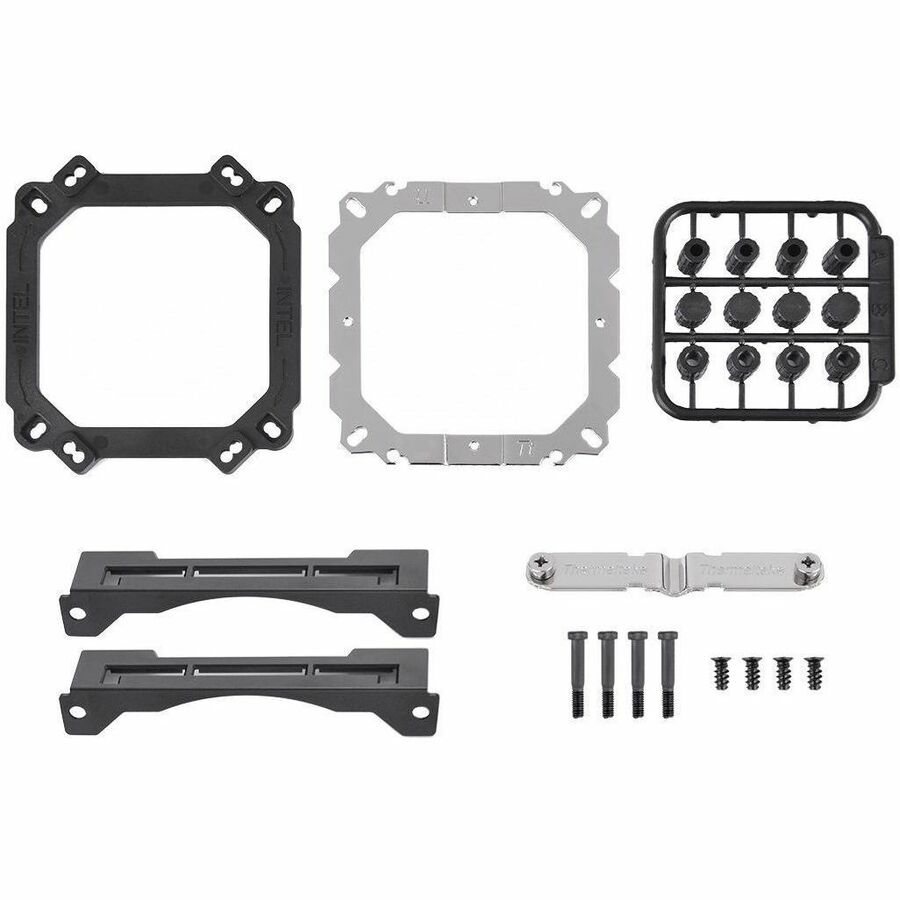

Universal Compatibility
TOUGHAIR Series are designed to fit Intel and AMD sockets including the following models:
Intel LGA 1200/1156/1155/1151/1150
AMD AM4/AM3+/AM3/AM2+/AM2/FM2/FM1
| General Information | |
| Manufacturer | Thermaltake Technology Co., Ltd |
| Manufacturer Part Number | CL-P074-AL12BL-A |
| Manufacturer Website Address | http://www.thermaltakeusa.com |
| Brand Name | Thermaltake |
| Product Line | TOUGHAIR 310 |
| Product Name | TOUGHAIR 310 CPU Cooler |
| Product Type | Cooling Fan/Heatsink |
| Fan Information | |
| Number of Fans | 1 |
| Fan Speed (Min) | 500 rpm |
| Fan Speed (Max) | 2000 rpm |
| Maximum Airflow | 58.35 CFM |
| Noise Levels (A-Weighted) | 23.6 dB(A) |
| Fan Life | 4.6 Year |
| Maximum Air Pressure | 2.41mmH2O |
| Heatsink Information | |
| Cooler Type | Air |
| Compatible Intel Socket | LGA-1200 |
| Compatible Intel Socket | H3 LGA-1150 |
| Compatible Intel Socket | H LGA-1156 |
| Compatible Intel Socket | H2 LGA-1155 |
| Compatible Intel Socket | LGA-1700 |
| Compatible Intel Socket | H4 LGA-1151 |
| Compatible AMD Socket | AM2+ PGA-940 |
| Compatible AMD Socket | AM3 PGA-941 |
| Compatible AMD Socket | AM3+ |
| Compatible AMD Socket | FM1 |
| Compatible AMD Socket | FM2 |
| Compatible AMD Socket | AM2 PGA-940 |
| Compatible AMD Socket | AM4 |
| Interfaces/Ports | |
| Connectors | 4 Pin |
| Power Description | |
| Rated Current | 480 mA |
| Physical Characteristics | |
| Product Color | Silver |
| Product Color | Black |
| Heatsink Material | Aluminum |
| Heatsink Material | Copper |
| Maximum Fan Diameter | 4.72" |
| Fan Height | 0.98" |
| Fan Width | 4.72" |
| Height | 6.3" |
| Width | 2.8" |
| Miscellaneous | |
| Application/Usage | Processor |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 2 Year |
