FLUKE
FLUKE-377 FC Wireless Current Clamp Meter, Noncontact, 1000A, AC/DC, w/IFLEX,
Mfg Part Number: FLUKE-377 FC , Item #: 4386792
, PO and Wire.

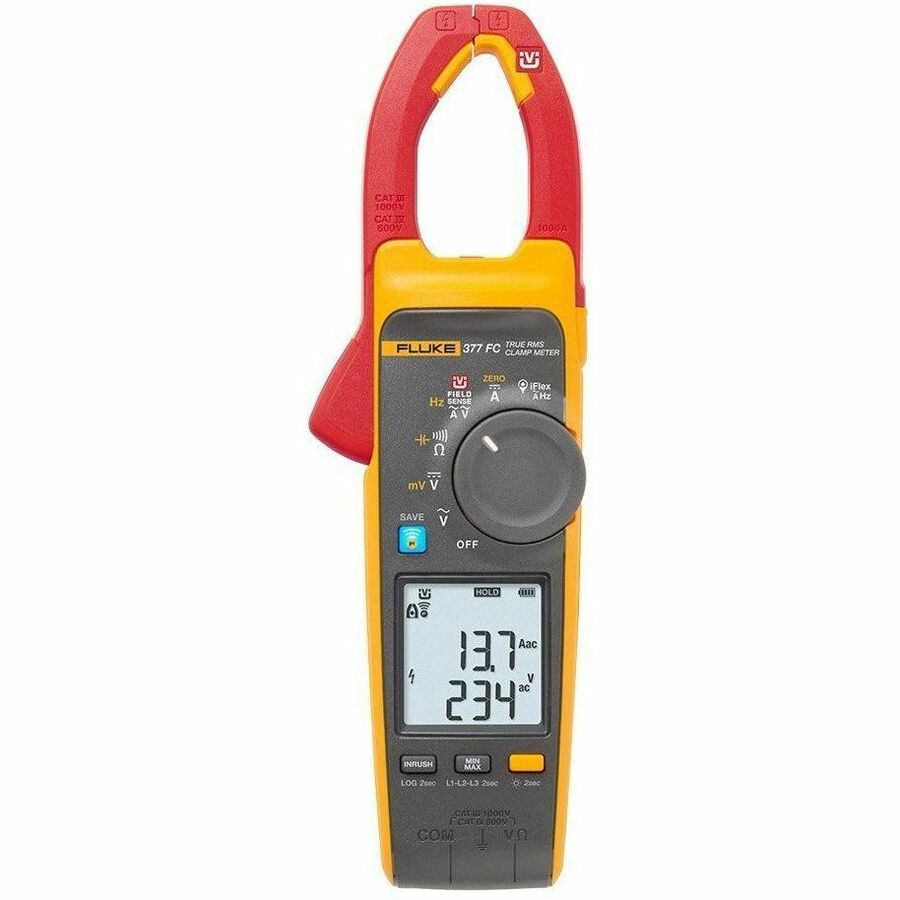

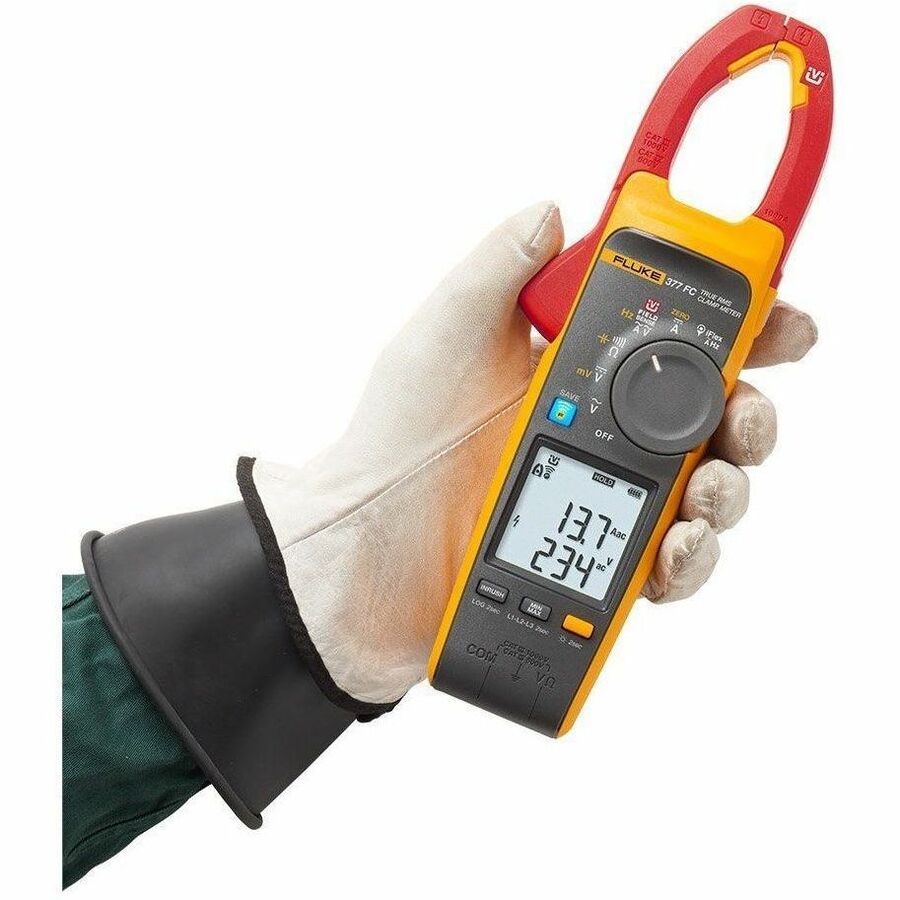

Product overview: Fluke 377 FC Non-Contact Voltage True-rms AC/DC Clamp Meter with iFlex | Voltage and current measurements with FieldSense™ technology
The Fluke 377 FC true-rms clamp meter uses FieldSense™ technology to make testing faster and safer, all without contacting a live conductor. You get accurate voltage and current measurements through the clamp jaw. Simply clip the black test lead to any electrical ground, put the clamp jaw around the conductor and see reliable, accurate voltage and current values on the display.
Measure extremely high current with iFlex® probe
Use the included iFlex flexible current probe to measure ac current as high as 2500 A. The iFlex probe provides access to large conductors in tight spaces.
Complete 3-phase measurements in quick, easy steps
- Complete 3-phase voltage and current tests in 3 easy steps
- Full set of phase-to-ground and phase-to-phase values calculated and shown on the meter
- Values are also displayed on your smart phone and saved to the cloud via Fluke Connect software
- Phase rotation auto-calculated and shown on the Fluke Connect software
- No more hand-written notes or complicated math.
Easy to see, easy to use with included tools
Your job will get easier when you use the 377 FC clamp meter. The display turns green when a stable FieldSense measurement is detected. Visual Continuity also provides a bright green screen for easy detection of continuity in noisy work areas.
Record, analyze, share results with Fluke Connect® software
With Fluke Connect software you can remotely log, trend and monitor measurements to pinpoint intermittent faults. Fluke Connect also allows you to gather data as the basis for a preventive maintenance program.
| General Information | |
| Manufacturer | Fluke Corporation |
| Manufacturer Part Number | FLUKE-377 FC |
| Manufacturer Website Address | http://www.fluke.com |
| Brand Name | Fluke |
| Product Model | 377 FC |
| Product Name | 377 FC Non-Contact Voltage True-RMS AC/DC Clamp Meter |
| Product Type | Clamp Meter |
| Technical Information | |
| Measurement Type | Frequency |
| Measurement Type | AC Voltage |
| Measurement Type | AC Current |
| Measurement Type | Resistance |
| Measurement Type | DC Current |
| Measurement Type | Capacitance |
| Measurement Type | DC Voltage |
| True RMS | Yes |
| Maximum AC Voltage Measurement | 1000 V |
| Maximum DC Voltage Measurement | 1000 V |
| Maximum AC Current Measurement | 999.90 A |
| Maximum DC Current Measurement | 999.90 A |
| Maximum Resistance Measurement | 60 Kilo Ohm |
| Maximum Capacitance Measurement | 0.001F |
| Maximum Frequency Measurement | 66 Hz |
| Jaw Size | 1.34" |
| Application/Usage | Electrical |
| Physical Characteristics | |
| Height | 1.9" |
| Width | 3.4" |
| Depth | 10.8" |
| Weight (Approximate) | 1.02 lb |
| Miscellaneous | |

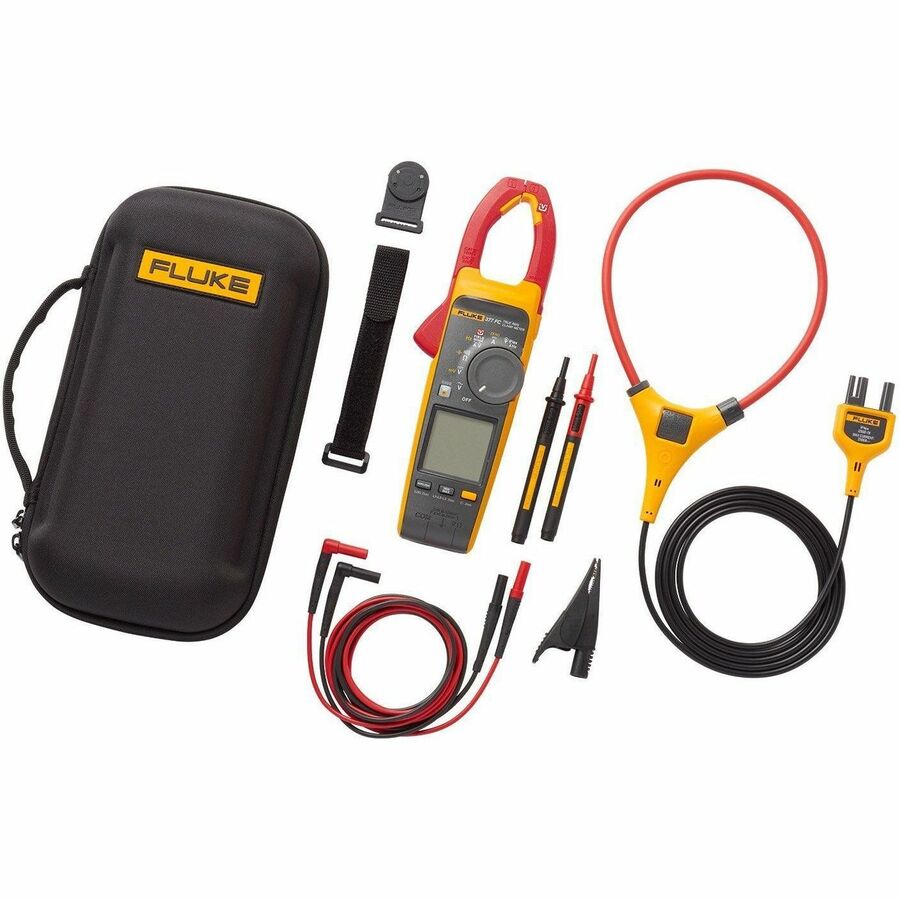

| Package Contents |
|
Carrying Cases
Miscellaneous Devices
Miscellaneous Kits
