ZyXEL

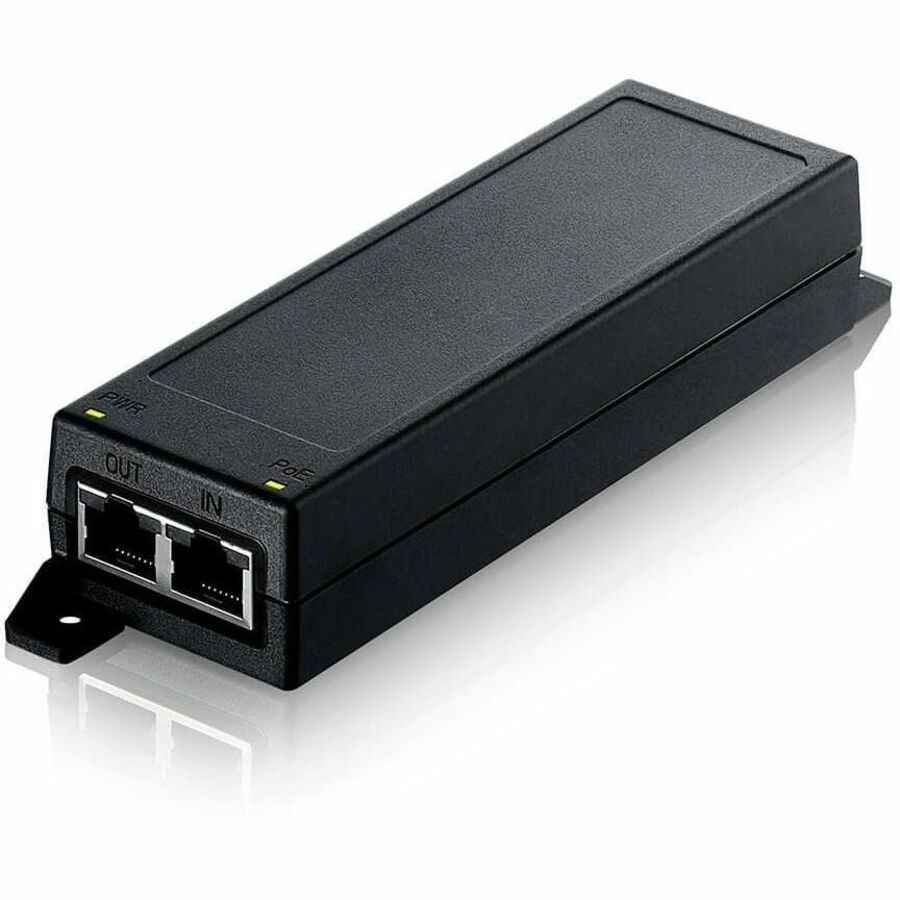

ZyXEL POE12-30W POE+ 30 WATT INJECTOR

Mfg Part Number:  POE12-30W
Image may not reflect the actual item.
Price: $57.25
Quantity:
In Stock: 15
Last Updated: Jun 29, 2025
No Sales Tax except these states
, PO and Wire.

Higher Network Speed Boosts Network Performance

Zyxel PoE injectors are here to meet the increasing demand for connections to high-speed networking devices such as WiFi 7 and WiFi 6 APs, surveillance PTZ cameras, and advanced POS terminals. The PoE12-30W supports network speeds of up to 2.5Gbps, while both the PoE12-60W* and PoE12-90W support network speeds of up to 10Gbps.

Larger Power Budget Powers More PD Devices

The PoE12-30W complies with the IEEE 802.3at PoE+ standard, while the PoE12-60W and PoE12-90W comply with the IEEE 802.3bt PoE++ standard to provide PoE power budgets of up to 30W, 60W, and 90W, respectively. They ensure interoperability and compatibility with other standard-based PoE-capable devices.

Easy to Use with Robust Protection

These three PoE injectors make it easy to connect network devices without any configuration. The wall-mount and desktop designs accommodate most installation scenarios. They have overload and short circuit protection, which shuts down the power immediately if those issues occur, leaving no damage to your equipment.

Main Specification
General Information
Manufacturer ZYXEL Communications Corp.
Manufacturer Part Number POE1230W
Manufacturer Website Address http://www.us.zyxel.com
Brand Name ZYXEL
Product Series PoE12
Product Model PoE12-30W
Product Name 2.5G PoE+ Injector
Product Type PoE+ Injector
Technical Information
Protection Type Overload Protection
Protection Type Short Circuit
Power Description
Input Voltage 230 V AC
Input Voltage 120 V AC
Maximum Input Current 1 A
Maximum Frequency 60 Hz
Maximum Output Power 30 W
Interfaces/Ports
Input Ports 1 x 2.5 Gigabit Ethernet
Output Ports 1 x 2.5 Gigabit PoE+
Physical Characteristics
Form Factor Desktop/Wall Mountable
Height 1.2"
Width 5.5"
Depth 1.8"
Weight (Approximate) 5.08 oz
Miscellaneous
Package Contents
  • 2.5G PoE+ Injector
  • Power Cord
Compatibility

Zyxel Products:

  • WBE530
  • NWA130BE
  • WAX620D-6E
  • NWA220AX-6E
  • WAX610D
  • WAX510D
  • NWA210AX
  • Certifications & Standards
  • IEEE 802.3u 100BASEX
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3bz 2.5GBASE-T
  • Environmentally Friendly Yes
    Country of Origin China
    WARNING:: The plastic used in cable products can expose you to lead and lead components, chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov
