ADAPTEC PDS-408G/AC-US POE SWITCH CEILING

Digital Ceiling is reshaping enterprises as the revolutionary PoE-based lighting system creates a new breed of smart buildings where everything is connected into a vast Internet of Things (IoT). Microsemi Digital Ceiling Switch Paves the Way for Smart Buildings with Enterprise IoT.

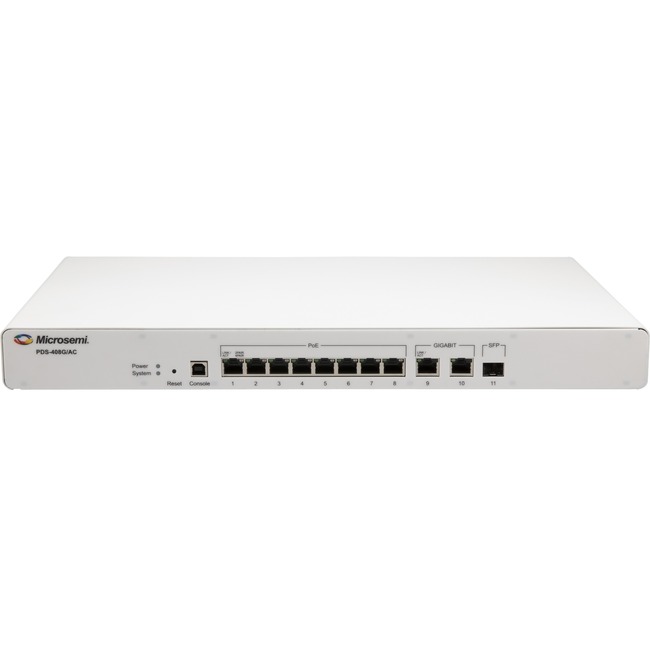

The Microsemi PDS-408G digital ceiling PoE switch offers an optimal and cost-effective solution for PoE application like PoE lighting and other digital ceiling applications. It allows lighting fixtures and other Ethernet terminals to receive power, along with data, over standard Ethernet cables in the most efficient way. The PDS-408G is a 480W fan-less switch, designed to be deployed in the ceiling or in communications rooms. Provides automatic output PoE power based on PoE PD device class. It supports full power mode by providing 60W for all 8 ports simultaneously and any specific port can go up to 90W.

The 480W high-speed switch can be managed over Web, SSH, Telnet, CLI. It has 8 ports of 10/100/1000 Mbps (Gigabit Ethernet) with PoE BT ports, 2 Gigabit ports and one 1000M/100M SFP port.

Features:

• Digital ceiling PoE Switch : 8 PoE 10/100/1000mbps ports + 3 10/100/1000mbps uplink ports
• Total available PoE power : 480W
• IEEE802.3bt compliant
• Supports legacy 60/90W PoE devices
• Full power of 8 x 60W - any individual port can go up to 90W
• Fanless design - enhanced reliability and silent operation
• High energy efficiency - very low power consumption in standby and in operation
• Layer 2 switch - including 802.1Q-based VLANs enables segmentation of networks for improved performance and security
• Remote management - Web and SNMP
