ALLIED TELESIS

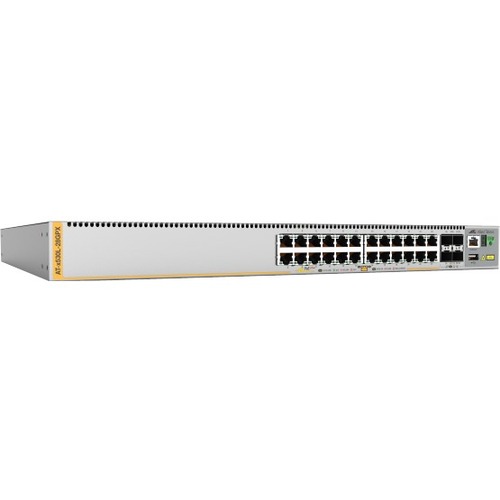

ALLIED TELESIS AT-X530L-28GPX-90 L3 STACKABLE SWITCH 24X 10/100/1000-T POE+ 4X SFP+ PORTS A
Mfg Part Number: AT-X530L-28GPX-90 , Item #: 4376013
Image may not reflect the actual item.
Price: $4,868.61
+ Free Shipping
Quantity:
More to Come
Last Updated: May 01, 2025
No Sales Tax except these states
, PO and Wire.
The TAA Compliant x530L-28GPX stackable Gigabit Layer 3 switch is high-performing and feature-rich, with 24 x 10M/100M/1G PoE+ ports, and 4 x 10G uplinks.
Main Specification
| General Information | |
| Manufacturer | Allied Telesis, Inc |
| Manufacturer Part Number | AT-X530L-28GPX-90 |
| Manufacturer Website Address | http://www.alliedtelesis.com |
| Brand Name | Allied Telesis |
| Product Series | x530L |
| Product Model | X530L-28GPX |
| Product Name | X530L-28GPX Layer 3 Switch |
| Product Type | Layer 3 Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Uplink Port | Yes |
| Modular | Yes |
| Stack Port | Yes |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Expansion Slot |
| Port/Expansion Slot Details | 2 x Stack |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet PoE+ |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10GBase-X |
| Network Technology | 10/100/1000Base-T |
| I/O Expansions | |
| Total Number of Expansion Slots | 4.0 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3af |
| Networking Standards | IEEE 802.3u |
| Networking Standards | IEEE 802.1s |
| Networking Standards | IEEE 802.1v |
| Networking Standards | IEEE 802.3x |
| Networking Standards | IEEE 802.3az |
| Networking Standards | IEEE 802.1x |
| Networking Standards | IEEE 802.1ag |
| Networking Standards | IEEE 802.1w |
| Networking Standards | IEEE 802.3ae |
| Networking Standards | IEEE 802.3ac |
| Networking Standards | IEEE 802.3at |
| Networking Standards | IEEE 802.3ab |
| Networking Standards | IEEE 802.1ad |
| Networking Standards | IEEE 802.1D |
| Networking Standards | IEEE 802.1ab |
| Networking Standards | IEEE 802.3bt |
| Networking Standards | IEEE 802.3bz |
| Networking Standards | IEEE 802.3ad |
| Networking Standards | IEEE 802.3z |
| Networking Standards | IEEE 802.1Q |
| Networking Standards | IEEE 802.1p |
| Networking Standards | IEEE 802.2 |
| Networking Standards | IEEE 802.3 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 740 W |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Power Source | Power Supply |
| Number of Power Supplies Installed | 2 |
| Power Consumption | 70 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 17.4" |
| Depth | 16.6" |
| Weight (Approximate) | 13.67 lb |
| Miscellaneous | |
| Package Contents |
|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
