ALOGIC USA DUPRDX3-WW ALOGIC TRIPLE 4K DISPLAY USB-C UNIVERSAL DOCKING STATION-100W PD
Mfg Part Number: DUPRDX3-WW , Item #: 4364391
, PO and Wire.
A Universal Dock- The DX3 docking station provides universal compability across Windows,Mac and Chrome Computers.
USB-C & USB-A LAPTOP COMPATIBLE- IT decision-makers and organisations have more options with the DX3. It supports USB-C and USB-A laptop deployment.

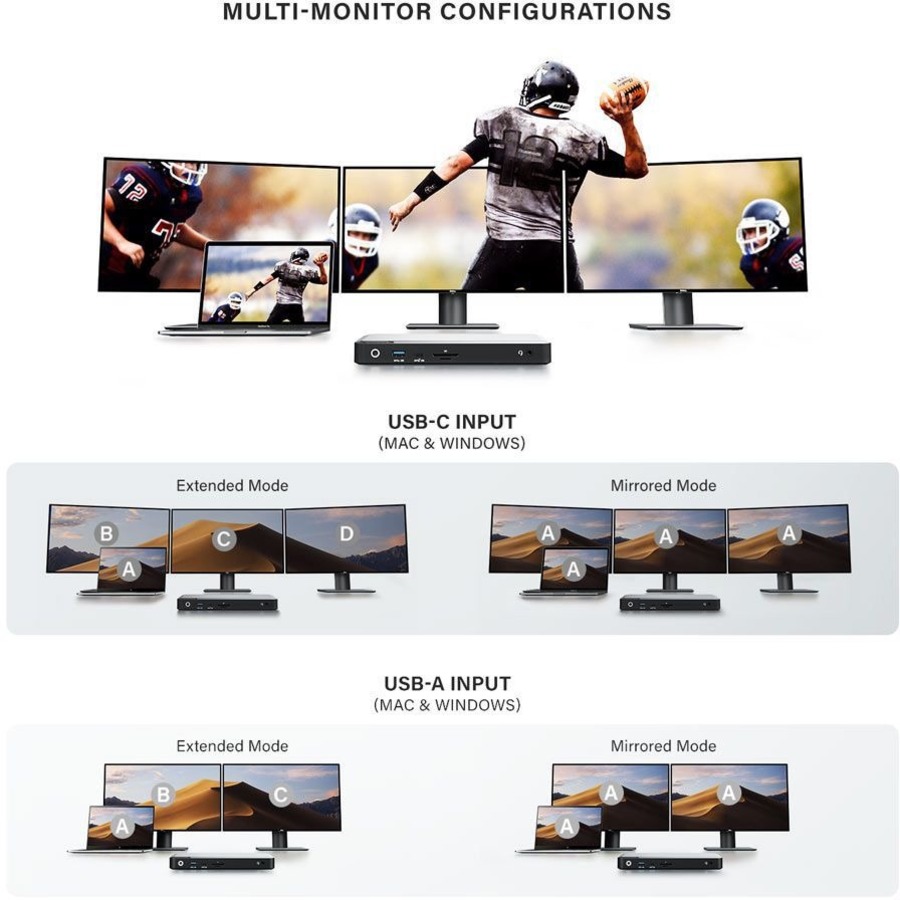

DUAL/TRIPLE DISPLAY ON M1 MAC- M1 Mac users can work on up to three screens when they plug into the DX3.
MADE WITH DISPLAYLINK- The DX3's DisplayLink technology boosts your connectivity, power and productivity at work.
11 HIGH-PERFORMANCE PORTS- Port 1- USB-A 3.1 Gen 1 (5G) BC 1.2 & Apple Charging Support connects with older laptops and charges Apple device
Port 2- USB-C 3.1 Gen 2 (10G) BC 1.2 & Apple Charging Support connects with modern laptops and charges Apple devices
Port 3- Micro SD Card Reader (SD 4.0) for speedier downloads
Port 4- SD Card Reader (SD 4.0) for speedier downloads
Port 5-3.5mm TRRS Audio/Microphone Jack supports quality recording and playback
Port 6- RJ45 Ethernet 1 Gbps for speedy data transfer
Port 7- DisplayPort (DP1.4/DP++) for generous bandwidth data transmission
Port 8- DisplayPort (DP1.4/DP++) for generous bandwidth data transmission
Port 9- DisplayPort (DP1.4/DP++) for generous bandwidth data transmission
Port 10- USB-A 3.1 Gen1 (5G) works with older laptops
Port 11- USB-A 3.1 Gen1 (5G) works with older laptops
| General Information | |
| Manufacturer | Alogic |
| Manufacturer Part Number | DUPRDX3-WW |
| Manufacturer Website Address | http://www.alogic.co |
| Brand Name | Alogic |
| Product Model | DX3 |
| Product Name | DX3 Docking Station |
| Packaged Quantity | 1 |
| Product Type | Docking Station |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Displays Supported | 3 |
| Screen Mode Supported | HD |
| Memory Card Reader | Yes |
| Memory Card Supported | SD |
| Device Supported | Notebook |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Host Interface | USB Type C |
| Number of USB 3.1 Gen 1 Type-A Ports | 3 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB-C 3.1 Gen 2 (10G) BC 1.2 and Apple Charging Support |
| Number of USB Type-A Ports | 3 |
| USB Type-A | Yes |
| Number of RJ-45 Ports | 1 |
| Network (RJ-45) | Yes |
| Number of DisplayPorts | 3 |
| DisplayPort | Yes |
| Headphone/Microphone Combo Port | Yes |
| Power Description | |
| Maximum Power Supply Wattage | 100 W |
| Physical Characteristics | |
| Product Color | Space Gray |
| Product Color | Black |
| Height | 0.26" |
| Width | 7.48" |
| Depth | 3.54" |
| Weight (Approximate) | 1.18 lb |
| Miscellaneous | |

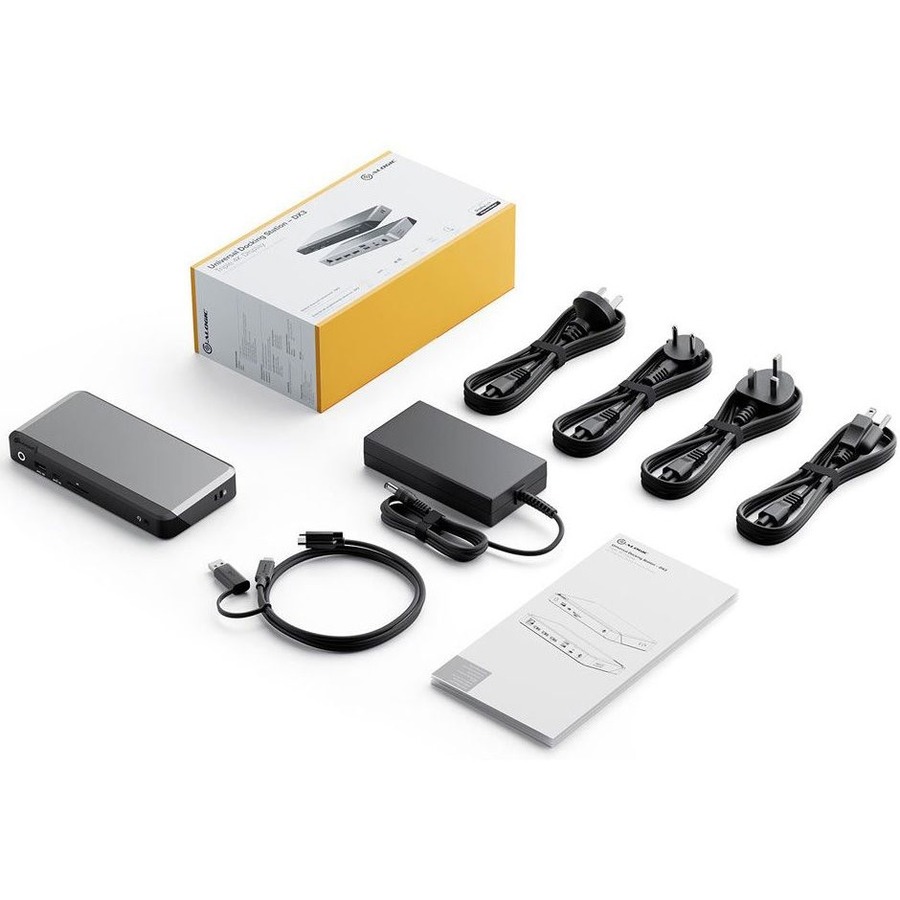

| Package Contents |
|
| Compatibility | Google Chromebook |
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 2 Year |
