HANWHA TECHWIN

HANWHA TECHWIN SPM-4210 NETWORK I/O BOX FOR PTZ PLUS, 4-CONFIGURABLE I/O PORTS, AUDIO I/O, POE. COMPATIB

Mfg Part Number:  SPM-4210
Image may not reflect the actual item.
Price: $225.57 + Free Shipping
Quantity:
More to Come
Last Updated: Jun 24, 2025
No Sales Tax except these states
, PO and Wire.

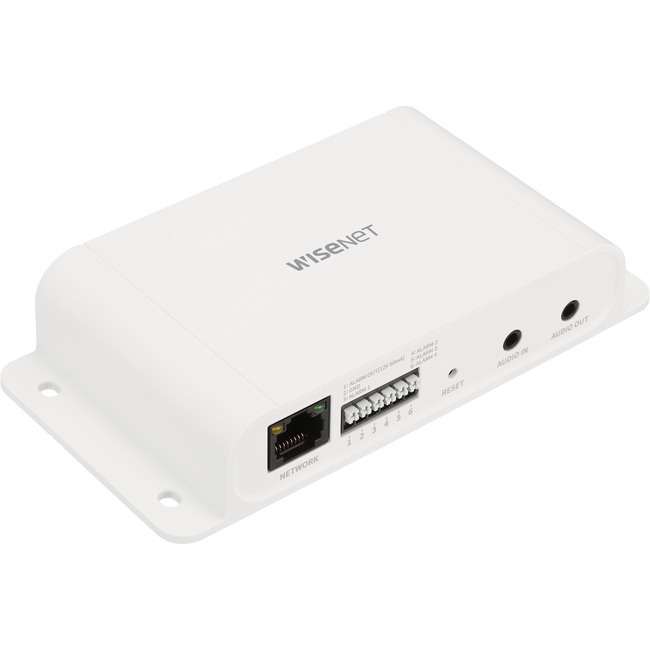

The SPM-4210 is an accessory for Wisenet PTZ Plus cameras. The Network I/O Box provides 4-configurable I/O ports & Audio I/O. It conveniently installs without requiring a direct connection to the camera. Powered by PoE. Compatible with:
XNP-9300RW / XNP-9250R / XNP-9250
XNP-8300RW / XNP-8250R / XNP-8250
XNP-6400RW / XNP-6400R / XNP-6400

Main Specification
General Information
Manufacturer Hanwha Group
Manufacturer Part Number SPM4210
Manufacturer Website Address http://www.hanwha.com
Brand Name Hanwha Techwin
Product Name SPM-4210 Network I/O Box
Product Type Surveillance Camera Alarm/Audio I/O Box
Technical Information
Device Supported PTZ Camera
Device Supported Fire Alarm
Features PoE
Features Plug-in Installation
Features Microphone
Physical Characteristics
Color Family White
Product Color White
Height 1.1"
Width 2.9"
Depth 5.6"
Weight (Approximate) 6.03 oz
Miscellaneous
Additional Information
  • Audio In: Selectable(microphone in/line in)
  • Audio Out: Line out, Maximum output level: 1Vrms
  • Ethernet: RJ-45 (10/100BASE-T)
  • Application Programming Interface: SUNAPI (HTTP API)
  • Webpage Language: Web Viewer English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
  • Web Viewer: Support, Plugin-free
  • Memory: 4GB RAM, Flash 256MB
  • Operating Temperature / Humidity: -40°C~+60°C(-40°F ~ +140°F) / Less than 95% RH(Non-condensing) Start up should be done at above -30°C
  • Storage Temperature / Humidity: -50°C~+60°C (-58°F~+140°F) / Less than 95% RH(Non-condensing)
  • Input Voltage: PoE(IEEE802.3af, Class3)
  • Power Consumption: Maximum 4.5W
  • RAL Code: RAL9003
  • Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, ICMP, ARP, DNS, LLDP
Alarm I/O:
  • Configurable 4 Ports
  • 12 V DC output, maximum load 50 mA
Audio Compression
  • G.711 u-law /G.726 Selectable
  • G.726(ADPCM) 8KHz, G.711 8KHz
  • G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
  • AAC-LC: 48Kbps at 16KHz
Security
  • HTTPS(SSL) Login Authentication
  • Digest Login Authentication
  • IP Address Filtering
  • User access log
  • 802.1X Authentication(EAP-TLS, EAP-LEAP)
  • Device Certificate(Hanwha Techwin Root CA)
Compatibility Hanwha Techwin Wiper PTZ Cameras:
  • 4K 30x IR XNP-9300RW
  • 4K 25x IR XNP-9250R
  • 4K 25x XNP-9250
  • 6MP 30x IR Wiper XNP-8300RW
  • 6MP 25x IR XNP-8250R
  • 6MP 25x XNP-8250
  • 2MP 40x XNP-6400RW
  • 2MP 40x XNP-6400R
  • 2MP 40x XNP-6400
product information
