THUNDERBOLT 4 ELEMENT HUB
The CalDigit Thunderbolt 4 Element Hub is the first of its kind, offering 4x the performance of traditional USB-C hubs, whilst harnessing the power of Thunderbolt 4 in order to create a device without compromises.
Every Element Hub workflow will be different from the next, bringing with it the potential for incredibly unique set-ups, only limited by your imagination.
Connect what you need, when you need.
A HUB LIKE NO OTHER
Up until this point, hubs have been restricted by their interface's performance, limiting their potential. The Element Hub, in combination with the power of Thunderbolt 4, has allowed us to create the most ambitious hub on the market.
The use of Thunderbolt 4 is the perfect interface for a device like this, as it brings with it a level of versatility not previously available through a hub.
ULTIMATE COMPATIBILITY
Of course the Element Hub is not only for Thunderbolt 4 users. This versatile device is backwards compatible with Thunderbolt 3, USB-C, and USB 4.
This means that the Element Hub will adapt to the connected host computer in order to provide the features available to you, making the Element Hub an ideal solution for multi-workflow environments.
In addition, the included Thunderbolt 4 cable is compatible with Thunderbolt 4, Thunderbolt 3, USB-C and USB 4 Type-C computers.
MADE FOR YOU
The beauty of the Element Hub's four Thunderbolt 4 ports allows you to create the device you want.

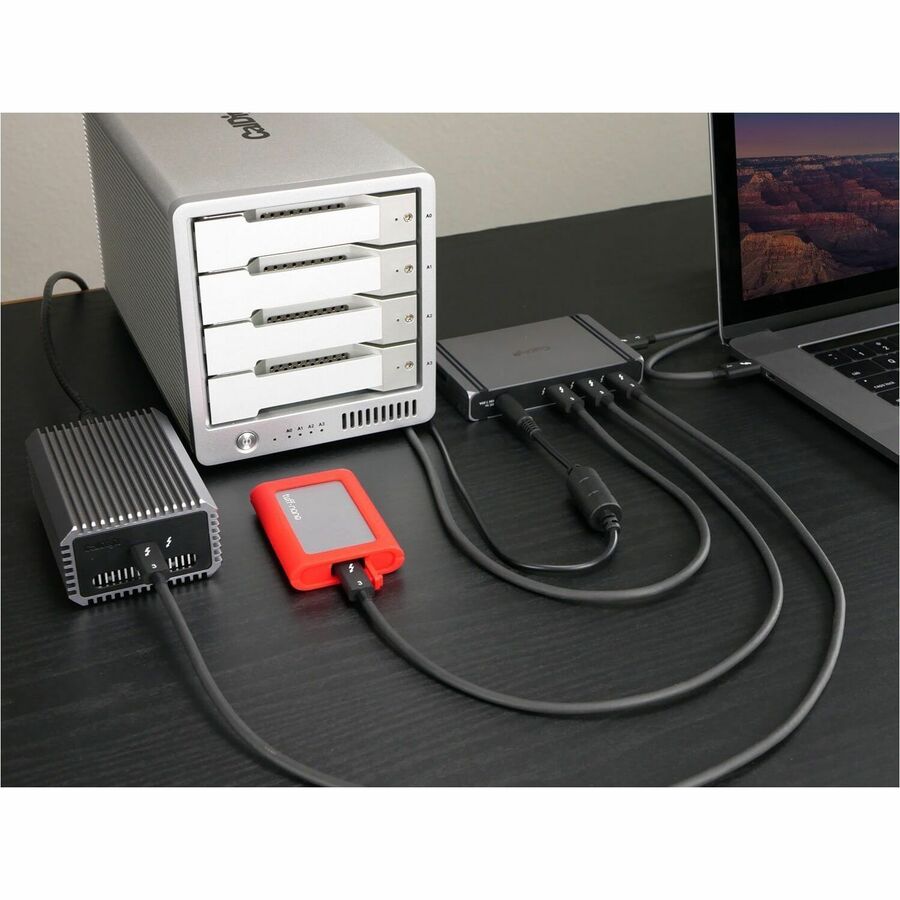

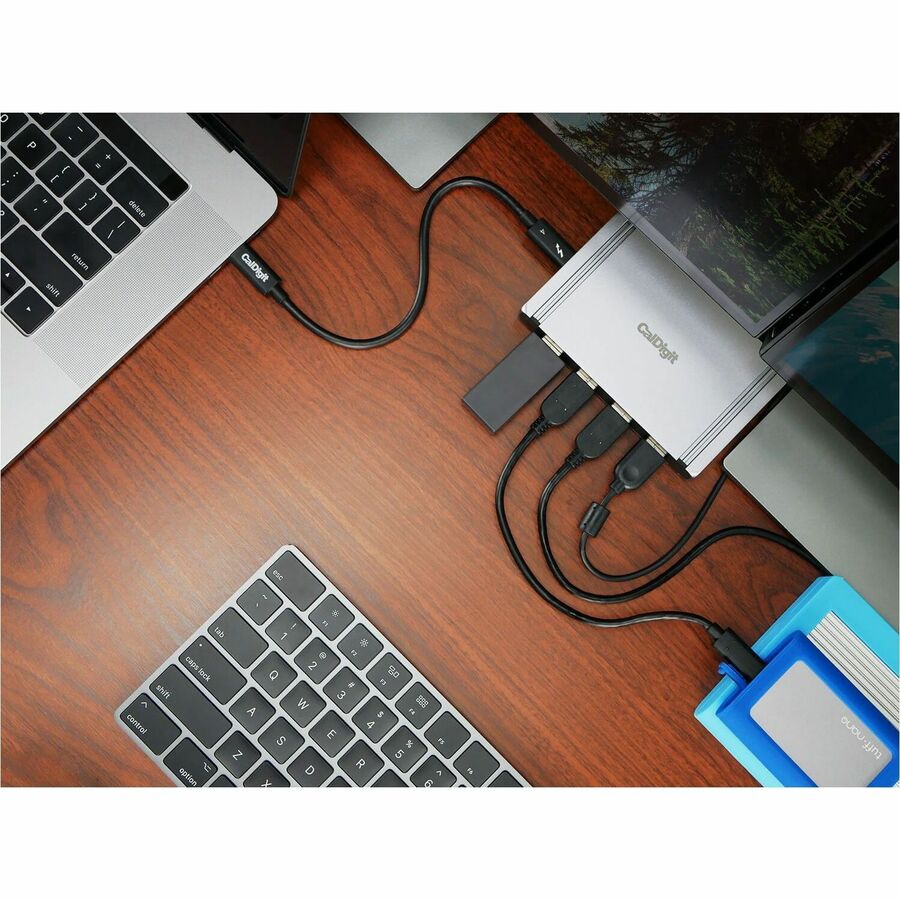

Need to connect multiple SSDs, SD card readers, RAID storage, dual 4K monitors? No problem.
The Element Hub is a blank canvas ready to be populated with the devices you need.
THUNDERBOLT 4

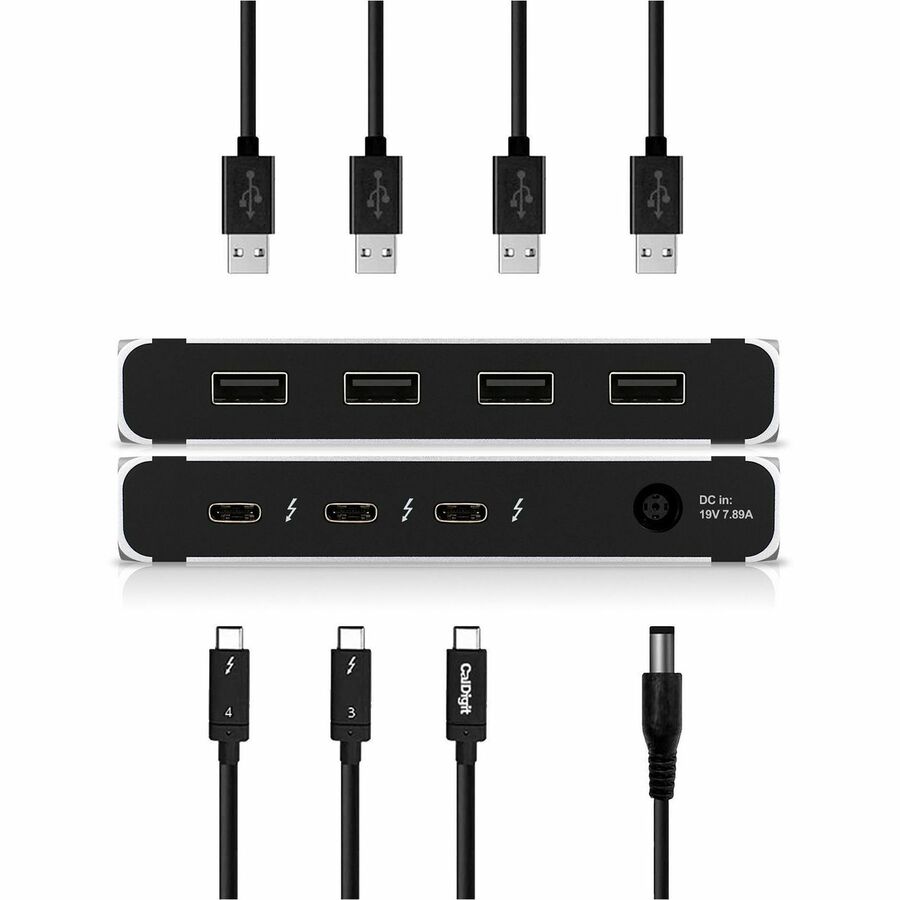

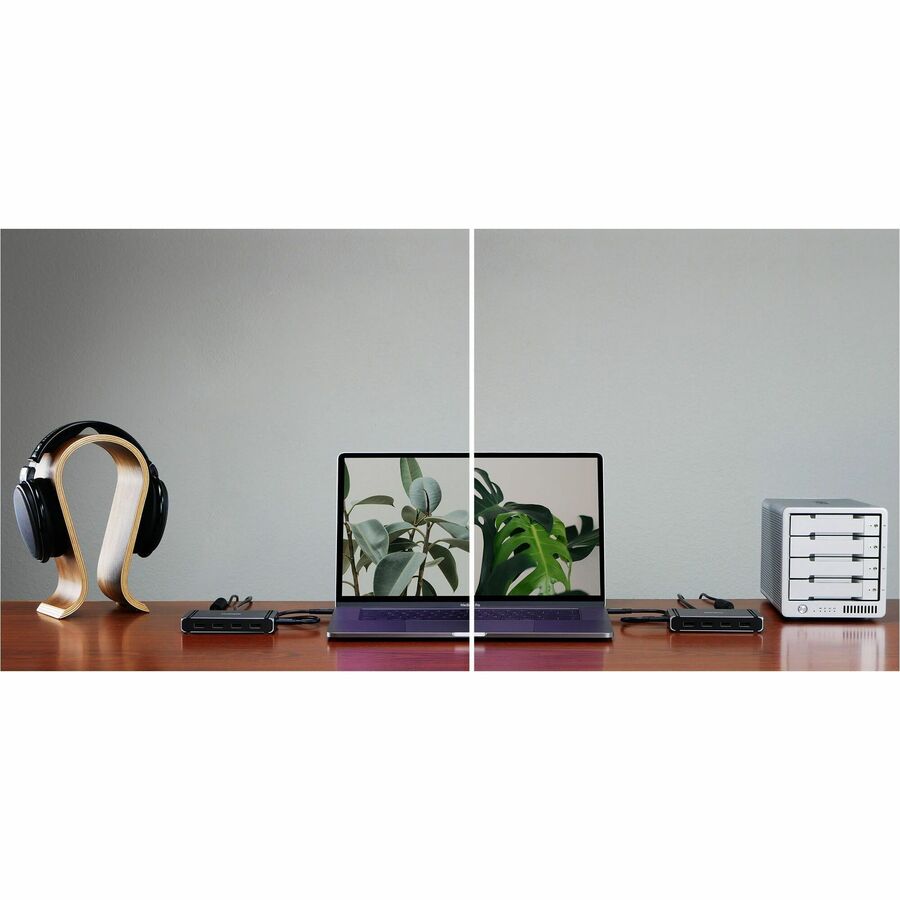

The merging of Thunderbolt and USB brings with it the ability for devices, such as the Element Hub, to feature up to four Thunderbolt 4 ports. One Thunderbolt 4 port is used for the host computer connection, and the remaining three ports for connecting additional devices, such as another Element Hub. The workflow possibilities are endless.

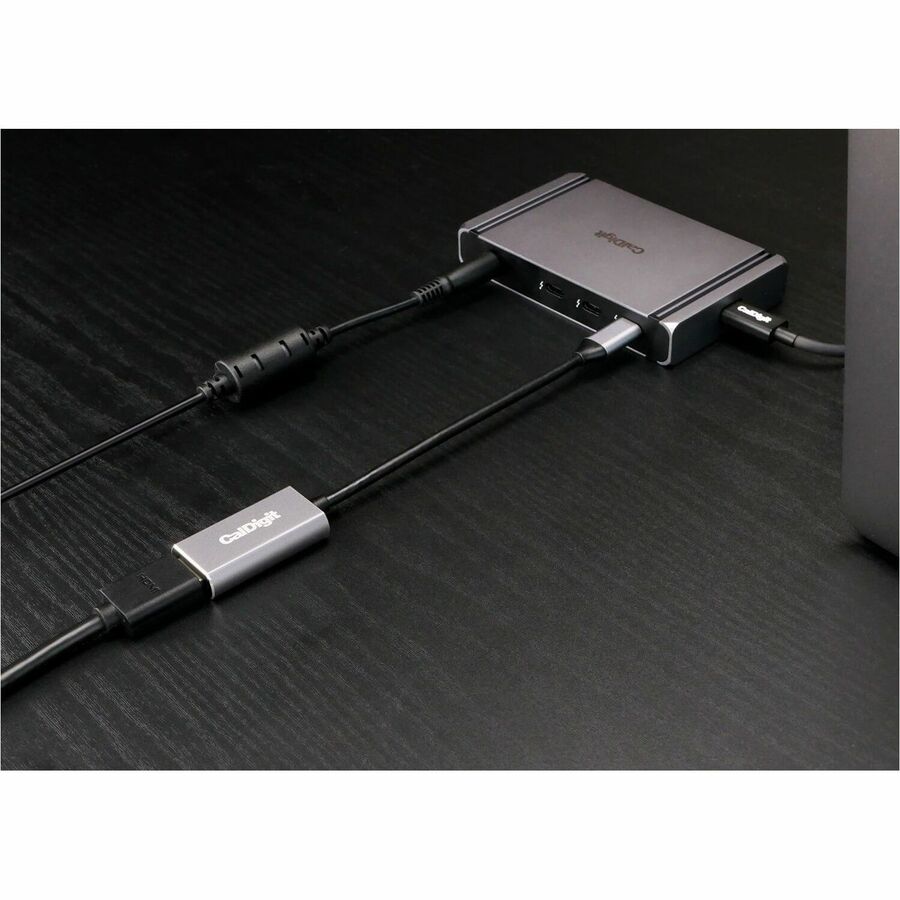

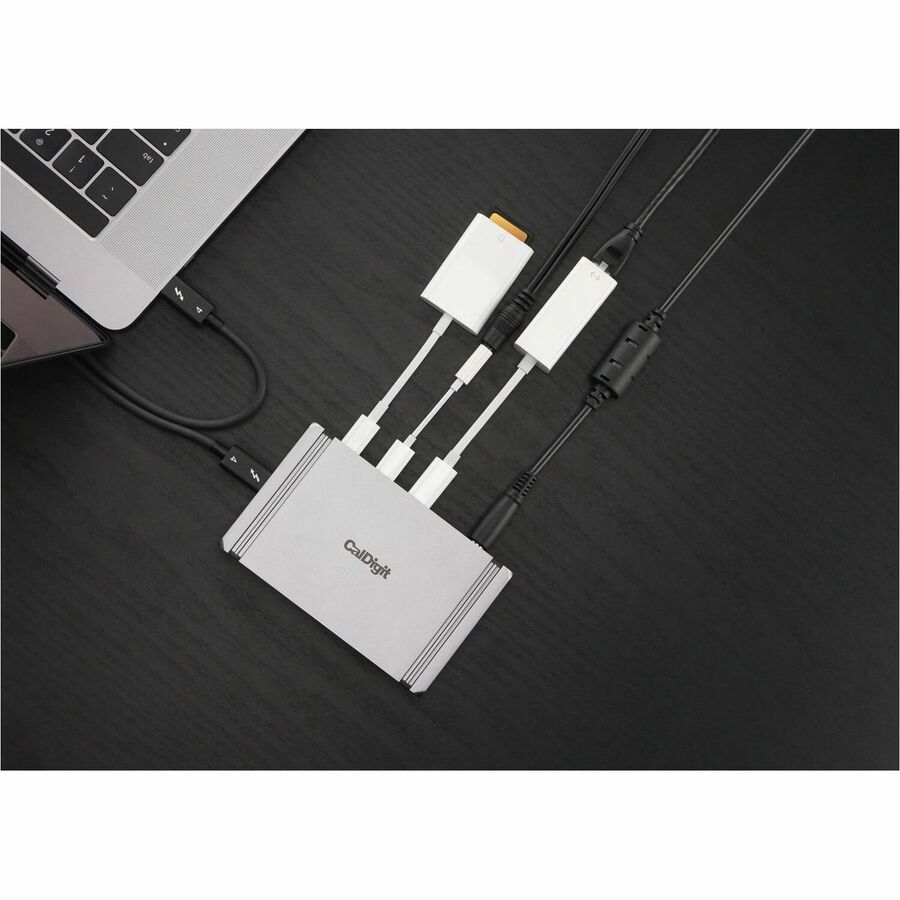

Examples of devices that can be connected to theThunderbolt 4/USB4 ports
General Information | |
Manufacturer | CalDigit, Inc |
Manufacturer Part Number | TB4ELEMENTHUBUS |
Manufacturer Website Address | http://www.caldigit.com |
Brand Name | CalDigit |
Product Line | Element Hub |
Product Name | Element Hub Docking Station |
Packaged Quantity | 1 |
Product Type | Docking Station |
Technical Information | |
Connectivity Technology | Wired |
Charging Capability | Yes |
Number of Displays Supported | 2 |
Supported Resolutions | 3840 x 2160 |
Supported Resolutions | 5120 x 2880 |
Supported Resolutions | 7680 x 4320 |
Screen Mode Supported | 6K |
Screen Mode Supported | 5K |
Screen Mode Supported | 8K |
Screen Mode Supported | 4K |
Device Supported | Notebook/Tablet PC/Watch/Airpod/Smartphone/Wireless Charger/Monitor/Desktop PC/Memory Card Reader |
Interfaces/Ports | |
Host Interface | Thunderbolt 4 |
Total Number of USB Ports | 4 |
Number of USB 3.2 Gen 2 Type-A Ports | 4 |
Number of USB Type-A Ports | 4 |
USB Type-A | Yes |
Thunderbolt | Yes |
Thunderbolt Ports Quantity | 4 |
Number of Thunderbolt 4 Ports | 4 |
USB Power Delivery | 60W |
Software | |
Operating System Supported | ChromeOS |
Operating System Supported | macOS Big Sur |
Operating System Supported | iPadOS |
Operating System Supported | Windows 10 |
Power Description | |
Maximum Power Supply Wattage | 150 W |
Physical Characteristics | |
Height | 0.71" |
Width | 2.76" |
Weight (Approximate) | 6.35 oz |
Miscellaneous | |
Package Contents |
|
Compatibility | Compatible Device:
|
Warranty | |
Limited Warranty | 2 Year |
