Nidec

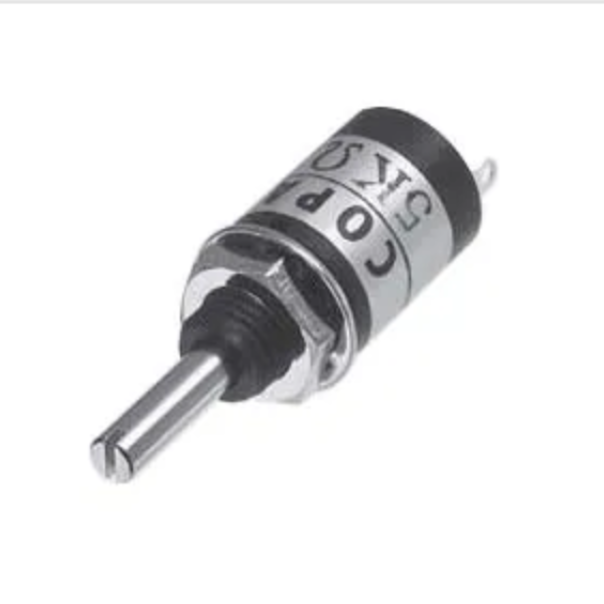

Nidec MC1003-000-502 Precision Potentiometers 1080 degree electrical angle, .19 W, 5 kOhm resistance, sensing three turn conductive plastic, 1% linearity, 10mm diameter, solder lug terminals
Mfg Part Number: MC1003-000-502 , Item #: 4345141
Image may not reflect the actual item.
Price: $105.65
Quantity:
In Stock: 680
Last Updated: Apr 25, 2026
No Sales Tax except these states
, PO and Wire.
Linearity: 1 %
Orientation: Vertical
Number of Turns: 3 Turn
Number of Gangs: 1 Gang
Resistance: 5 kOhms
Shaft Diameter: 3 mm
Shaft Length: 10 mm
Element Type: Conductive Plastic
Shaft Type: Slotted
Tolerance: 20 %
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Packaging: Tray
Brand: Nidec Components
Power Rating: 190 mW
Product Type: Precision Potentiometers
