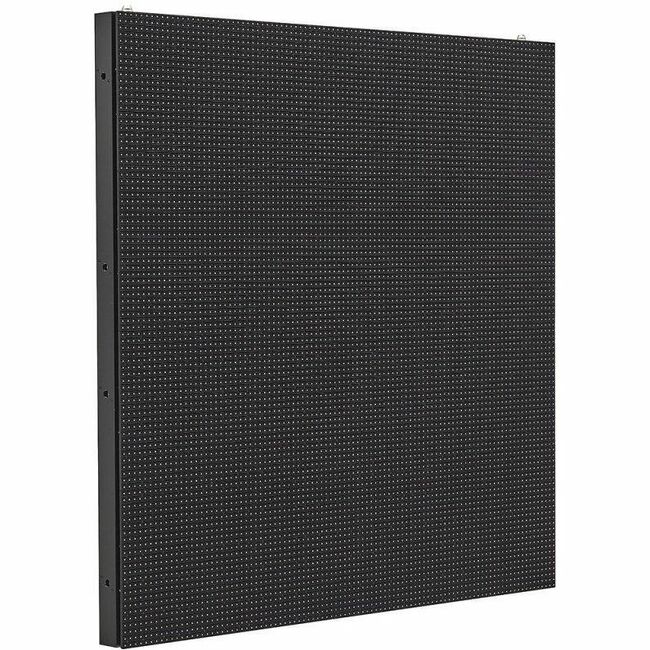

GSCD Ultra Light Series
With a lightweight design, the Ultra Light Series can be easily composed of a large screen without providing heavy load to the installing structure. A 90° corner option is provided for seamless right-angled installation.
High Brightness
With a great brightness of 7,000 nits*, it clearly delivers content and attracts public attention, which is the ultimate display for outdoor visibility.
Lightweight Design
The weights of the cabinet is very light, so even if a large LED screen is installed on the roof, it puts less pressure on the building's load.
Easy Maintenance

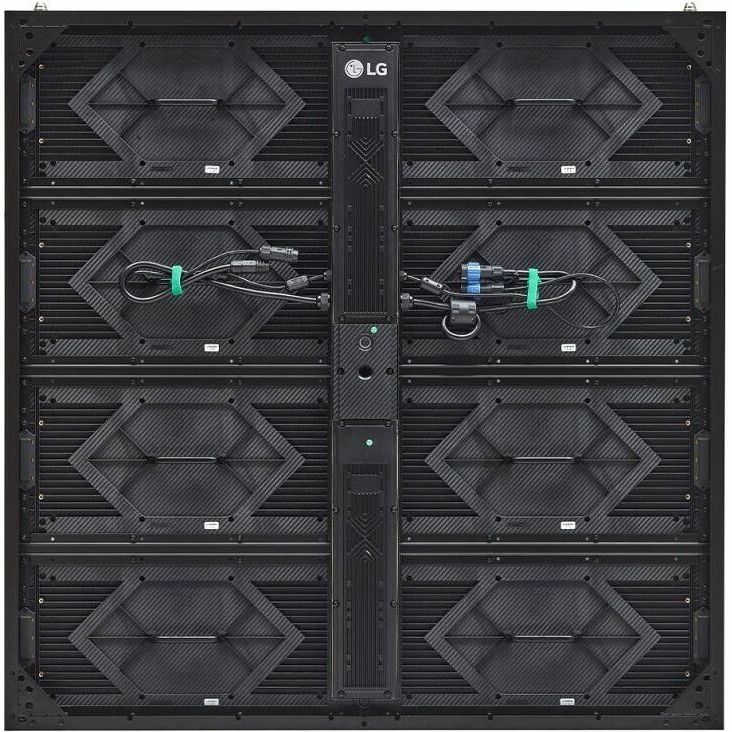

The control unit (PDU) of the cabinet is a modular type which can be easily attached or detached, supporting easy maintenance.
Front or Rear Serviceability
The product offers either front access or rear access, allowing customers to choose installation options according to their environment.
90° Corner Design Available
If you add a 90° corner option, the GSCD series can deliver content effectively even when installed on the corners.
IP Rated Weatherproof Design
The front and back of the cabinet are IP65 certified, allowing stable operation less affected by weather.
Compatibility with LG Software Solutions
Powered by LG's high performance system controller, the GSCD series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business flawlessly.
| General Information | |
| Manufacturer | LG Electronics |
| Manufacturer Part Number | GSCD069GN3 |
| Manufacturer Website Address | http://www.lg.com/us |
| Brand Name | LG |
| Product Line | Ultra Light |
| Product Series | GSCD |
| Product Model | GSCD069-GN3 |
| Product Name | Ultra Light GSCD069-GN3 Digital Signage Display |
| Product Type | Digital Signage Display |
| Technical Information | |
| Ingress Protection (IP) Rating | IP65 |
| Display & Graphics | |
| Display Screen Type | LCD |
| Display Resolution | 144 x 144 |
| Pixel Pitch | 0.27" |
| Backlight Technology | LED |
| Number of Modules Per Cabinet | 2x4 |
| Module Resolution | 72 x 36 |
| Video | |
| Dynamic Contrast Ratio | 6,000:1 |
| Color Depth | 16-bit |
| Brightness | 5000 Nit |
| Network & Communication | |
| Ethernet | Yes |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| RS-232C Input | Yes |
| RS-232C Output | Yes |
| Software | |
| Operating System | webOS 4.0 |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Operating Humidity | 10% |
| Maximum Operating Humidity | 99% |
| Physical Characteristics | |
| Mount Type | Ceiling Mount |
| Height | 39.4" |
| Width | 39.4" |
| Depth | 3.3" |
| Weight (Approximate) | 40.79 lb |
| Miscellaneous | |
| Application/Usage | Business |
