PROMISE

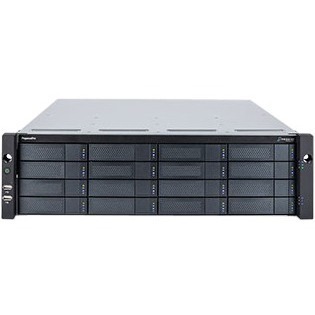

PROMISE PPR16XX10BS4TU PEGASUSPRO R16 61.44TB (16 X 3.84TB SSD) SYSTEM CPU I7, TARGET MODE, 10G BASE-
Mfg Part Number: PPR16XX10BS4TU , Item #: 4334545
, PO and Wire.
Technology Breakthrough-FileBoost™
Convert from DAS to NAS and vice-versa with FileBoost™ for the first time, reducing hours of troublesome transferring and sharing time to just one-click.
Performance and Sharing
Recommended for medium to large editing teams. Dual Thunderbolt™ 3 ports (AJA Write:2809MB/s, Read:2784MB/s)* supports up to five 4K concurrent editors and sharing with up to twenty NAS users with 10G Ethernet switch.
Investment Protection for Pegasus Users
Aggregate, share content and expand up to total 6 daisy chain on Pegasus3 and/or Pegasus32 to ensure the best utilization of asset to Pegasus users, in addition, allow to be upgraded and adapted to fit future needs, e.g. 8K definition.
No Compromising Performance
Embrace high performance file sharing for collaborative workflow features on Final Cut Pro X, Adobe Premiere Pro, DaVinci etc.
Ease of Use
Plug and Play. Intuitive and simple PROMISE Utility Pro to simplify user and data administration, enables seamless transition and ease of use to end users.
Data Protection is essential
Worldwide most robust PROMISE RAID engine, stable and high performance. Easy backup to NAS and Cloud.
Cost Effective
All-in-one storage to support Thunderbolt™ DAS/Ethernet NAS/Thunderbolt™ NAS. Thunderbolt™ -to-Ethernet networking connects shared asset storage to workstations. Scale up storage capacity with up to 6 JBOD expansion units on PegasusPro R16.
PegasusPro R16 Storage Capacity Expansion with JBOD
Model: Vess J3600sS
| General Information | |
| Manufacturer | Promise Technology |
| Manufacturer Part Number | PPR16XX10BS4TU |
| Manufacturer Website Address | http://www.promise.com |
| Brand Name | Promise |
| Product Line | PegasusPro |
| Product Series | R |
| Product Model | R16 |
| Product Name | PegasusPro R16 NAS/DAS Storage System |
| Product Type | NAS/DAS Storage System |
| Storage | |
| Number of Hard Drives Supported | 16 |
| Number of Hard Drives Installed | 0 |
| Number of Solid State Drive Supported | 16 |
| Number of Solid State Drive Installed | 16 |
| Total Solid State Drive Capacity Installed | 61.44 TB |
| Solid State Drive Configuration | 16 x 3.84TB |
| Processor & Chipset | |
| Processor Type | Core i7 |
| Processor Model | i7-8700 |
| Processor Core | Hexa-core (6 Core) |
| Processor Speed | 3.20 GHz |
| Memory | |
| Standard Memory | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 16 |
| Number of 2.5"/3.5" Bays | 16 |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | PCI Express |
| Controllers | |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60 |
| Interfaces/Ports | |
| Host Interface | Thunderbolt 3 |
| HDMI | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 6 |
| VGA | Yes |
| Number of Thunderbolt 3 Ports | 2 |
| Physical Characteristics | |
| Height | 5.2" |
| Width | 17.6" |
| Depth | 19.8" |
| Form Factor | Rack-mountable |
| Warranty | |
| Limited Warranty | 3 Year |
