Dell

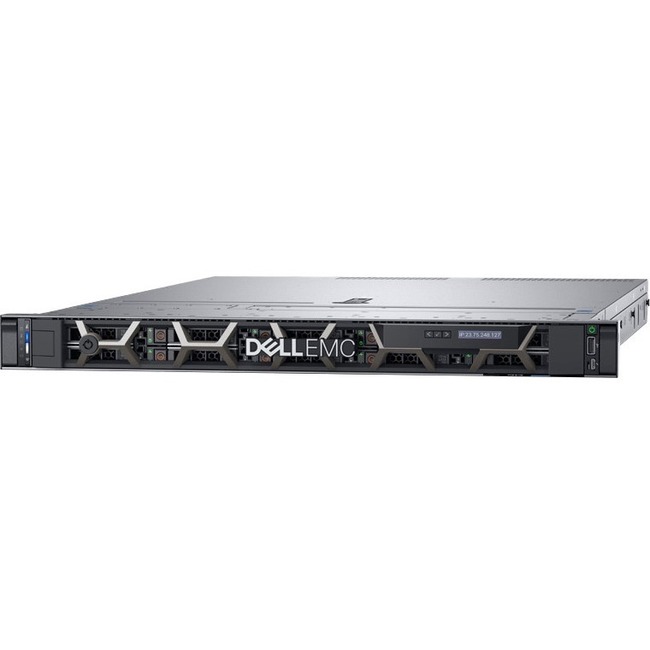

Dell 4JJ53 POWEREDGE R6515 EPYC 7302P 3GHZ 128M 16C 16GB 480GB SATA H730P 550W
Mfg Part Number: 4JJ53 , Item #: 4331153
, PO and Wire.
Dual-socket performance in a single-socket 1U rack design
The Dell EMC PowerEdge R6515 rack server is a dense single-socket 1U rack server delivering peak performance and excellent TCO.
Deliver breakthrough performance, innovation and density for traditional and emerging workloads
Data center evolution starts with modern platforms that scale easily and are optimized for application performance. The PowerEdge R6515 is built upon a scalable system architecture and provides choice and flexibility to meet performance demands. High-level specifications:
- 100% more processing cores and faster data transfer speeds with PCIe Gen 4
- 20% more memory performance for scale out environments
- Improved TCO with VM density and SQL performance improvements
- High parallelism for low latency on ROBO and Dense Azure Stack HCI
Increase efficiency and accelerate operations with an automated infrastructure
The Dell EMC OpenManage™ systems management portfolio delivers an efficient and comprehensive solution for PowerEdge servers through tailored, automated, and repeatable processes.
- Automate server life cycle management with scripting via the iDRAC Restful API with Redfish conformance.
- Simplify and centralize one to many management with the OpenManage Enterprise console.
- Utilize the OpenManage Mobile app and PowerEdge Quick Sync 2 to easily manage servers using a phone or tablet.
- Resolve issues with up to 72% less IT effort using automated proactive and predictive technology from ProSupport Plus and SupportAssist.
Fortify your data center with integrated security
Every PowerEdge server is designed with a cyber resilient architecture, integrating security deeply into every phase in the lifecycle, from design to retirement.
- Enhance security with platform enablement of AMD Secure Memory Encryption (SME) and Secure Encrypted Virtualization (SEV).
- Operate your workloads on a secure platform anchored by cryptographically trusted booting and silicon root of trust.
- Maintain server firmware safety with digitally signed firmware packages.
- Detect and remediate unauthorized or malicious change with drift detection and system lockdown.
- Securely and quickly wipe all data from storage media including hard drives, SSDs and system memory with System Erase.
| General Information | |
| Manufacturer | Dell Technologies |
| Manufacturer Part Number | 4JJ53 |
| Manufacturer Website Address | http://www.delltechnologies.com |
| Brand Name | Dell EMC |
| Product Line | PowerEdge |
| Product Model | R6515 |
| Product Name | PowerEdge R6515 Server |
| Product Type | Server |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | EPYC |
| Processor Model | 7302P |
| Processor Core | Hexadeca-core (16 Core) |
| Processor Speed | 3 GHz |
| Chipset | |
| Chipset Manufacturer | AMD |
| Memory | |
| Standard Memory | 16 GB |
| Maximum Memory Supported | 2 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Clock Speed | 3.20 GHz |
| Total Number of Memory Slots | 16 |
| Storage | |
| Total Solid State Drive Capacity | 480 GB |
| Solid State Drive Interface | Serial ATA/600 |
| Optical Drive Type | No |
| Controllers | |
| Controller Type | Serial ATA/600 |
| Controller Type | 12Gb/s SAS |
| Controller Model | PERC H730P |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60 |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| Number of 3.5" Bays | 4 |
| Number of LFF Bays | 4 |
| Hot Swappable Bays | Yes |
| PCI Express x16 (Gen 3.x) Slots | 1 |
| Riser Card | Riser Config 1, 1x16 LP PCIe slot |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 5 |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.0 Ports | 2 |
| Network (RJ-45) | Yes |
| Operating System | |
| Operating System | No |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Plug/Connector Type | NEMA 5-15P to C13 |
| Maximum Power Supply Wattage | 550 W |
| Hot Swappable Power Supply | Yes |
| Physical Characteristics | |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 3.4" |
| Width | 17.1" |
| Depth | 25.9" |
| Weight (Approximate) | 36.93 lb |
| Miscellaneous | |
| Package Contents |
|
| Security Features |
|
| Country of Origin | Mexico |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 Years Basic Hardware Warranty Repair 5x10 HW-Only 5x10 NBD On-site-Disti SNS |
