THERMALTAKE
THERMALTAKE PS-TPD-0750F3FAGU-2 80+ GOLD EFFICIENCY, TOUGHPOWER GF2 COMES WITH CAPACITIES FROM 650W TO 850W, FEA
Mfg Part Number: PS-TPD-0750F3FAGU-2 , Item #: 4328134
, PO and Wire.

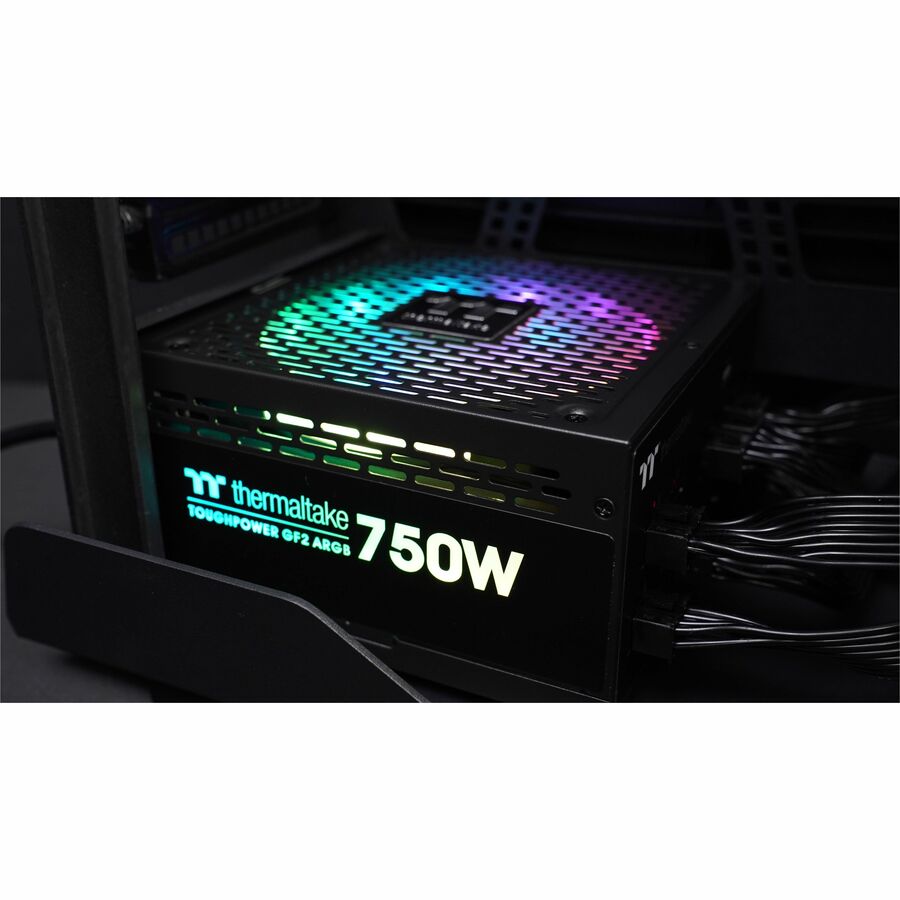

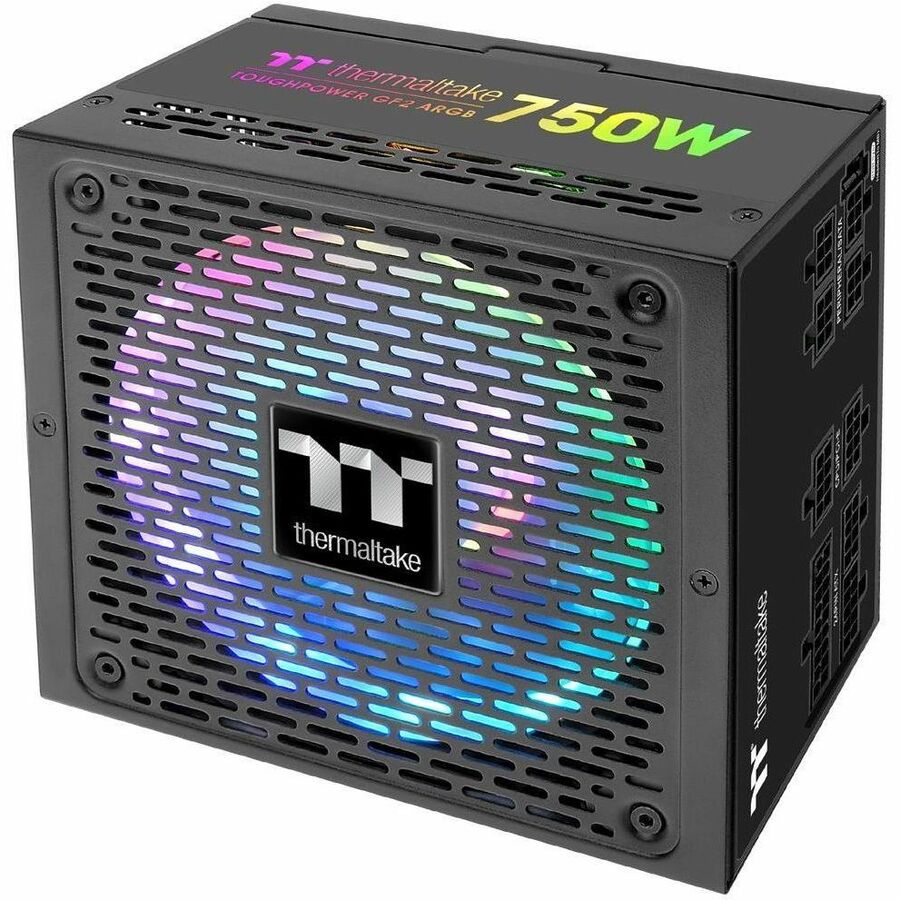

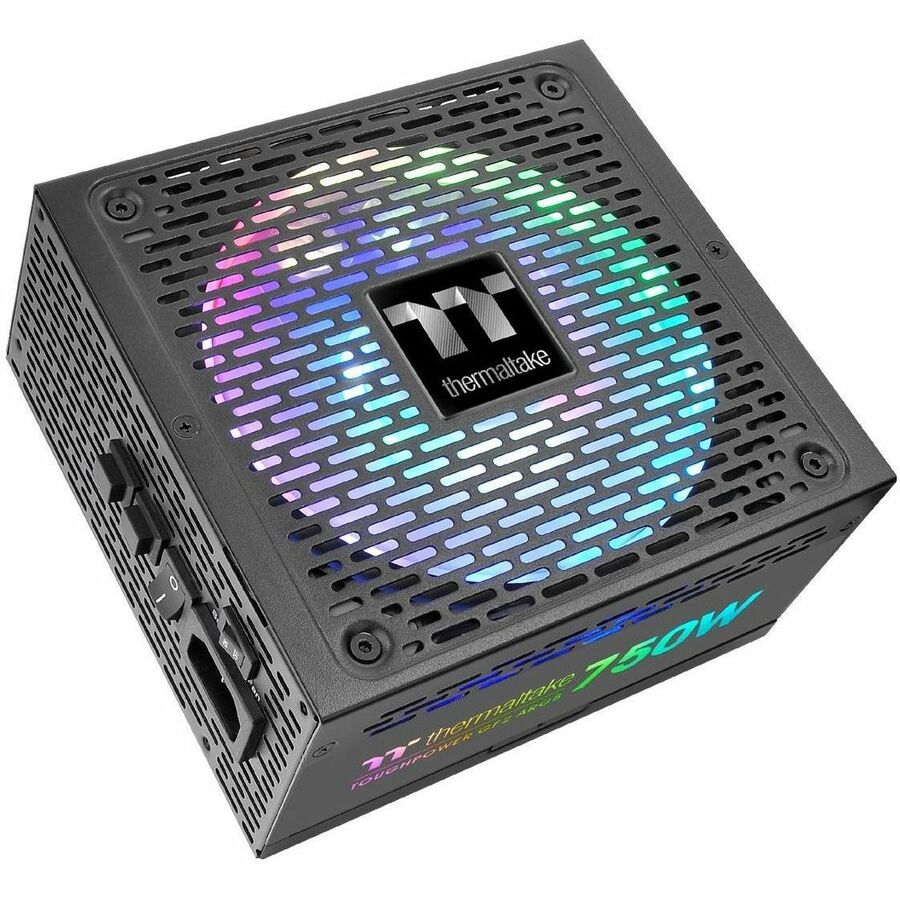

Toughpower GF2 ARGB 750W Gold
Toughpower GF2 ARGB 750W Gold is constructed with premium components and advanced technology which makes this PSU become a reliable and stable power supply unit. The patented 16.8 million-color Riing Duo 140mm RGB fan with 18 LEDs preinstalled helps deliver brighter and richer lighting. The meticulously designed RGB side panels allow the light to glow through from every angles. The Toughpower GF2 ARGB 750W Gold supports synchronization with motherboard RGB software from ASUS, GIGABYTE, MSI, and ASRock for various illumination poossibilities. With an ample 10-year warranty, the Toughpower GF2 ARGB 750W Gold is able to satisfy the market, where PC enthusiasts are looking for a premium power supply with all the latest features.

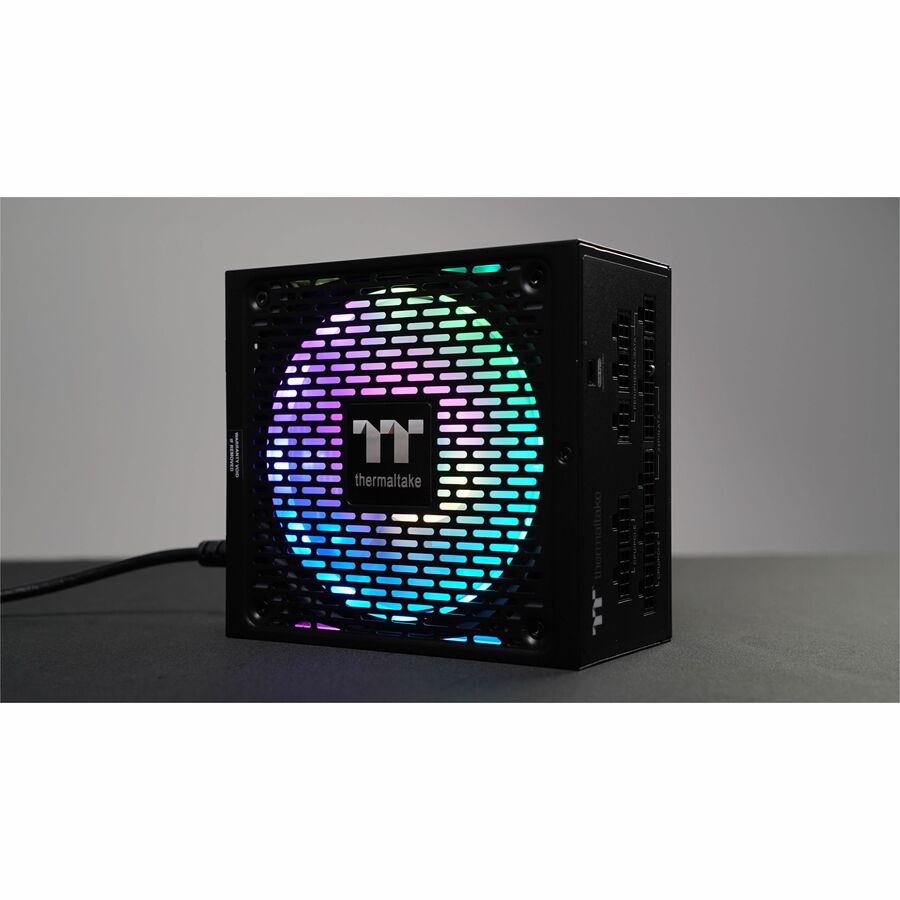

ARGB Side Panels and Riing Duo 140mm RGB Fan
Show off the glamorous illumination through the unique ARGB Side Panel design, enables you to enjoy the RGB glory from every angel. Moreover, the built-in Riing Duo 140mm RGB Fan features dual rings with 18 addressable LEDs, great light coverage, and uniform color and brightness to paint your build with 16.8 million colors.
Riing Duo 140mm RGB Fan
2 LED rings, 18 ARGB LEDs
6 LEDs ARGB Side Panels
Embedded in two sides

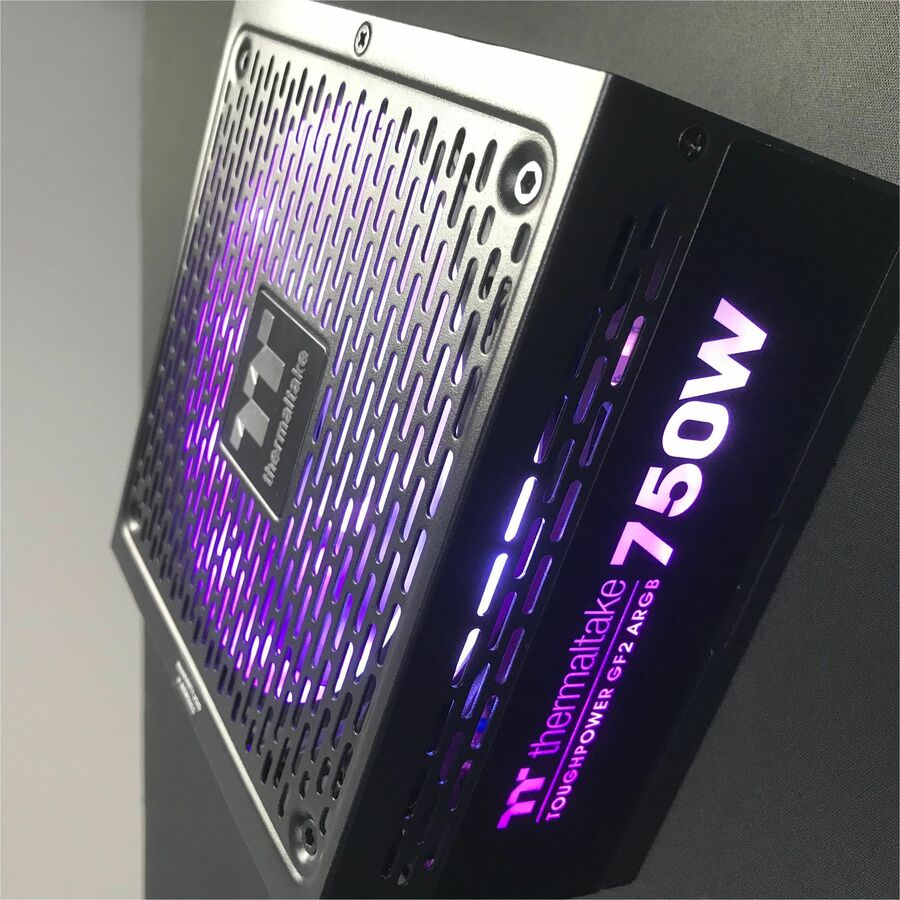

ARGB Side Panels
7 lighting modes and a plenty of color options.
-
6 LEDs ARGB Side Panels (embedded in two sides)
-
Patented 16.8 million-color Riing Duo 140mm RGB Fan
-
ARGB Lighting Buttons (Mode & Color)
-
Smart Zero Fan Switch
-
Durable Chassis
-
Side Ventilation Design
-

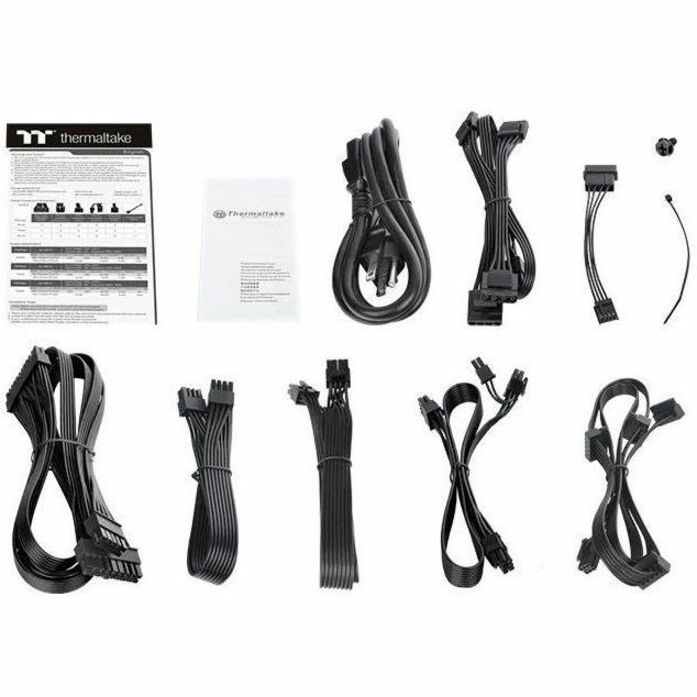

Fully Modular Cable Design
-
DC to DC Design
Zero Cable Platform
Farewell to messy cables! We have connected the back panel and the PCB with a copper plate for better heat dissipation and impressive output power quality.

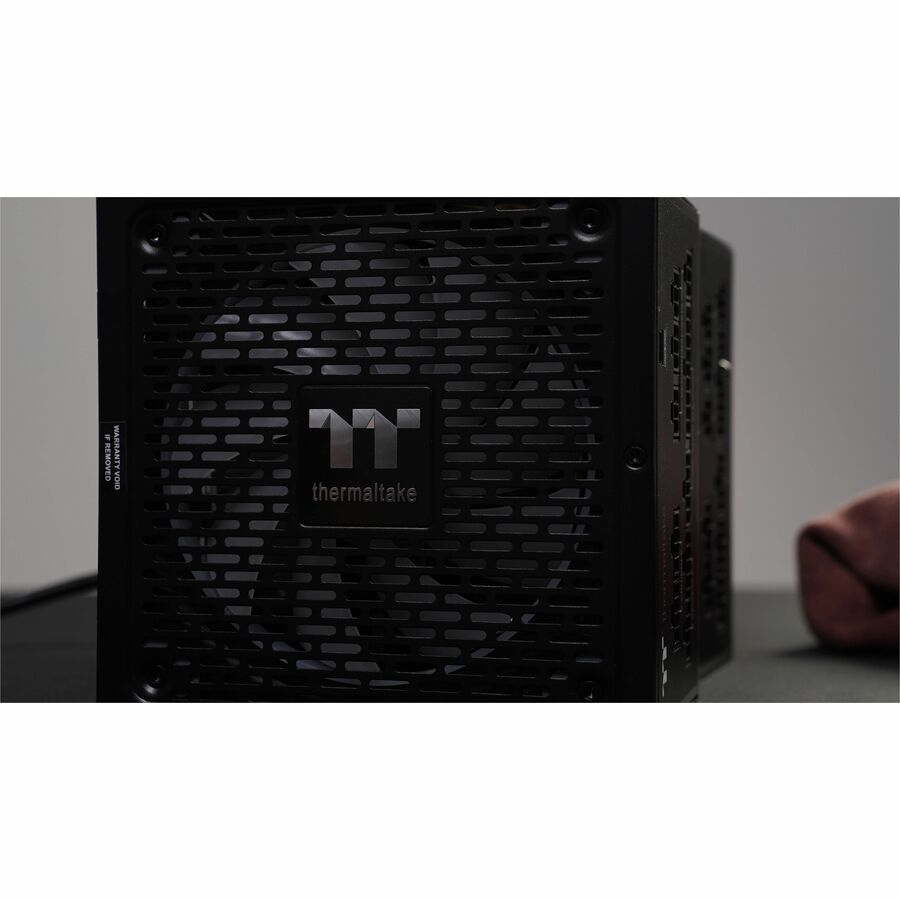

Smart Zero Fan
Designed with our Smart Zero Fan, the fan will not spin until the load exceeds 30% of the power supply, minimizing the fan noise.
| General Information | |
| Manufacturer | Thermaltake Technology Co., Ltd |
| Manufacturer Part Number | PSTPD0750F3FAGU2 |
| Manufacturer Website Address | http://www.thermaltakeusa.com |
| Brand Name | Thermaltake |
| Product Line | Toughpower |
| Product Series | GF2 ARGB |
| Product Model | TTP-750AH3FSG-A |
| Product Name | Toughpower GF2 ARGB 750W - TT Premium Edition |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX12V/EPS12V |
| Efficiency | 90% |
| Number of Fans | 1 |
| Modular | Yes |
| Power Description | |
| Number of +12V Rails | 1 |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | -12 V DC |
| Output Voltage | 5 V DC |
| Output Voltage | 3.3 V DC |
| Output Voltage | 12 V DC |
| Output Voltage Detail | -12 V DC @ 0.3 A |
| Output Voltage Detail | 5 V DC @ 22 A |
| Output Voltage Detail | 5 V DC @ 3 A |
| Output Voltage Detail | 12 V DC @ 62.5 A |
| Output Voltage Detail | 3.3 V DC @ 22 A |
| Output Current | 22 A |
| Output Current | 62.50 A |
| Output Current | 300 mA |
| Output Current | 3 A |
| Output Power | 750 W |
| Physical Characteristics | |
| Form Factor | Internal |
| Height | 3.4" |
| Width | 5.9" |
| Depth | 6.3" |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | 80 Plus Gold |
