ALOGIC USA

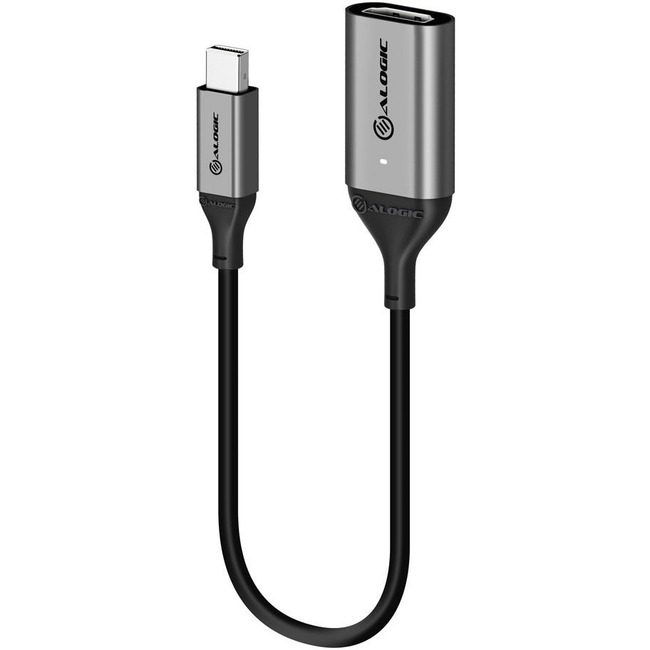

ALOGIC USA ULMDPHDA-SGR 20CM MINI DISPLAYPORT 1.4 TO HDMI 2.0 ADAPTER 4K 60HZ ACTIVE

Mfg Part Number:  ULMDPHDA-SGR
Image may not reflect the actual item.
Price: $33.73 + Free Shipping
Quantity:
In Stock: 20
Last Updated: May 23, 2025
No Sales Tax except these states
, PO and Wire.

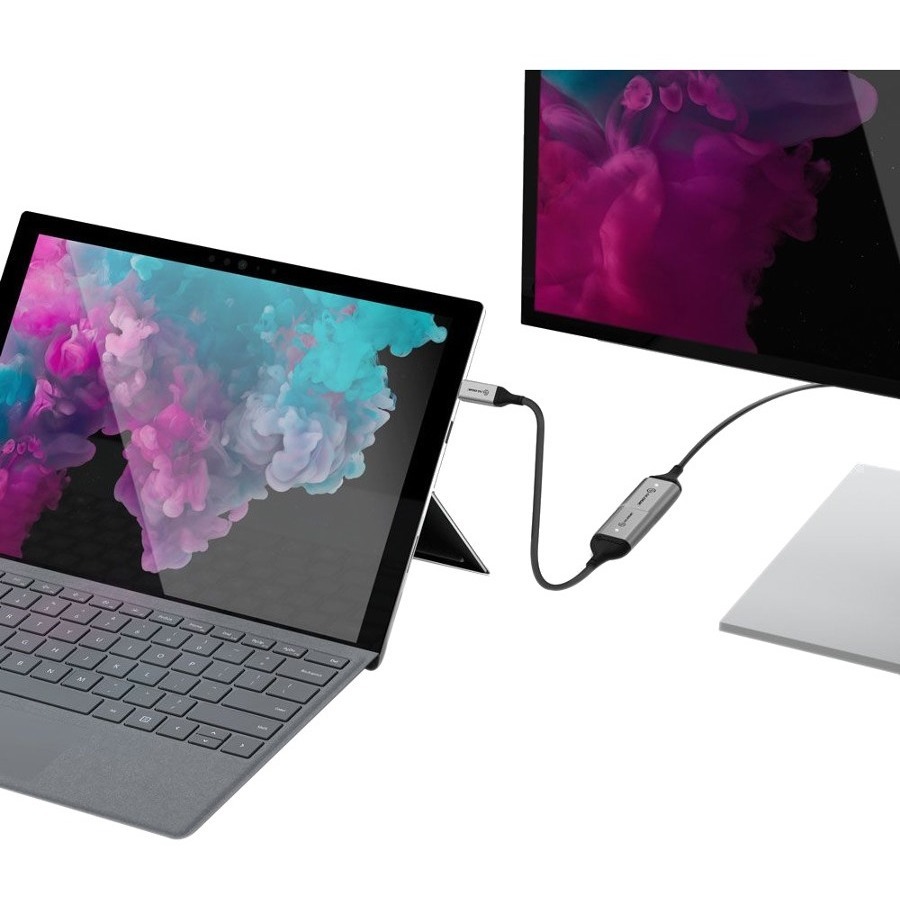

The ALOGIC Ultra Mini DisplayPort 1.4 to HDMI Active Adapter allows you to connect your Mini DisplayPort enabled device, such as a laptop or PC, to an HDMI compatible display, such as a TV, monitor or projector. The adapter support 4K@60hz resolution and the Plug and Play design enables you to mirror or extend your display without driver or software installation.

The Ultra Mini DisplayPort to HDMI Active Adapter is built to support a maximum resolution of 4K@60Hz. The adapter is HDMI compatible with support for true Ultra high definition 4K@60Hz. It can support bandwidth of up to 18Gbps making it ideal for high-resolution gaming or video editing applications.

Plug and Play - Active Chipset

The HDMI adapter includes a built-in chipset to allow support for ACTIVE conversion. The ACTIVE cable will work with Mini DisplayPort or DisplayPort outputs that are not capable of outputting DP++, such as a video card like AMD Eyefinity, it will also work with DP++ outputs. The cable is also Plug and Play, allowing for immediate use without driver or software installation

Ultra-Construction

The ALOGIC Ultra range is crafted from superior materials and specially designed to guarantee a longer lifespan. The adapter core is strengthened with synthetic fibre and reinforced with thermoplastic (TPE) jacket to provide increased protection against all types of wear and tear. The adapter head is also constructed from thermoplastic (TPE) for maximum strain relief and finished with a metal alloy housing for added durability.

Main Specification
General Information
Manufacturer Alogic
Manufacturer Part Number ULMDPHDA-SGR
Manufacturer Website Address http://www.alogic.co
Brand Name Alogic
Product Line Ultra
Product Name Ultra Mini DisplayPort 1.4 to HDMI Adapter - 4K 60Hz - Active - 20cm
Packaged Quantity 1
Product Type A/V Cable
Technical Information
Cable Type HDMI/Mini DisplayPort
Cable Length 7.87"
Connector Type on First End HDMI 2.0 Digital Audio/Video - Female
Connector on First End Details 1 x HDMI 2.0 Digital Audio/Video - Female
Connector Type on Second End Mini DisplayPort 1.4 Digital Audio/Video - Male
Connector on Second End Details 1 x Mini DisplayPort 1.4 Digital Audio/Video - Male
Device Supported TV
Device Supported Notebook
Device Supported PC
Device Supported Monitor
Device Supported Graphics Card
Device Supported Audio/Video Device
Device Supported Projector
Data Transfer Rate 18 Gbit/s
Supported Resolution 3840 x 2160
Features Latching Connector
Features Tear Resistant
Features Strain Relief
Features Active
Features Eyefinity Technology
Features Wear Resistant
Features Plug & Play
Physical Characteristics
Product Color Space Gray
Jacket Material Thermoplastic Elastomer (TPE)
Miscellaneous
Country of Origin China
Warranty
Limited Warranty 2 Year
WARNING:: The plastic used in cable products can expose you to lead and lead components, chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov
