KRAMER

KRAMER 97-0142025 CA-HM ACTIVE HDMI COPPER CABLE PROVIDES A PERFECT CABLE SOLUTION FOR DELIVERING

Mfg Part Number:  97-0142025
Image may not reflect the actual item.
Price: $140.18 + Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Oct 11, 2025
No Sales Tax except these states
, PO and Wire.

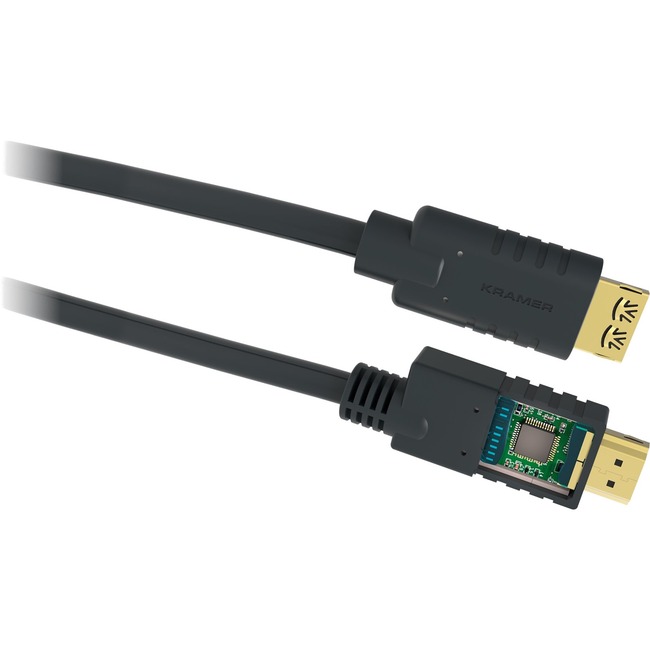

CA-HM active HDMI copper cable provides a perfect cable solution for delivering HDMI signals over long distances: 18Gbps up to 20m (66ft) and 10.2 Gbps up to 30m (98ft). The innovative technology utilized in the cable's connector features superior equalizing and signal compensation to meet the most demanding challenges in Pro AV installations.
This unique solution simplifies long distance installations by using a true plug & play cable that draws power from the HDMI source. There is no need for an external power source.
CA-HM features the Kramer exclusive K-Lock HDMI connector, that prevents cables in your installation from unintentionally disconnecting, eliminating cable-related service calls. Additionally, an LED on the connector indicates when the signal is transmitted successfully.

  • Video Resolution - Up to 4K@60Hz (4:4:4).
  • High Data Transfer Rate - Up to 18Gbps.
  • HDMI Support - HDCP 2.2, HDR, EDID, ARC and CEC.
  • Deep Color, x.v.Color™, 5.1/7.1 lossless Dolby TrueHD and DTS-HD surround sound.
  • High-quality Connectors - 24K gold-plated, corrosion-resistant connectors offer the best possible connectivity.
  • Pull-resistant - K-Lock connectors with 15 lbs. of restraining force.
  • Triple Shielded - For maximum EMI protection.
  • UL Listed - CL3/FT4 rated for in-wall installations.
  • Varied Selection of Lengths - Available in versions of 15 to 98ft (4.6 to 30m).
Main Specification
General Information
Manufacturer Kramer Electronics LTD
Manufacturer Part Number 97-0142025
Manufacturer Website Address http://www.kramerelectronics.com
Brand Name Kramer
Product Series CA-HM
Product Model CA-HM-25
Product Name Active High Speed HDMI Cable with Ethernet
Product Type A/V Cable
Technical Information
Cable Type HDMI
Cable Length 24.93 ft
Connector Type on First End HDMI Type A Digital Audio/Video - Male
Connector on First End Details 1 x HDMI Type A Digital Audio/Video - Male
Connector Type on Second End HDMI Type A Digital Audio/Video - Male
Connector on Second End Details 1 x HDMI Type A Digital Audio/Video - Male
Connector Plating Gold
Shielding Yes
Device Supported Audio/Video Device
Device Supported DVD
American Wire Gauge 28 AWG
Data Transfer Rate 18 Gbit/s
Supported Resolution 3840 x 2160
Features x.v.Color
Features Audio Return Channel (ARC)
Features Pull Resistant
Features Consumer Electronics Control (CEC)
Features Damage Resistant
Features HDCP 2.2
Features Corrosion Resistant
Features Plug & Play
Features Extended Display Identification Data (EDID)
Features K-Lock
Features HDMI Ethernet Channel (HEC)
Features EMI Protection
Features Active
Physical Characteristics
Jacket Color Black
Jacket Material Polyvinyl Chloride (PVC)
