CRESTRON ELECTRONICS 6510603 SSC-100-EL KIT

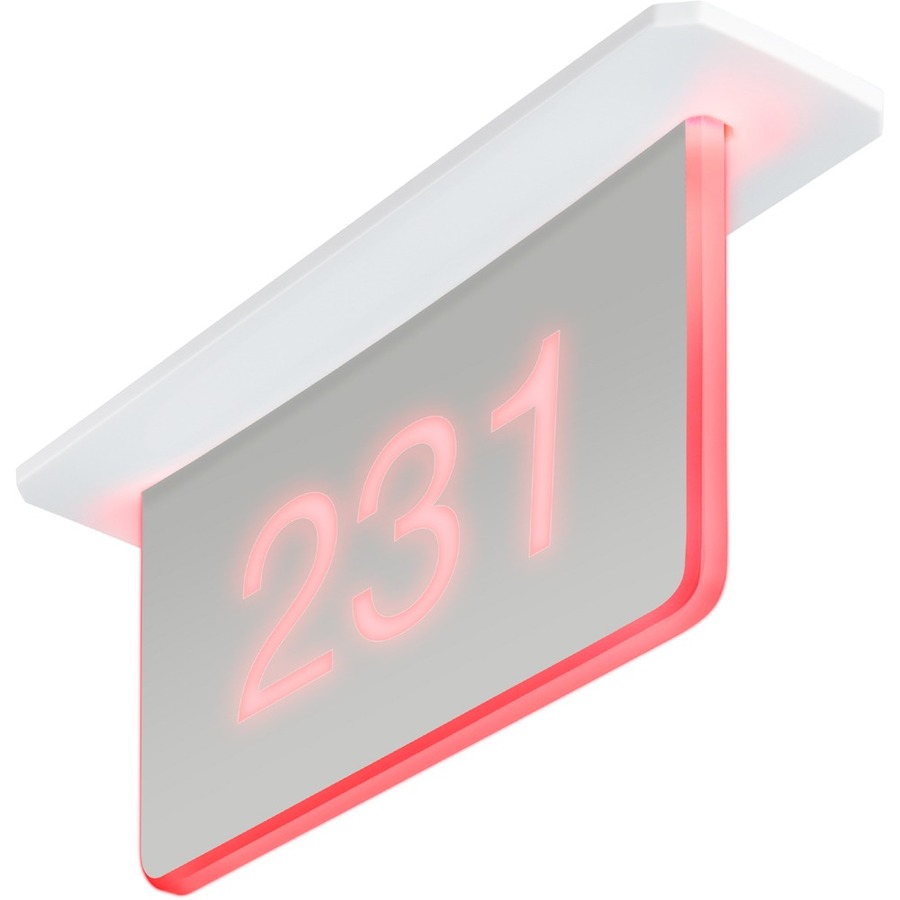

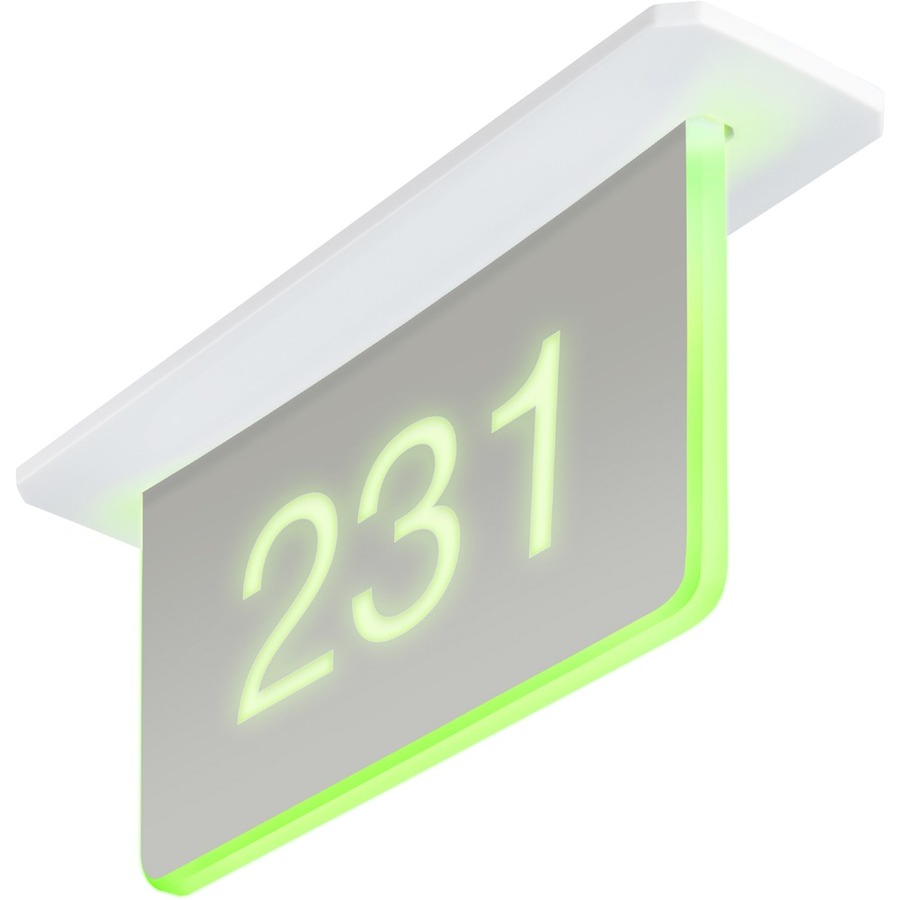

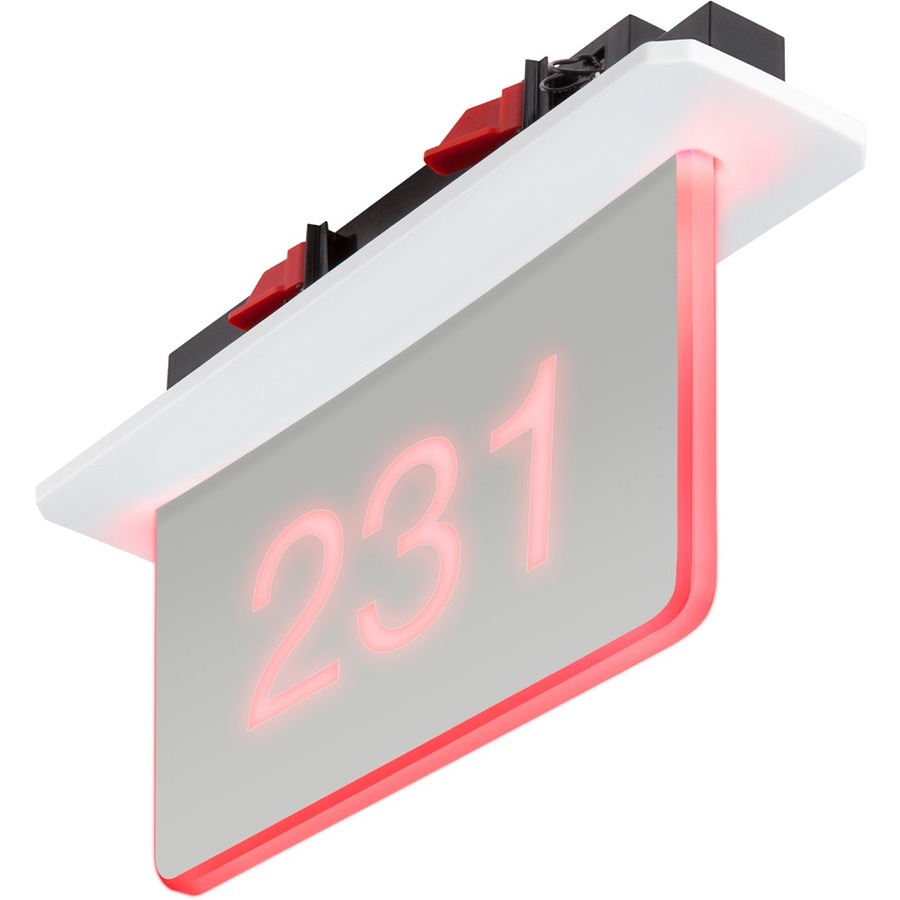

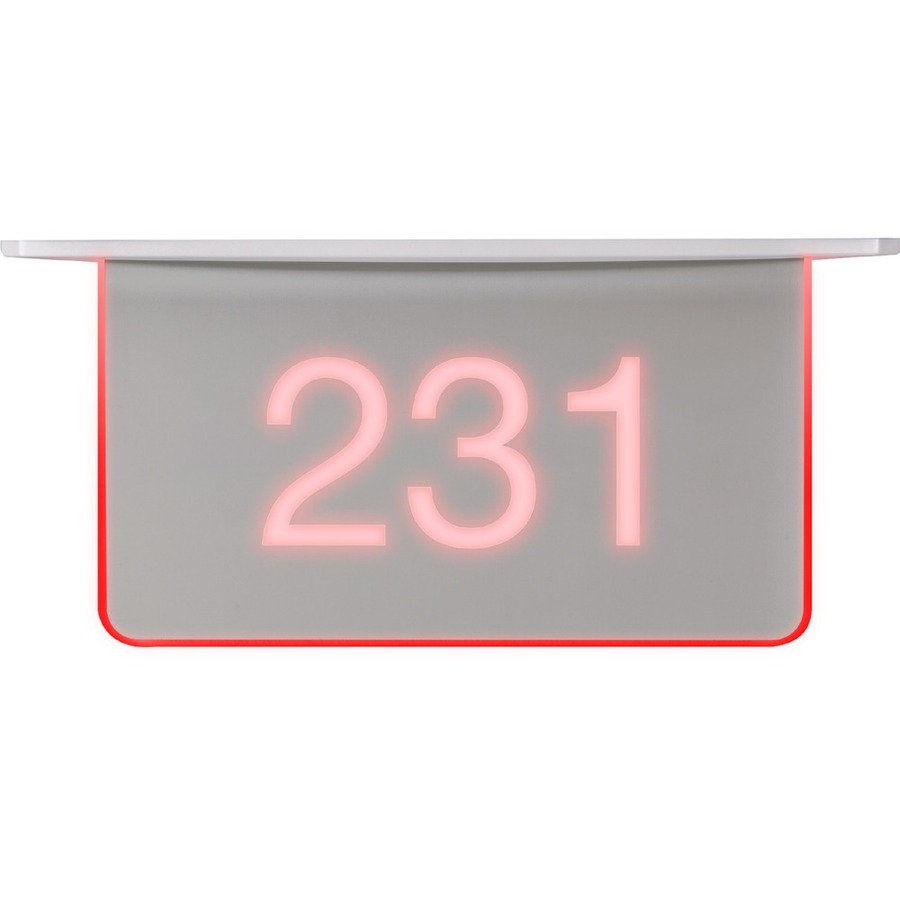

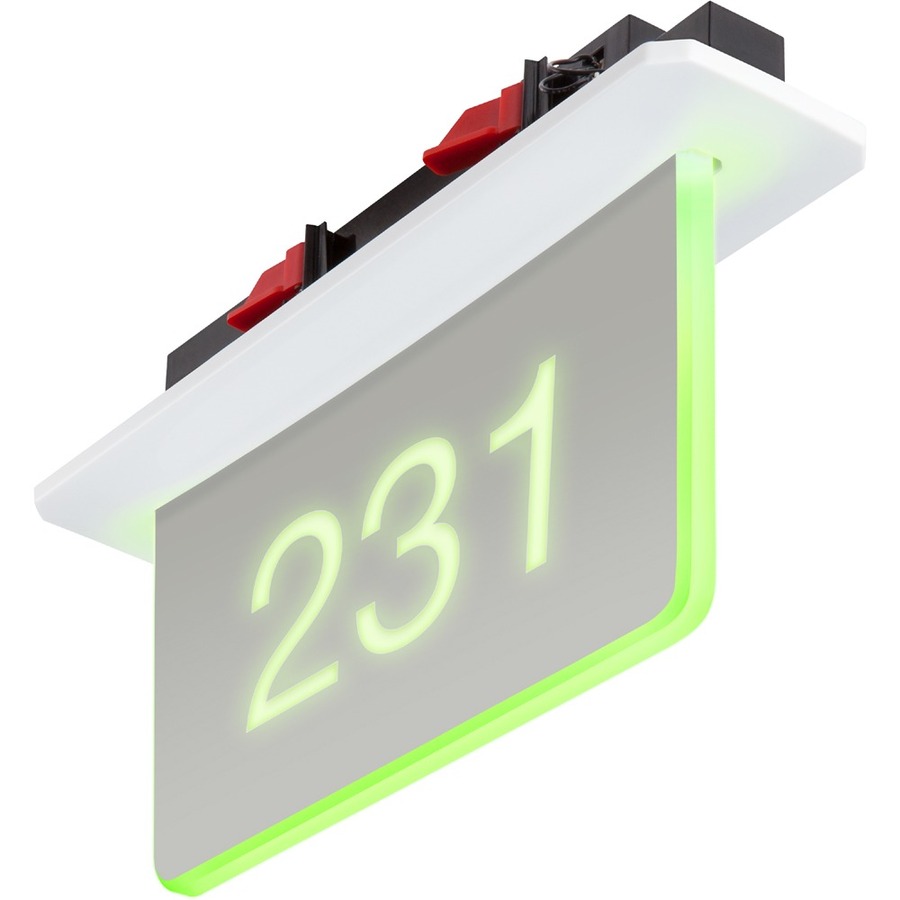

The SSC-100-EL hallway sign provides a clear indication of a room's availability with enhanced contrast and visibility as part of a complete Crestron® enterprise room scheduling solution. The SSC-100-EL features a stylish appearance and vivid color illumination that complements any corporate office environment. The two-sided, gray acrylic sign face illuminates bright green or red to indicate the room availability status. The sign face is custom engravable with the room number, name, icon, or other designation. The complete sign assembly mounts into a cutout in a drywall or drop-tile ceiling.

Room Availability Status

For room scheduling applications, the SSC-100-EL simply connects via USB to a Crestron TSS-770, TSS-1070, TSW-770, TSW-770-GV, TSW-1070, or TSW-1070-GV series touch screen. No special programming or configuration is required. The sign color is controlled by the room scheduling application, which runs on the touch screen and syncs with Crestron Fusion® software or another room scheduling service. The sign illuminates green when the room is available and red when the room is occupied.1 The gray sign face allows for increased contrast and readability from a distance, making it perfect for environments with long corridors or large, open spaces.

Custom RGB Colors

For custom applications, the SSC-100-EL can be integrated with a Crestron control system and programmed to illuminate in a wide variety of colors:

• The RGB LEDs can be controlled in 10% increments per color.
• When the sign is powered by USB, any single color LED can be used at full brightness.
• When the sign is connected to a control system via a Cresnet® network connection, two color LEDs can be used at full brightness simultaneously.
• Three color mixing is possible via Cresnet if each LED is limited to 70%.
• The control system can be programmed to support all types of functionality, enabling colors to alternate, fade in and out, or blink on and off as desired.

Control system integration can be accomplished through a USB connection to a TSW-770 or TSW-1070 series touch screen, or through a Cresnet connection to the control system.

Custom Engraving

The SSC-100-EL includes a blank acrylic sign, which allows for custom engraving by a third party. The engraving appears on both sides of the acrylic sign face to identify the room by name, number, or a representative icon image. When illuminated, the engraving is clearly visible at a distance of 150 ft (46 m) if 1 in. fonts are used. Engraving can be changed at any time by purchasing a replacement sign face (models SSC-ACR-100-EL or SSC-ACR-102-EL). Crestron Studio® software is used to specify the engraving.

General Information
Manufacturer	Crestron Electronics, Inc
Manufacturer Part Number	6510603
Manufacturer Website Address	http://www.crestron.com
Brand Name	Crestron
Product Model	SSC-100-EL
Product Name	SSC-100-EL Information Sign
Product Type	Information Sign
Product Information
Display Screen Type	LED
Placement	Ceiling Mountable
Application/Usage	Room
Application/Usage	Outdoor
Application/Usage	Hallway
Application/Usage	Meeting
Double Sided	Yes
Power Description
Power Source	DC Supply
Input Voltage	24 V DC
Physical Characteristics
Product Material	Plastic
Product Material	Acrylic
Product Material	Metal
Height	6.6"
Width	2.8"
Depth	11.1"
Weight (Approximate)	1.50 lb
Miscellaneous
Package Contents	SSC-100-EL Information Sign 5 ft (4.57 m) Plenum-rated USB Cable
