Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads

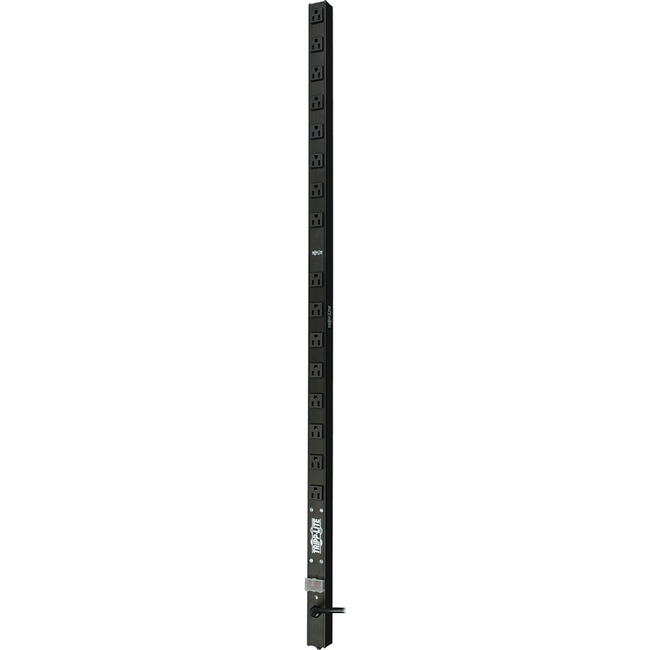

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDUV15-48 features 16 NEMA 5-15R outlets for connecting equipment. A 15-foot cord with 5-15P input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.
Up-to-Date Safety Features Protect Your Vital Equipment
A lighted on/off switch is protected by a transparent plastic cover to help prevent an accidental shutdown that could lead to costly downtime. A 15A circuit breaker protects connected components from dangerous overloads.
Versatile Installation Options Give You Plenty of Choices
The 48-inch 0U PDU mounts vertically in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting clips and hardware. You may also use the clips to secure the PDU to a wall, counter or other flat, secure surface.
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUV15-48 |
| Manufacturer Website Address | http://www.eaton.com |
| Brand Name | Tripp Lite by Eaton |
| Product Model | PDUV15-48 |
| Product Name | PDUV15-48 16-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Basic |
| Phase | Single Phase |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 16 x NEMA 5-15R |
| Protection Type | Accidental Power Shutdown |
| Protection Type | Overload Protection |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 127 V AC |
| Output Voltage | 120 V AC |
| Output Voltage | 100 V AC |
| Power Rating (Watt) | 1440 W |
| Input Current | 15 A |
| Circuit Breaker | Yes |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Placement | Under-counter |
| Rack Height | 0U |
| Cord Length | 15 ft |
| Height | 48.5" |
| Width | 1.5" |
| Depth | 1.6" |
| Weight (Approximate) | 3.74 lb |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
