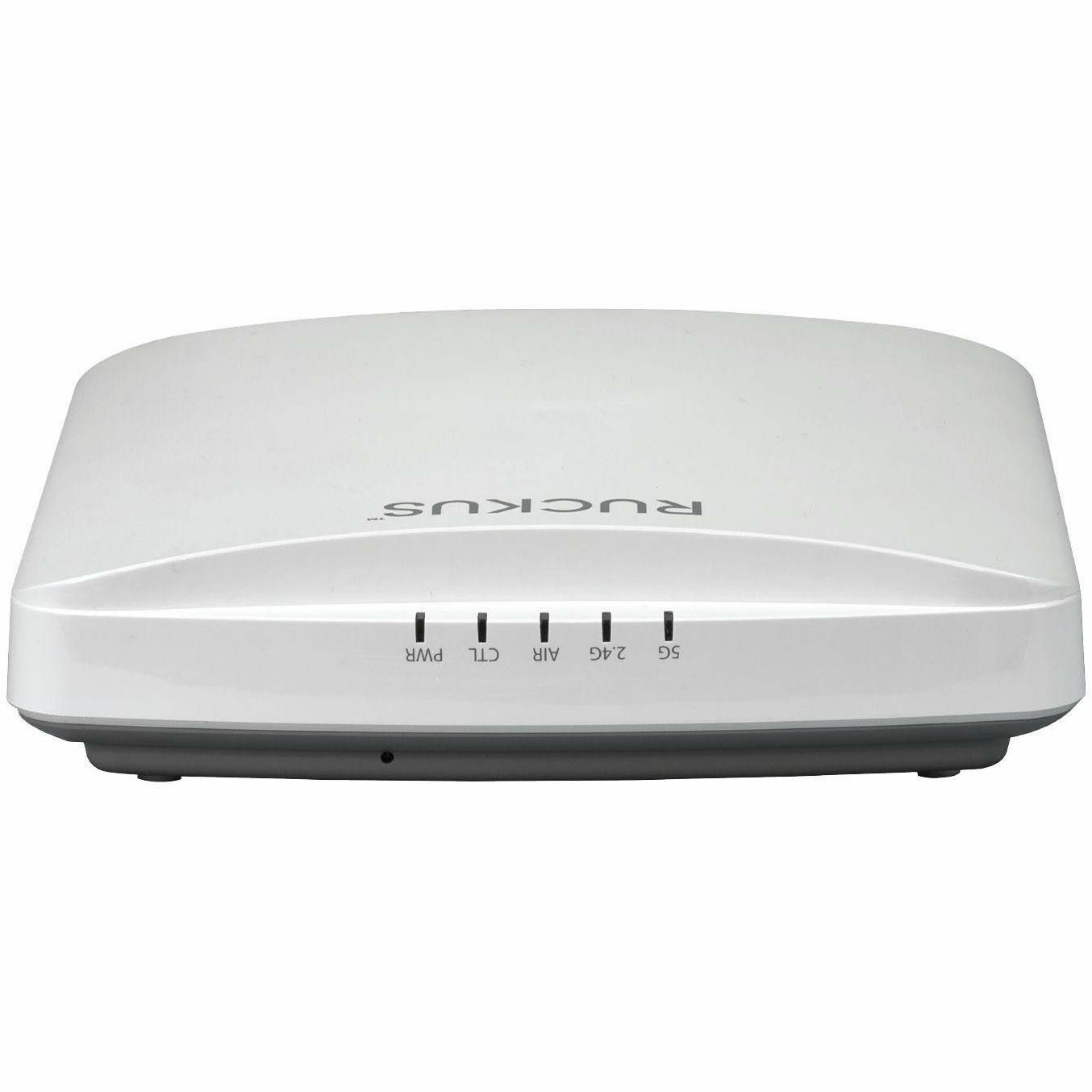

RUCKUS WIRELESS 9U1-R650-WW00 Ruckus R650 - Unleashed - wireless access point - 802.11ax - Wi-Fi - 2.4 GHz, 5 GHz

Wi-Fi capacity requirements in office buildings, classrooms, and retail venues are rapidly raising due to increase in Wi-Fi connected devices, non-Wi-Fi IoT devices and bandwidth-hungry applications.
The R650 access point (AP) with the latest Wi-Fi 6 (802.11 ax) technology delivers increased capacity, improved coverage and performance in dense environments. The R650 is our midrange dual-band, dual-concurrent AP that supports six spatial streams (4x4:4 in 5GHz, 2x2:2 in 2.4GHz). The R650 supports peak data rates of up to 2974 Mbps and efficiently manages up to 512 clients connections. Furthermore, 2.5GbE Ethernet ensures the backhaul will not be a bottleneck for full use of available Wi-Fi capacity.
Also, wireless requirements within enterprises are expanding beyond Wi-Fi with BLE, Zigbee and many other non-Wi-Fi wireless technologies resulting in creation of network silos. Enterprises need a unified platform to eliminate network silos. The Ruckus AP portfolio is equipped to solve these challenges.
The R650 has built-in IoT radios with onboard BLE and Zigbee capabilities. In addition, the R650 is a converged access point that allows customers to seamlessly integrate any new wireless technologies with the pluggable IoT module.
The R650 is packed with ruckus patented technologies in addition to Wi-Fi 6 features such as OFDMA, MU-MIMO and TWT. The R650 is ideal for medium-density deployments such as office buildings, K-12 classrooms, libraries and retail venues.
The R650 Wi-Fi 6 AP incorporates patented technologies found only in the Ruckus Wi-Fi portfolio.

• BeamFlex+ Antennas: Extended coverage and optimized throughput with patented multidirectional antennas and radio patterns
• ChannelFly: Improved throughput with dynamically changing the channels to use least congested channel
• Ruckus Ultra-High-Density Technology Suite: Dramatically improved network performance with technologies such as Airtime Decongestion, Transient Client Management etc.

Whether you are deploying ten or ten thousand APs, the R650 is also easy to manage through Ruckus' physical and virtual management options.

General Information
Manufacturer	CommScope, Inc
Manufacturer Part Number	9U1-R650-WW00
Manufacturer Website Address	http://www.commscope.com
Brand Name	CommScope
Product Model	R650
Product Name	R650 Wireless Access Point
Product Type	Wireless Access Point
Technical Information
Wireless LAN Standard	802.11ax
Network Band	Dual Band
Frequency Band	2.40 GHz
Frequency Band	5 GHz
Indoor/Outdoor	Indoor
Wireless Transmission Speed	2.90 Gbit/s
MIMO Technology	Yes
Beamforming Technology	Yes
Data Encryption	Yes
Encryption Standard	WPA-PSK
Encryption Standard	WPA3
Encryption Standard	WPA2-AES
Encryption Standard	TKIP
Interfaces/Ports
Ethernet Technology	2.5 Gigabit Ethernet
Number of Network (RJ-45) Ports	2
PoE PD Port	Yes
USB	Yes
Physical Characteristics
Form Factor	Wall Mountable
Form Factor	Ceiling Mountable
Form Factor	Desktop
Form Factor	T-bar Mount
Antenna Form Factor	Internal
Height	1.9"
Width	7.6"
Depth	8.8"
Weight (Approximate)	1.88 lb
