D-LINK

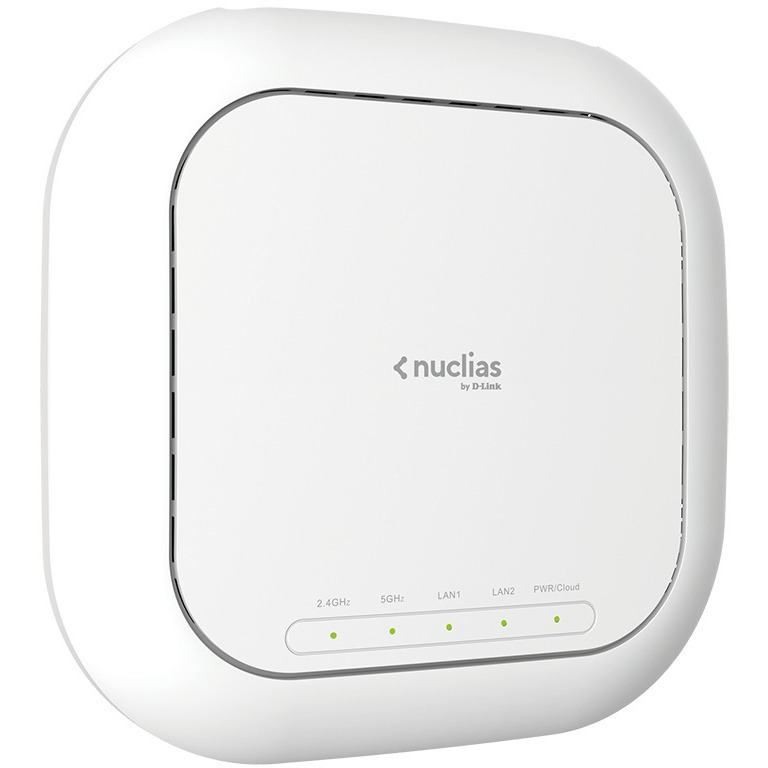

D-Link Nuclias DBA-2520P - Wireless access point - 802.11ac Wave 2 - Wi-Fi - 2.4 GHz, 5 GHz - wall / ceiling mountable

Mfg Part Number:  DBA-2520P
Image may not reflect the actual item.
Price: $269.00
Quantity:
In Stock: 25
Last Updated: Aug 16, 2025
No Sales Tax except these states
, PO and Wire.

Cloud Networking, Refreshed

The DBA-2520P Access Point (AP) is part of the Nuclias Cloud solution - D-Link's complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of IT infrastructure as simple and hassle-free as possible.

Built for Heavy Workloads

The DBA-2520P delivers high-speed wireless AC (Wave 2) connection reliably, with maximum wireless signal rates of up to 1.9Gbps, and 3 x 3 MIMO (three spatial streams). Performance is further optimized via the Nuclias Cloud platform which adjusts the DBA-2520P's channel selection, transmission power, and maximum number of client connections.

Advanced Management & Security

The Nuclias Cloud interface gives lets admins easily manage Layer-2 features, such as VLANs and Spanning Tree Protocol (STP). With SSID isolation, MAC address filtering, and end-to-end encryption, this is a versatile solution for those seeking easy configuration, without added complexities.

Full PoE Support

The DBA-2520P Access Point supports Power over Ethernet (IEEE 802.3at standard) for its Gigabit LAN port. Power over Ethernet greatly simplifies the installation of compatible devices such as VoIP phones and IP cameras in remote locations that lack easy access to a power outlet.

Main Specification
General Information
Manufacturer D-Link Systems, Inc
Manufacturer Part Number DBA-2520P
Manufacturer Website Address http://www.dlink.com
Brand Name D-Link
Product Line Nuclias
Product Series DBA
Product Model DBA-2520P
Product Name Nuclias Cloud-Managed AC1900 Wave 2 Access Point
Product Type Wireless Access Point
Technical Information
Wireless LAN Standard IEEE 802.11ac
Frequency Band 2.40 GHz
Frequency Band 5 GHz
Wireless Transmission Speed 1.90 Gbit/s
MIMO Technology Yes
Interfaces/Ports
Ethernet Technology Gigabit Ethernet
Number of Network (RJ-45) Ports 2
PoE PD Port Yes
Management Port Yes
Physical Characteristics
Form Factor Ceiling Mountable
Form Factor Desktop
Form Factor Wall Mountable
Height 8.8"
Width 8.8"
Depth 2"
Weight (Approximate) 1.79 lb
Miscellaneous
Energy Star Yes
Country of Origin Taiwan
Warranty
Limited Warranty Lifetime
