KIOXIA

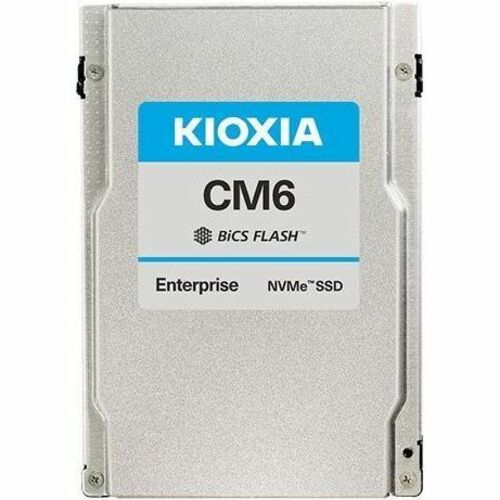

Kioxia SSD KCM6XRUL3T84 CM6-R 3840G PCIe4.0 NVMe1.4 2.5 SIE BiCS FLSH TLC
Mfg Part Number: KCM6XRUL3T84 , Item #: 4249645
Image may not reflect the actual item.
Price: $1,247.76
+ Free Shipping
Quantity:
More to Come
Last Updated: Jul 27, 2025
No Sales Tax except these states
, PO and Wire.
KIOXIA CM6-R series is a read intensive SSD that is optimized to support a broad range of enterprise applications and associated workloads, including business intelligence, online transaction processing, and software defined storage and virtualization. Built on PCIe® 4.0 and NVMe™ 1.4 technology, the CM6 Series SSDs deliver excellent performance up to 1.4M IOPS (random read), with maximum power consumption of 25 W.
Featuring KIOXIA Corporation's 96-layer BiCS FLASH™ 3D TLC memory, the CM6-R Series of enterprise NVMe™ SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and support storage capacities up to 30.72 TB, making them ideally suited for read intensive enterprise applications.
Key Features
- PCIe®4.0, NVMe™ 1.4 specification compliant
- Form factor: 2.5-inch, 15mm Z-height
- Proprietary KIOXIA architecture: controller, firmware and BiCS FLASH™ 96-layer 3D TLC memory
- SFF-TA-1001 conformant (U.3)
- Dual-port design for high availability applications
- 6th generation, two-die failure recovery and double parity protection
- High performance with lower power consumption
- Power loss protection (PLP) and end-to-end data protection
- Suited for 24x7 enterprise workloads
- Security options: SIE, SED, FIPS 140-2
- Six power mode settings
Key Applications
- Software defined storage and virtualization
- Data warehousing
- Online transaction processing (OLTP)
- (transactional and relational databases)
- Business intelligence
- Artificial intelligence and machine learning
Main Specification
| General Information | |
| Manufacturer | Toshiba |
| Manufacturer Part Number | KCM6XRUL3T84 |
| Manufacturer Website Address | http://www.toshiba.com |
| Brand Name | KIOXIA |
| Product Series | CM6-R |
| Product Model | KCM6XRUL3T84 |
| Product Name | Enterprise NVMe Read Intensive SSD |
| Product Type | Solid State Drive |
| Technical Information | |
| Storage Capacity | 3.75 TB |
| Features | Power Loss Protection (PLP) |
| Features | End-to-end Data Protection |
| Features | Triple-level Cell Flash |
| Drive Performance | |
| Random 4KB Read | 1400000IOPS |
| Random 4KB Write | 170000IOPS |
| Endurance (DWPD) | 1 |
| Endurance Type | Read Intensive |
| Maximum Sequential Read | 6.74 GB/s |
| Maximum Sequential Write | 4.10 GB/s |
| Interfaces/Ports | |
| Drive Interface | PCI Express NVMe |
| Drive Interface Standard | PCI Express NVMe 4.0 x4 |
| Physical Characteristics | |
| Drive Type | Internal |
| Form Factor | 2.5" |
| Height | 0.6" |
| Width | 2.8" |
| Length | 4" |
| Weight (Approximate) | 4.59 oz |
| Miscellaneous | |
| Device Supported | Storage System |
| Device Supported | Server |
| Warranty | |
| Limited Warranty | 5 Year |
