QUAM NICHOLS

QUAM NICHOLS MA/E9/S2/T8 610 CID GRID MOUNT,COMPOSITE BACK BOX ASSEMBLY,8IN O.D. SPEAKER,4W-70V ROTARY SE

Mfg Part Number:  MA/E9/S2/T8
Image may not reflect the actual item.
Price: $114.73 + Free Shipping
Quantity:
More to Come
Last Updated: Sep 24, 2025
No Sales Tax except these states
, PO and Wire.

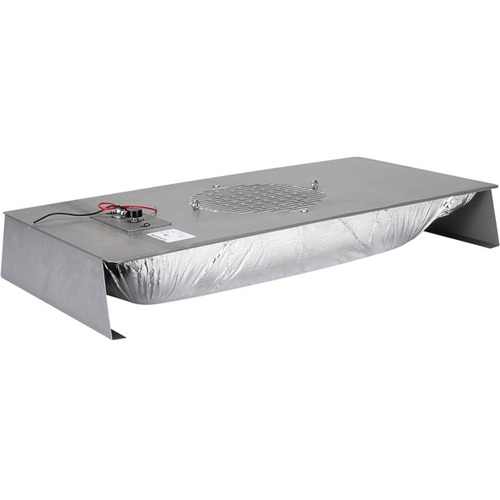

The MA/E9/S2/T8 is an 617 CID, ceiling grid mount, sound masking loudspeaker assembly consisting of an 8C10PAX - 8" O.D. dual cone loudspeaker with a 10 oz. magnet and a 4W-70V rotary select transformer. Support chain is supplied.

Main Specification
General Information
Manufacturer QUAM
Manufacturer Part Number MAE9S2T8
Manufacturer Website Address http://www.quamspeakers.com/
Brand Name Quam
Product Model MA/E9/S2/T8
Product Name MA/E9/S2/T8 Speaker
Product Type Speaker
Technical Information
RMS Output Power 20 W
Minimum Frequency Response 65 Hz
Maximum Frequency Response 17 kHz
Sensitivity 95 dB
Physical Characteristics
Form Factor Ceiling Mountable
Height 3.5"
Width 23.8"
Depth 11.80"
Weight (Approximate) 7 lb
Miscellaneous
Package Contents
  • 8C10PAX - 8" O.D. Dual Cone Loudspeaker
  • TBL70 - 4W-70V Rotary Select Transformer
  • Chain
Application/Usage Indoor
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Country of Origin United States
