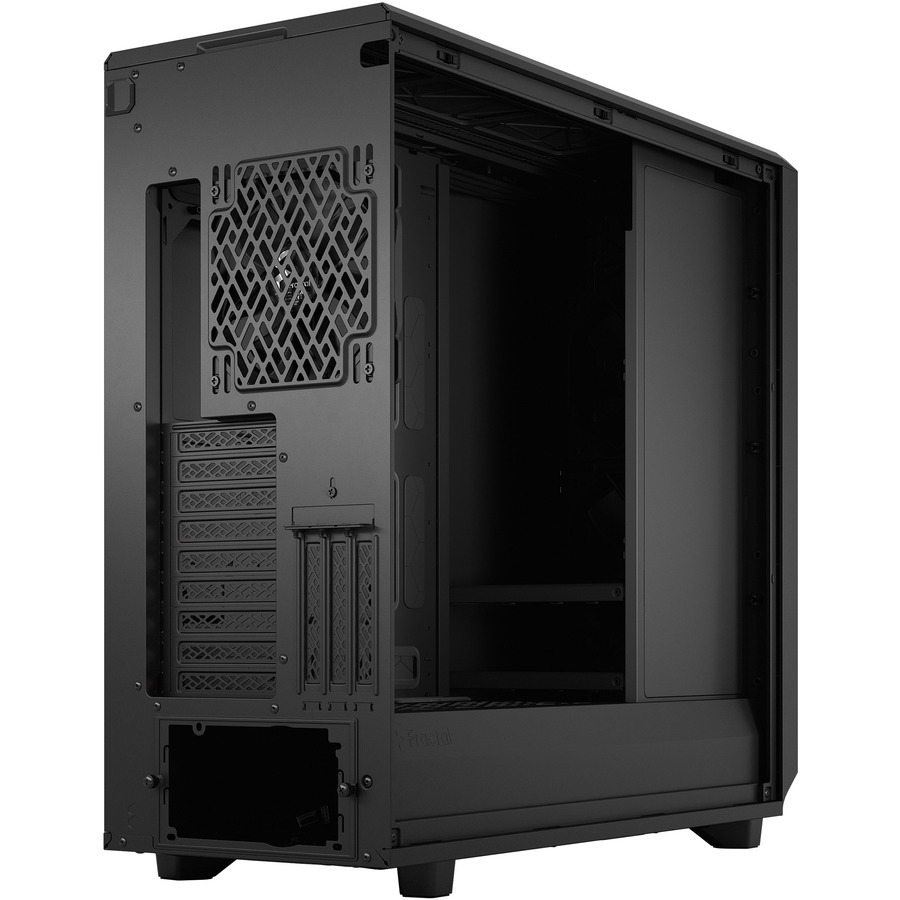

Fractal Design FD-C-MES2X-02 Meshify 2 XL Black ATX Flexible Light Tinted Tempered Glass Window Full Tower Computer Case (Black)

A classic evolved.

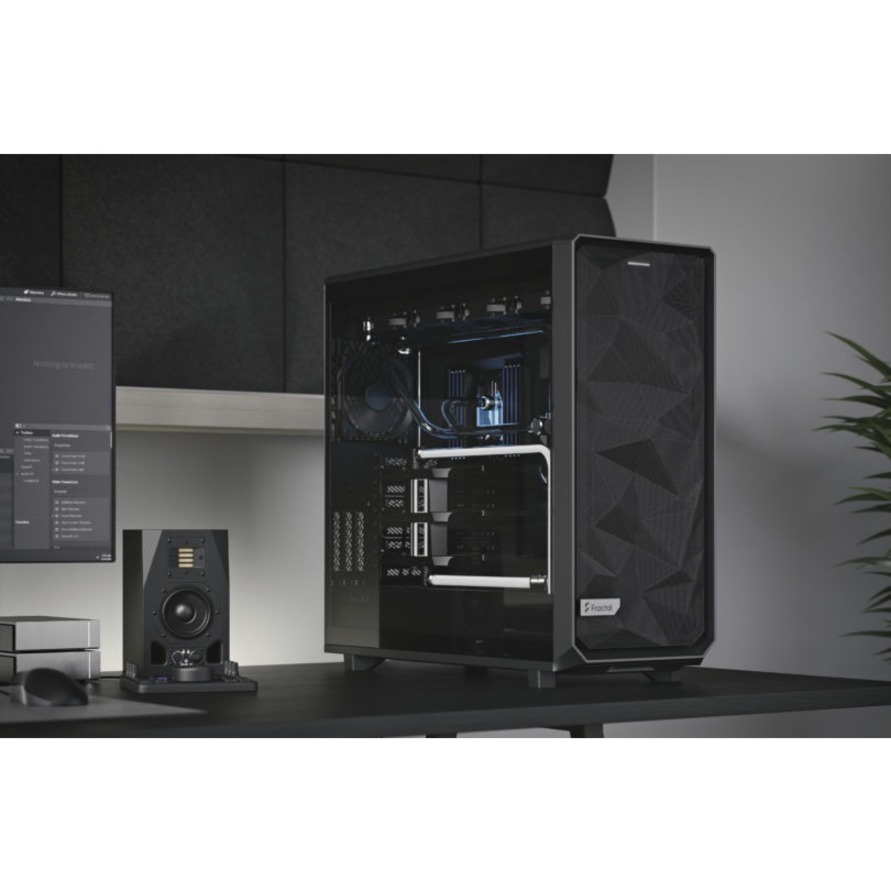

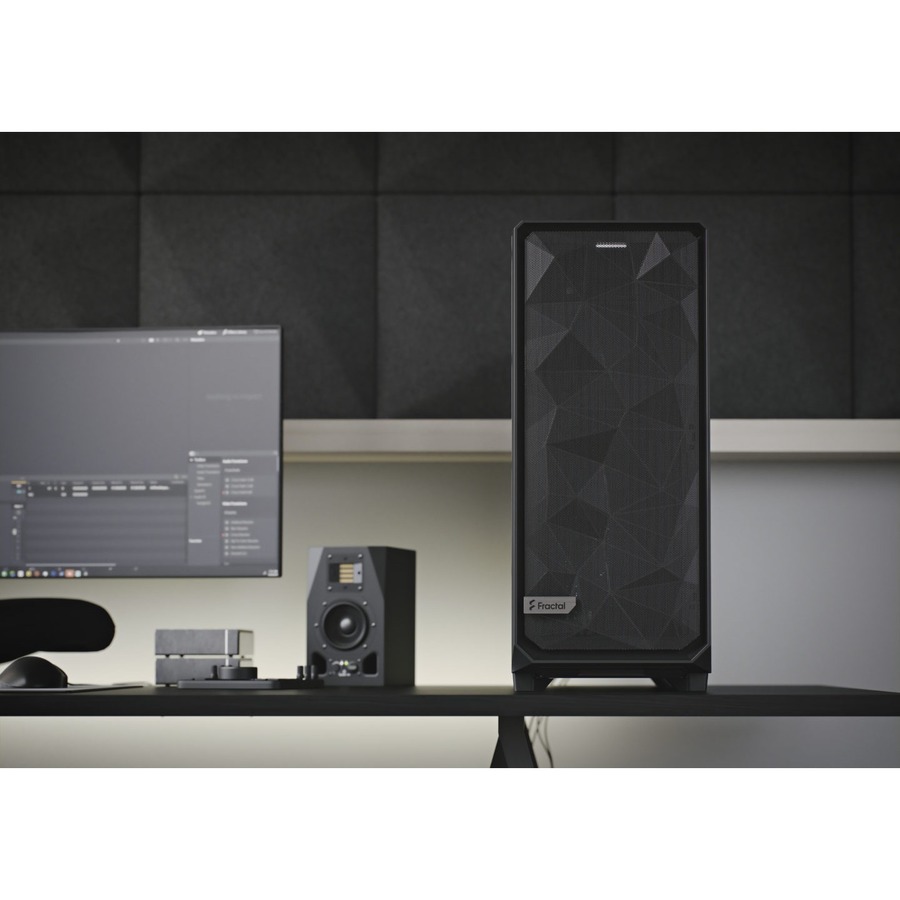

The Meshify 2 XL is a massive high-performance case with a bold, stealth-inspired aesthetic. Its striking exterior features bolt-free, flush tempered glass, a fully removable top granting excellent interior access, and a fully redesigned front complete with USB 3.1 Gen 2 Type-C. The enormous dual-layout interior supports full-sized E-ATX and SSI-EEB boards, gigantic storage arrays and radiators up to 480 mm to make cooling a breeze.

General Information
Manufacturer	Fractal Design
Manufacturer Part Number	FD-C-MES2X-02
Manufacturer Website Address	http://www.fractal-design.com
Brand Name	Fractal Design
Product Line	Meshify 2 XL
Product Name	Meshify 2 XL Computer Case
Product Type	Computer Case
Technical Information
Motherboard Supported	EE-ATX
Motherboard Supported	EATX
Motherboard Supported	ATX
Motherboard Supported	SSI EEB
Motherboard Supported	Micro ATX
Motherboard Supported	SSI CEB
Motherboard Supported	Mini ITX
Number of Fans Supported	11
Number of Fans Installed	3
Installed Fan Size	5.51"
Bays
Number of External 5.25" Bays	0
Number of Internal 5.25" Bays	0
Number of Internal 2.5" Bays	2
Number of Internal 2.5"/3.5" Bays	6
Number of Total Expansion Bays	8
I/O Expansions
Total Number of Expansion Slots	12
Interfaces/Ports
Total Number of USB Ports	3
Total Number of Audio In Ports	1
Total Number of Audio Out Ports	1
Power Description
Power Supply Installed	No
Number of Power Supplies Supported	1
Number of Power Supplies Installed	0
Physical Characteristics
Color Family	Black
Product Color	Black
Product Material	Tempered Glass
Product Material	Steel
Form Factor	Tower
Height	22.3"
Width	9.4"
Depth	23.6"
Weight (Approximate)	31.09 lb
Miscellaneous
Package Contents	Meshify 2 XL Computer Case Accessory Box User Manual Screw Box
Country of Origin	China
Warranty
Limited Warranty	2 Year

Specifications

• Mfr Part Number: FD-C-MES2X-02
• Features:

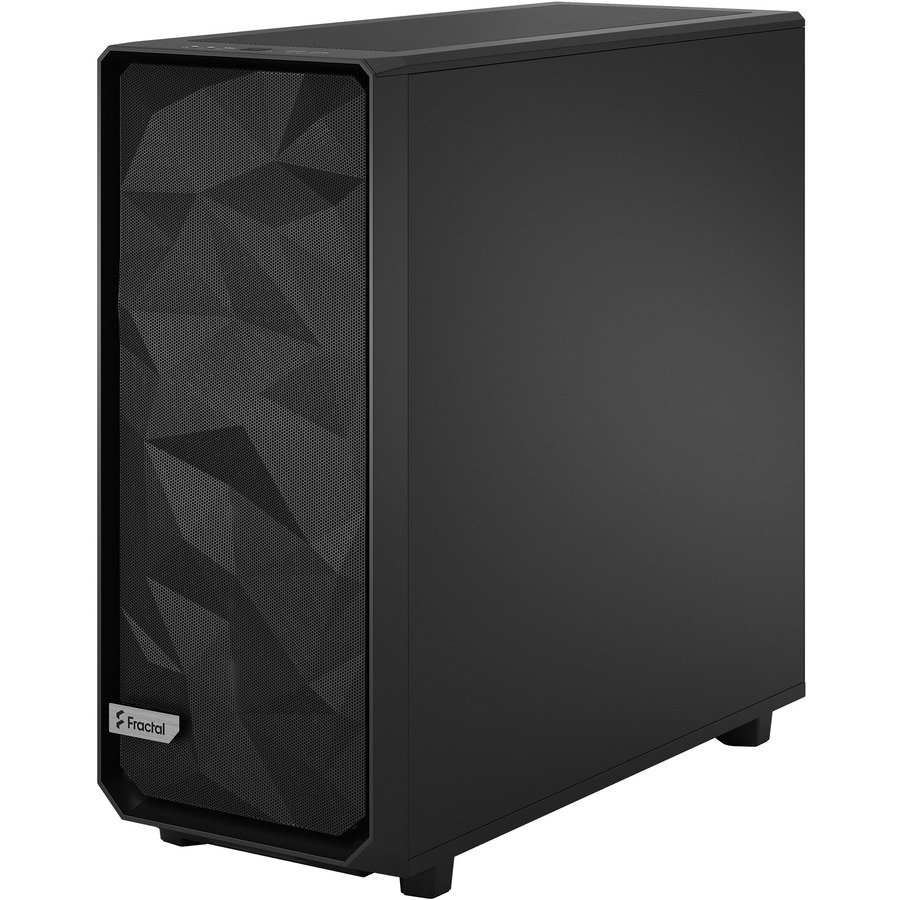

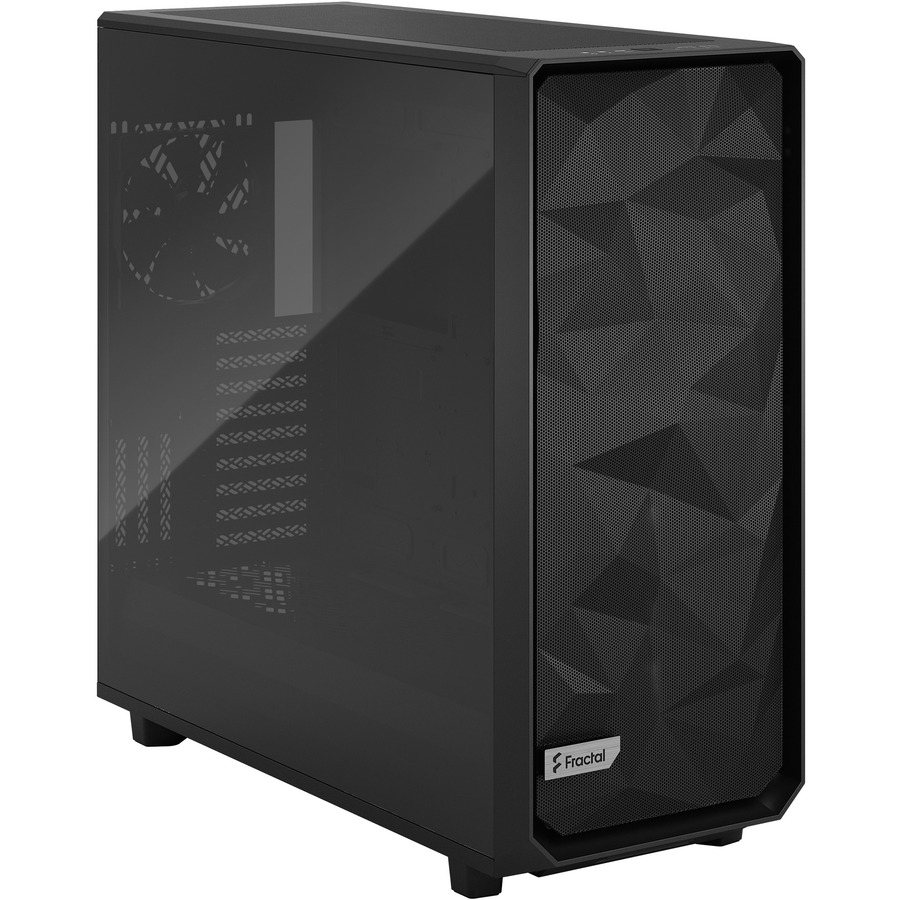

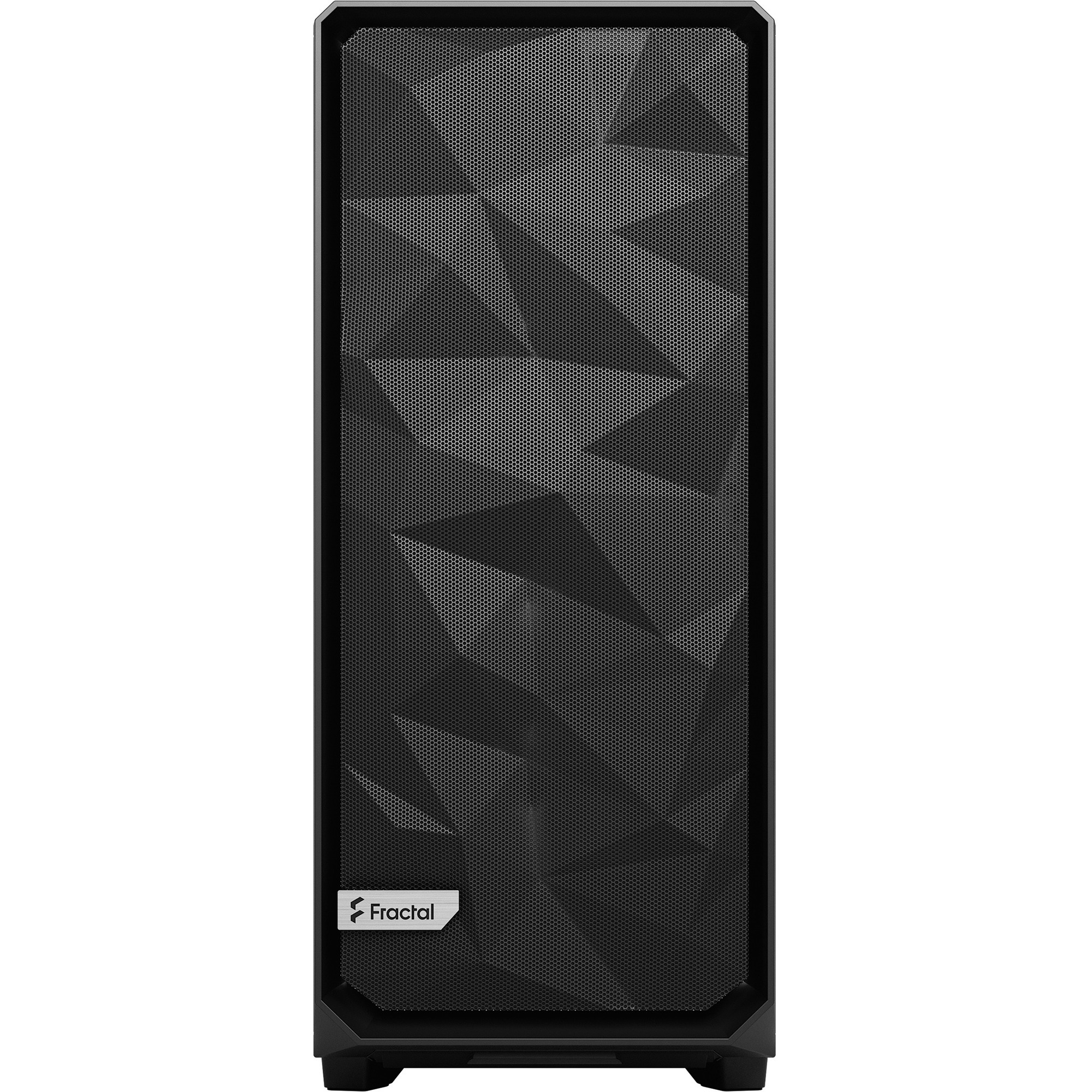

  • Iconic angular mesh design provides filtered airflow

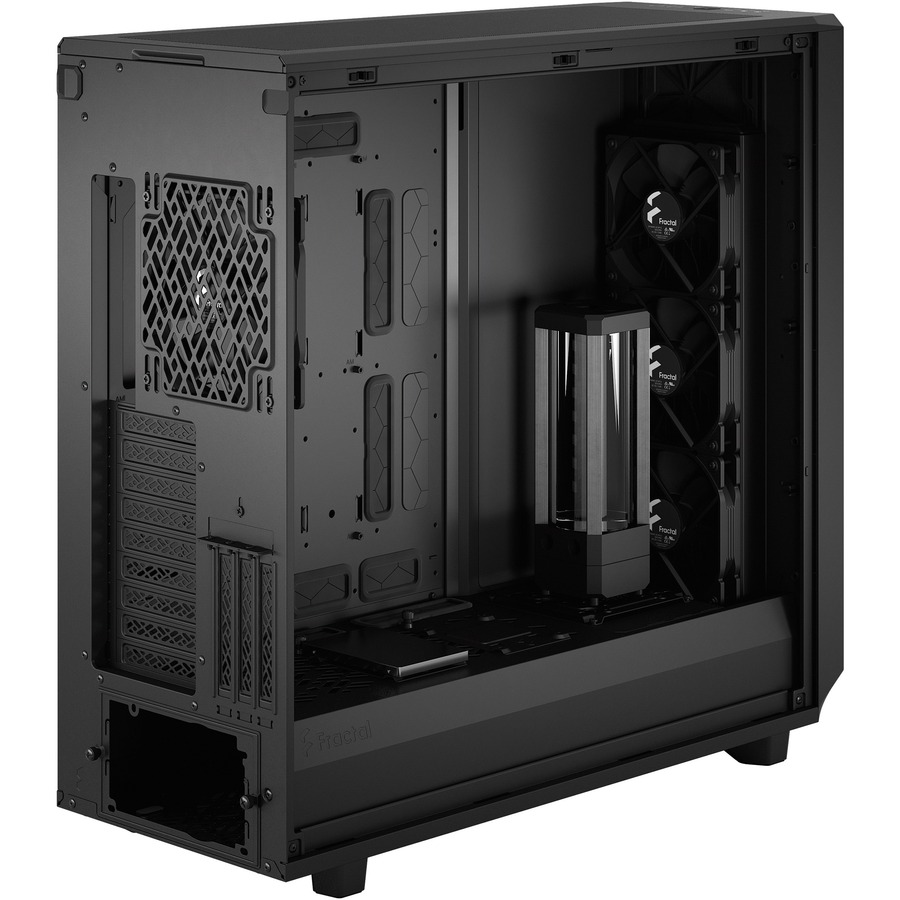

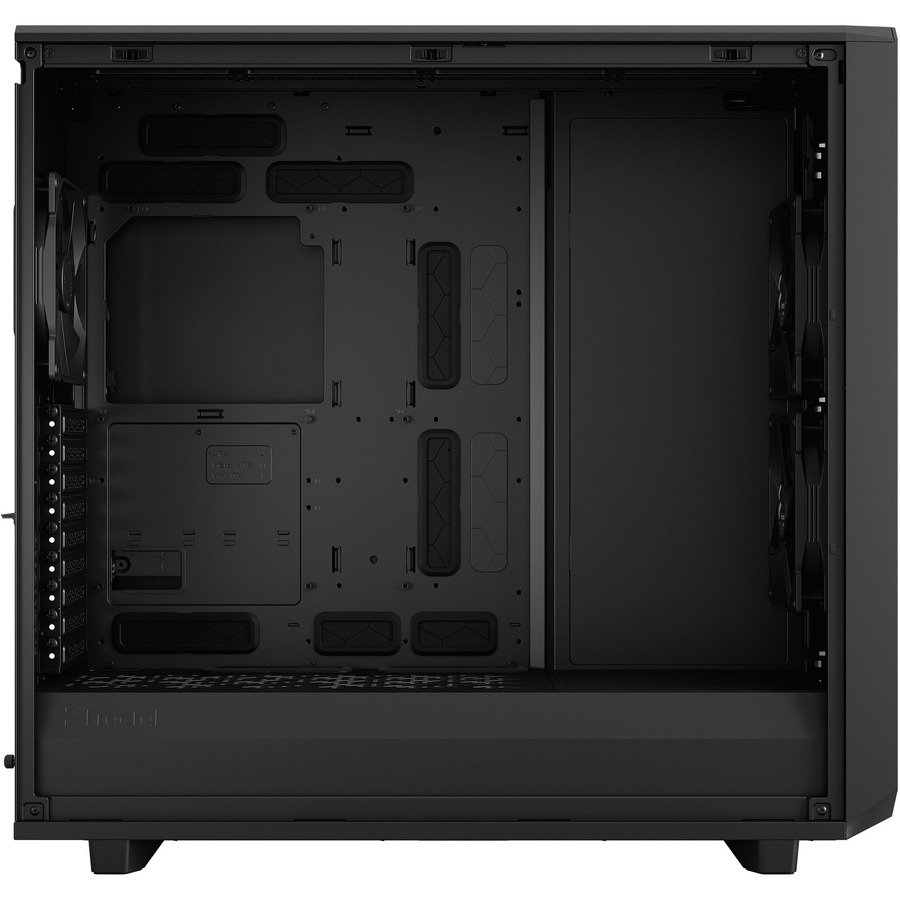

  • Dual-layout interior easily fits motherboards up to E-ATX and SSI-EEB
  • New case design opens up to fully expose interior on three sides

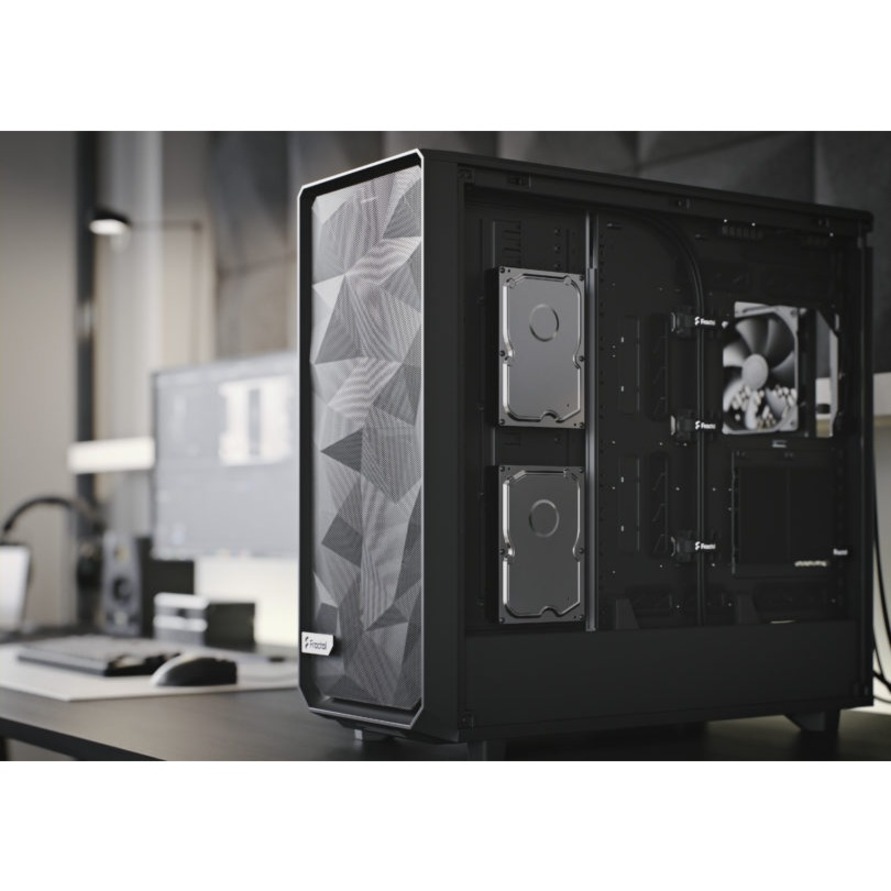

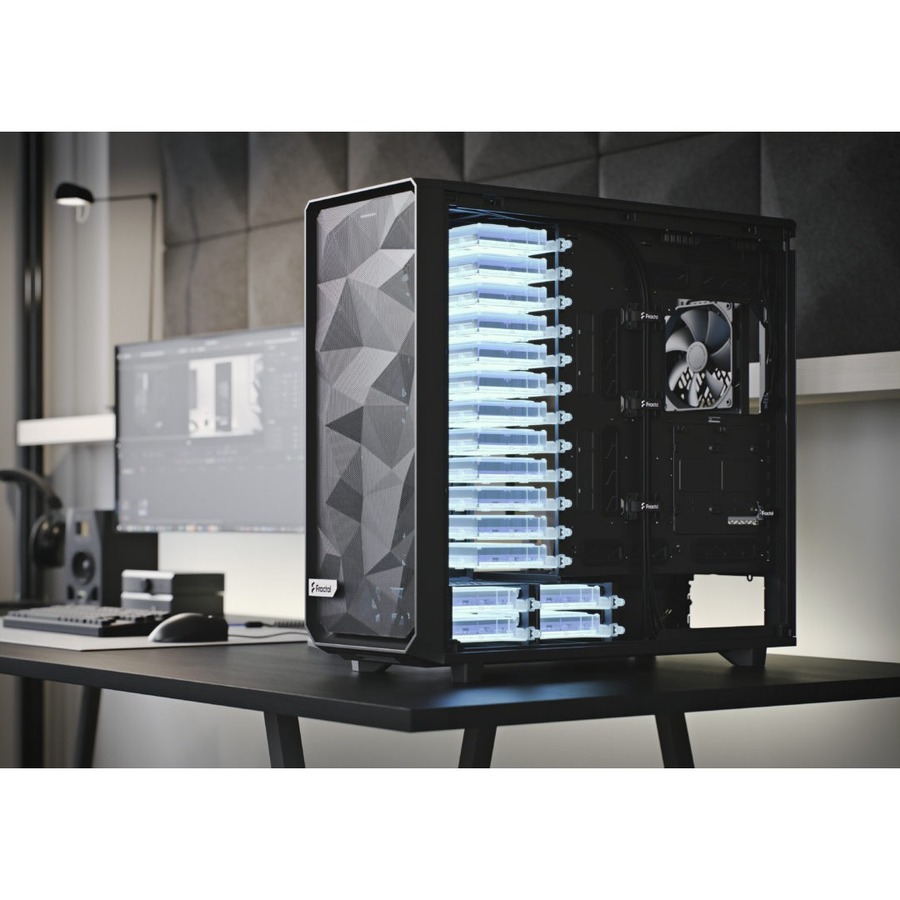

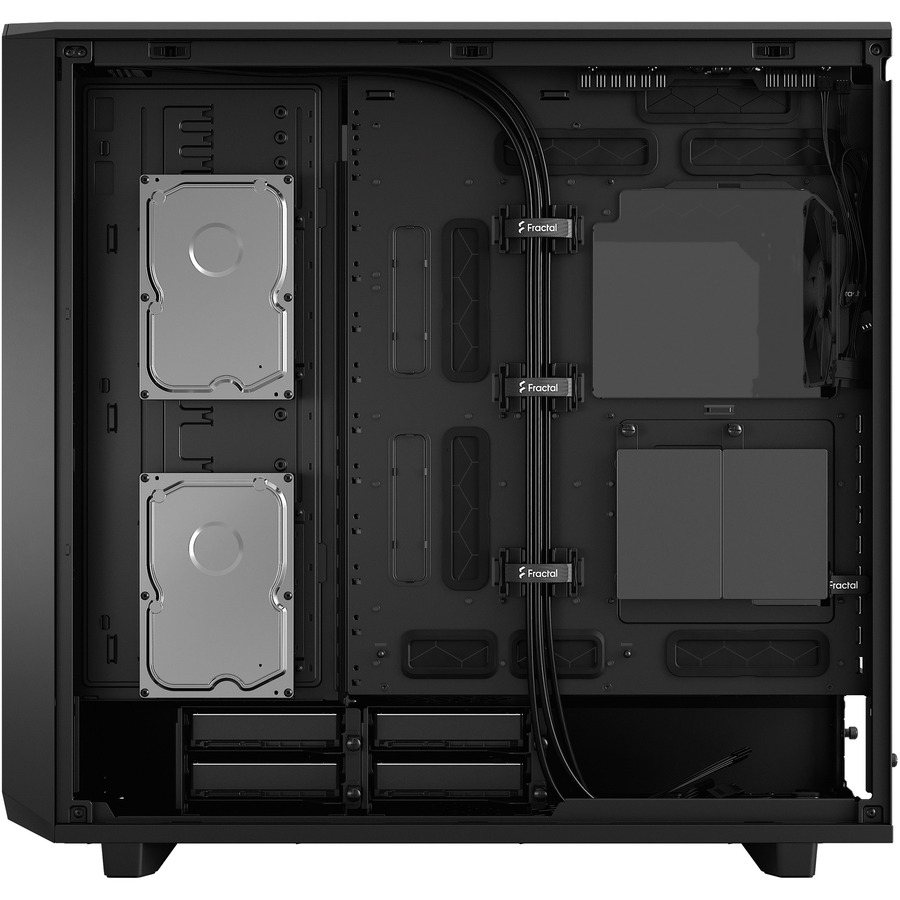

  • Supports up to 18 HDDs and 5 SSD mounts in default Storage Layout
  • Exceptional water cooling with radiators up to 480 mm, front or top
  • 9x 140 mm or 11x 120 mm fan positions
  • Ultra-slim Nexus+ 2 fan hub connects 3x PWM fans and 6x 3-pin fans
  • 3 front USB ports including one USB 3.1 Gen 2 Type-C

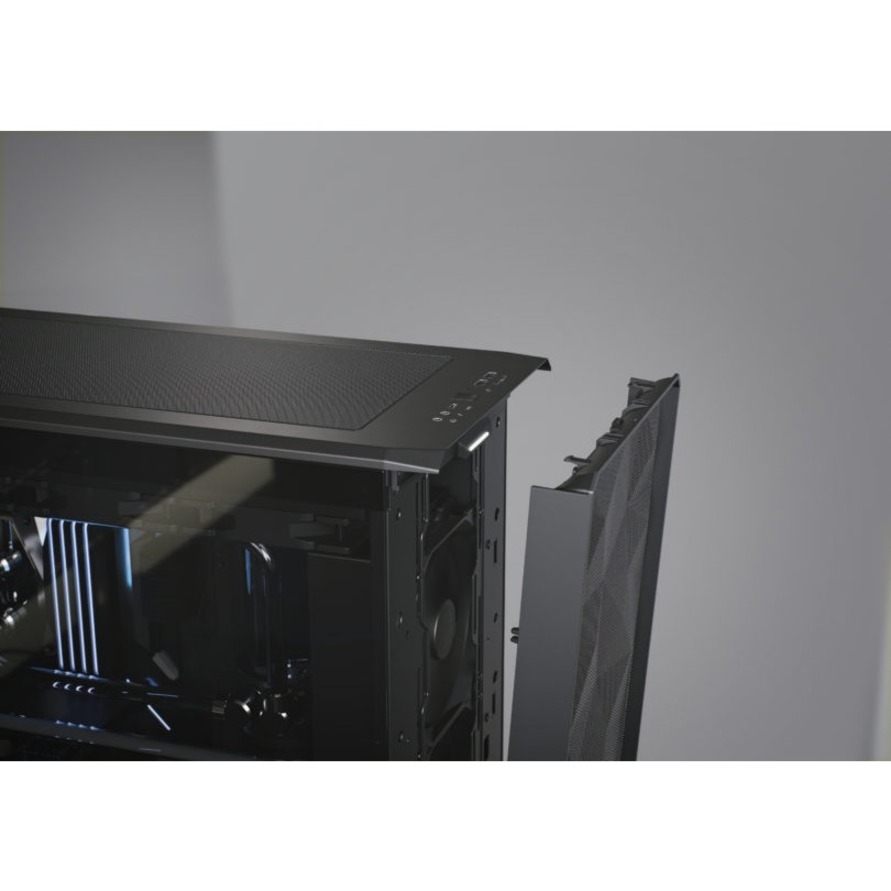

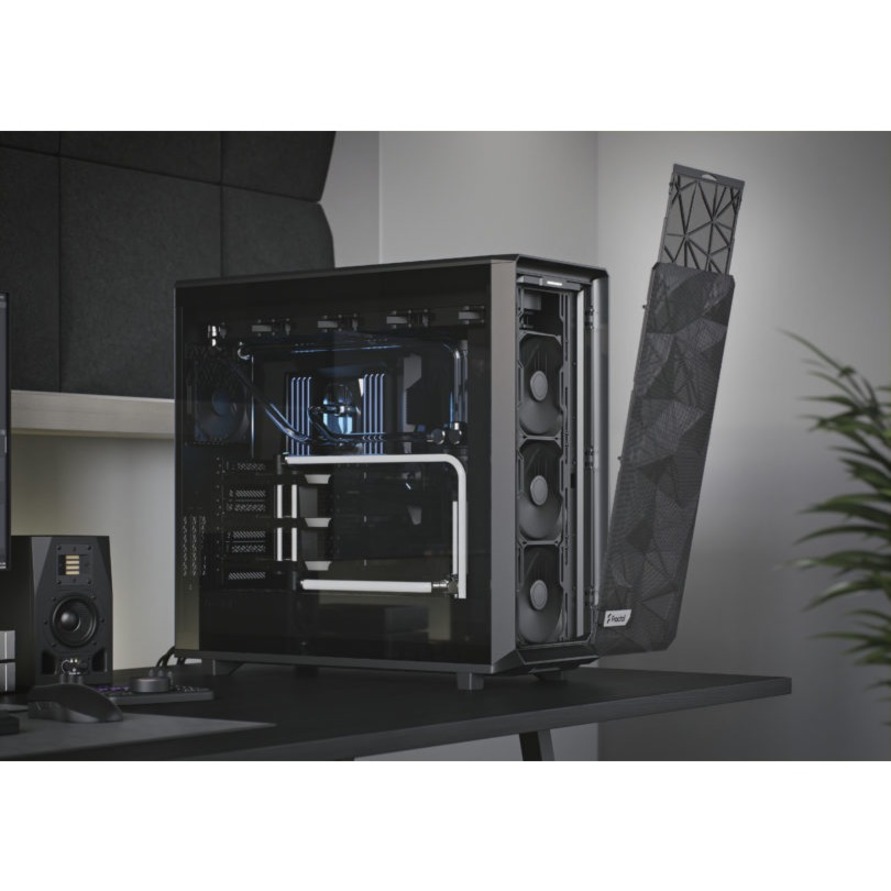

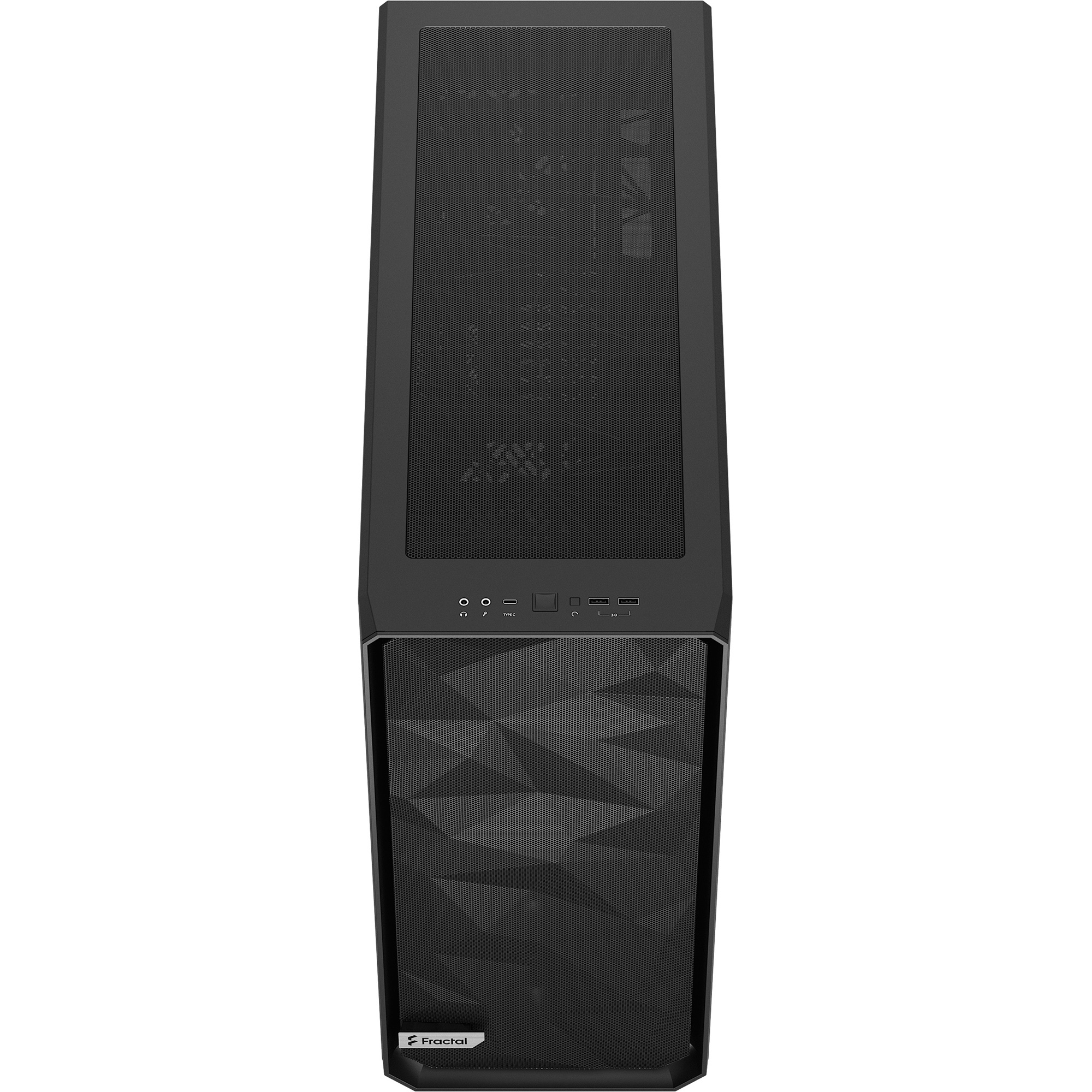

  • New front filter design with hinges for easier fan access

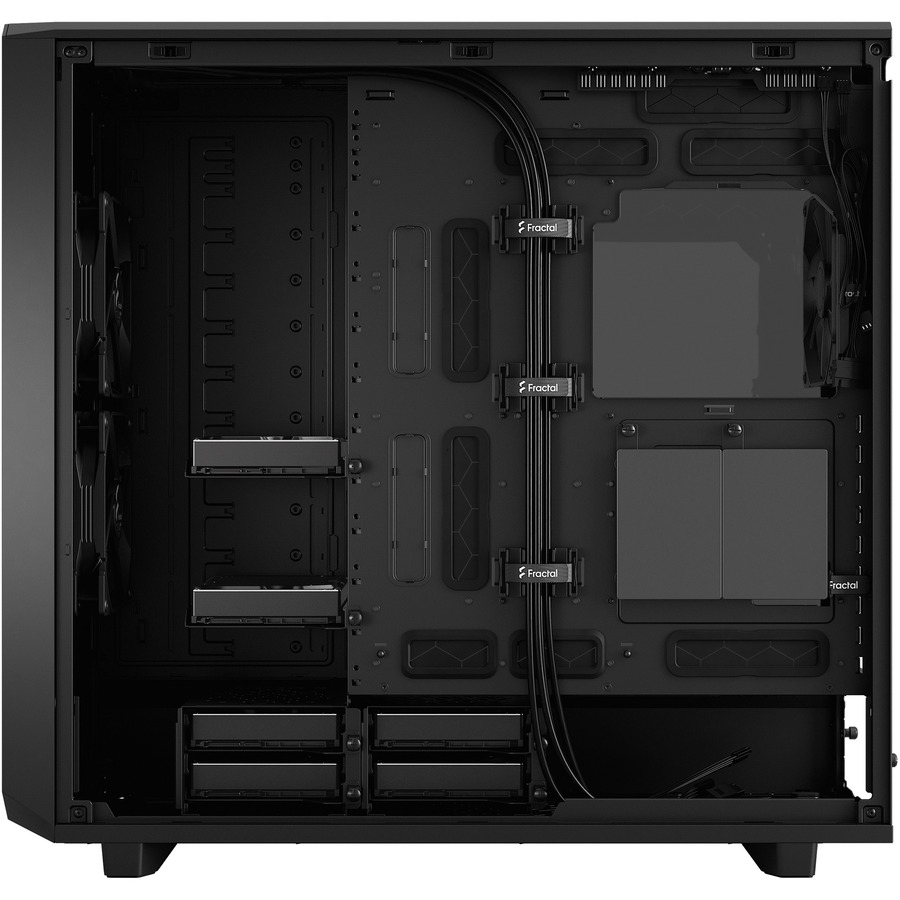

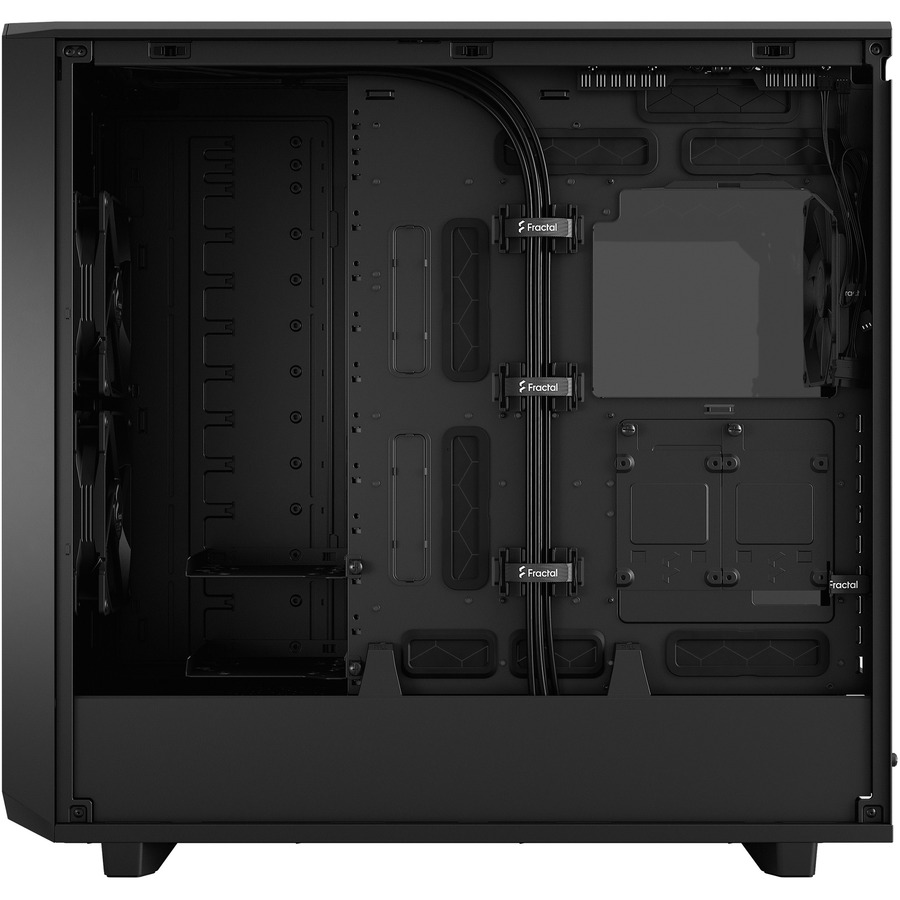

  • Improved cable routing with integrated cable alignment clips and velcro strap
• Case Type: ATX Full Tower
• Color: Black
• Material: Steel
• With Power Supply: No
• Power Supply Mounted: Bottom
• Power Supply: ATX
• M/B Type: E-ATX / ATX / mATX / mITX / EE-ATX / SSI-CEB / SSI-EEB

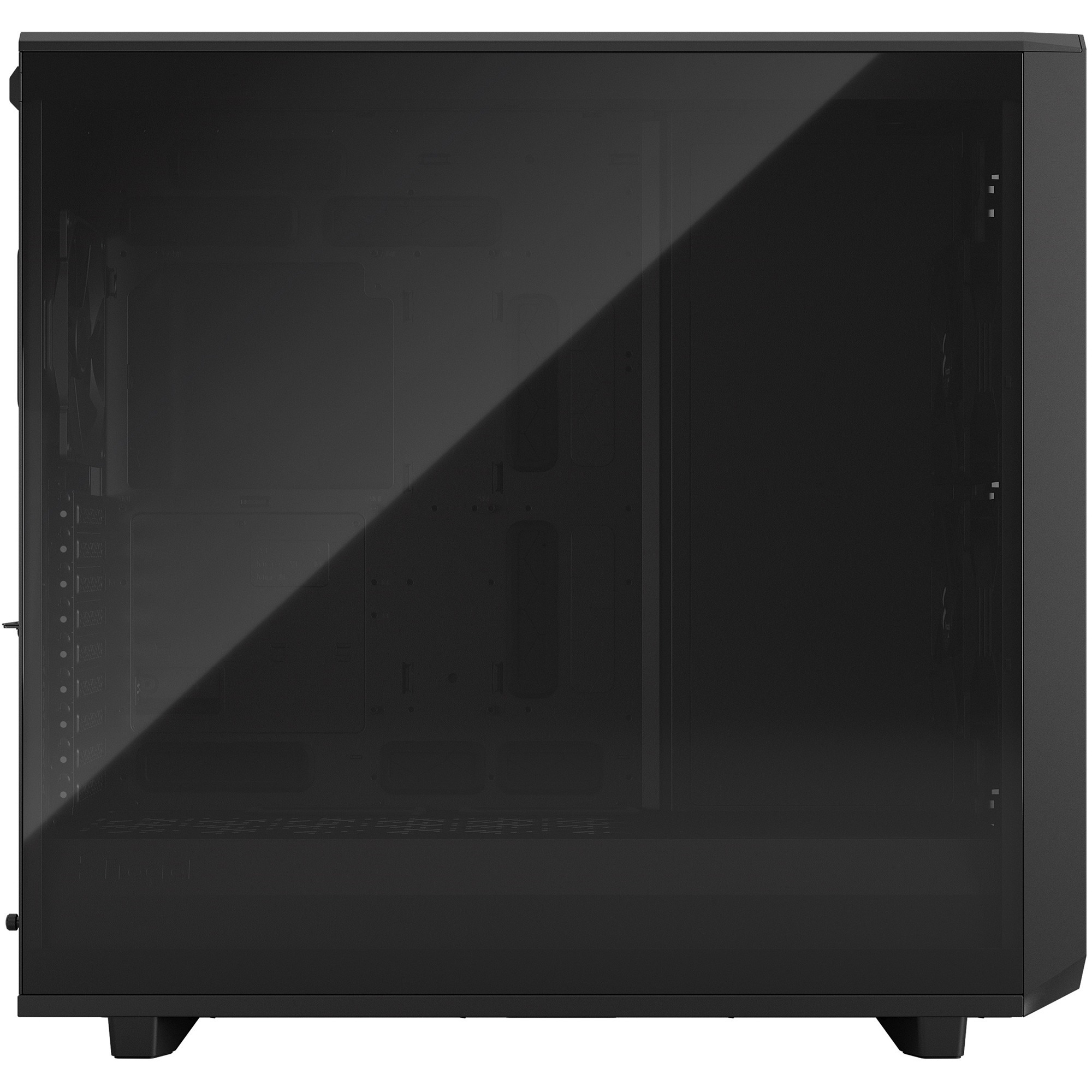

• Side Panel Window:​ Yes
• LED: No
• Removable Filter: Top panel; Front; Bottom, full length
• Drive Bays:
  • External Bay: 0x 5.25"
  • Internal 3.5" Drive Bays: 6 included, 18 positions total + 2 Multibrackets
  • Internal 2.5" Drive Bays: 2 included, 5 positions total

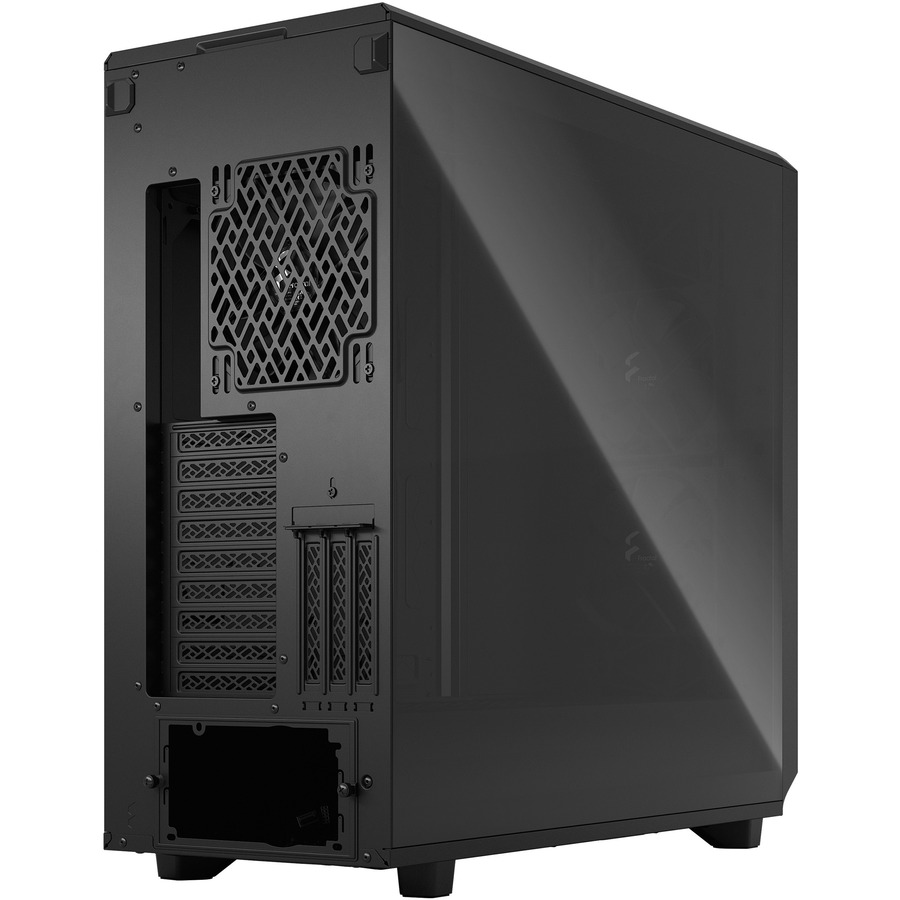

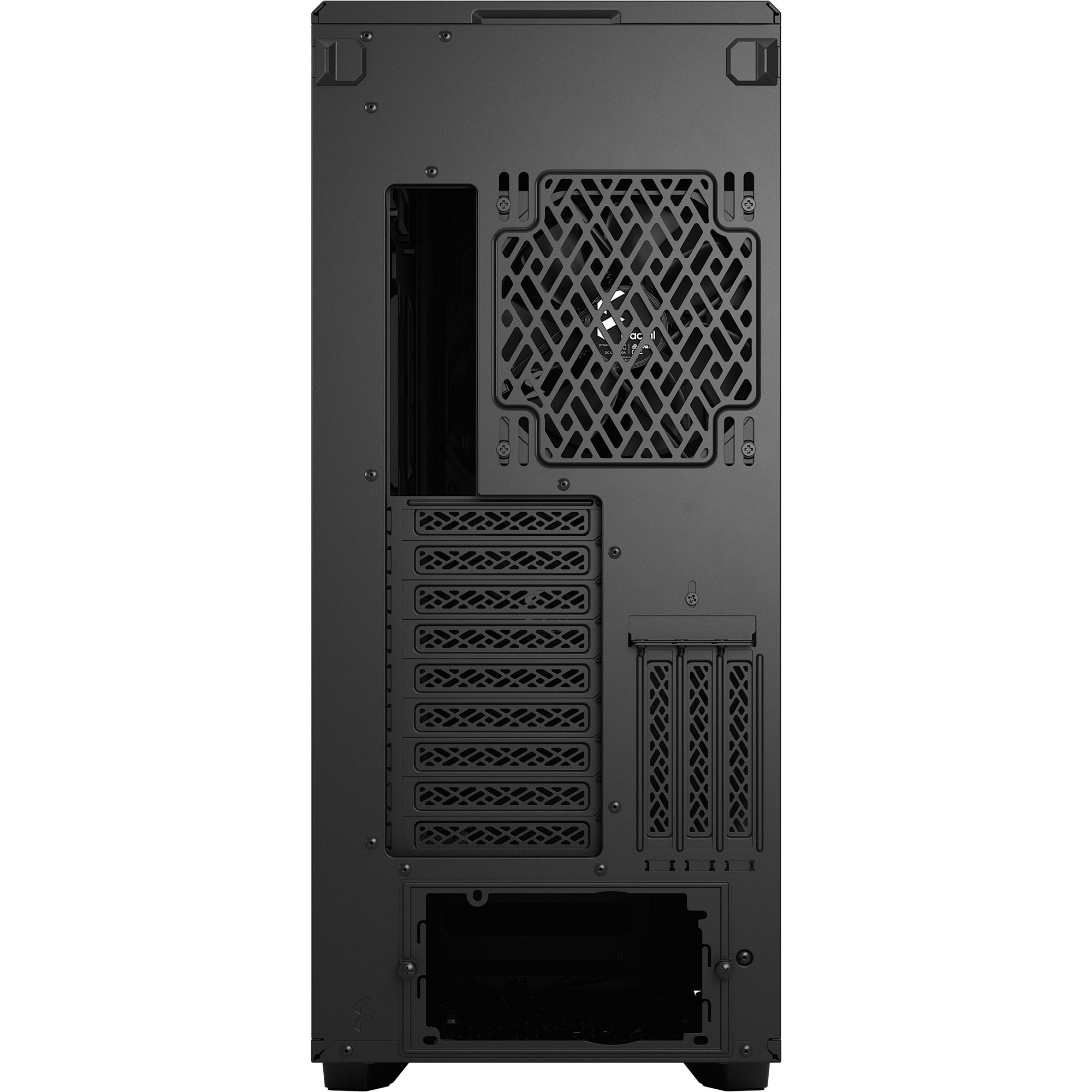

• Expansion Slots: 9 + 3
• Front Ports:1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button
• Fan Options:
  • Total fan mounts: 11 x 120 mm or 9 x 140 mm
  • Front: 4 x 120 mm or 3x 140 mm, (2x Dynamic X2 GP-14 included)
  • Top: 4 x 120 mm or 3 x 140 mm
  • Rear: 1 x 120/140 mm, (1 x Dynamic X2 GP-14 included)
  • Bottom: 2 x 120/140 mm
• Radiator Options:
  • Front: Up to 480/420 mm
  • Top: Up to 480/420 mm
  • Rear: 120 mm
  • Bottom: Up to 240/280 mm
• Dimensions & Weight:
  • Max GPU Length: 549 mm (524 mm w/ front fan)
  • Max CPU Cooler Height: 185 mm
  • Max PSU Length: 250 mm (both HDD cages installed)
  • Case Dimensions (LxWxH): 600 x 240 x 566 mm; 588 x 240 x 547 mm w/o feet/protrusions/screws
  • Weight: 14.1 kg
  • Package Dimensions (LxWxH): 651 x 330 x 684 mm
  • Package Weight: 16.4 kg
• Package Contents:
  • ​Meshify 2 XL Case
  • Accessory box
  • User Manual
  • Screw Box
•  Warranty: 2 years
