GIGABYTE
Gigabyte VCX GV-N3090VISION OC-24GD GeForce RTX 3090 VISION OC 24GB GDDR6X RTL
Mfg Part Number: GV-N3090VISION OC-24GD , Item #: 4229267
, PO and Wire.
FEATURES
NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores
Powered by GeForce RTX™ 3090
Integrated with 24GB GDDR6X 384-bit memory interface
WINDFORCE 3X Cooling System with alternate spinning fans
RGB Fusion 2.0

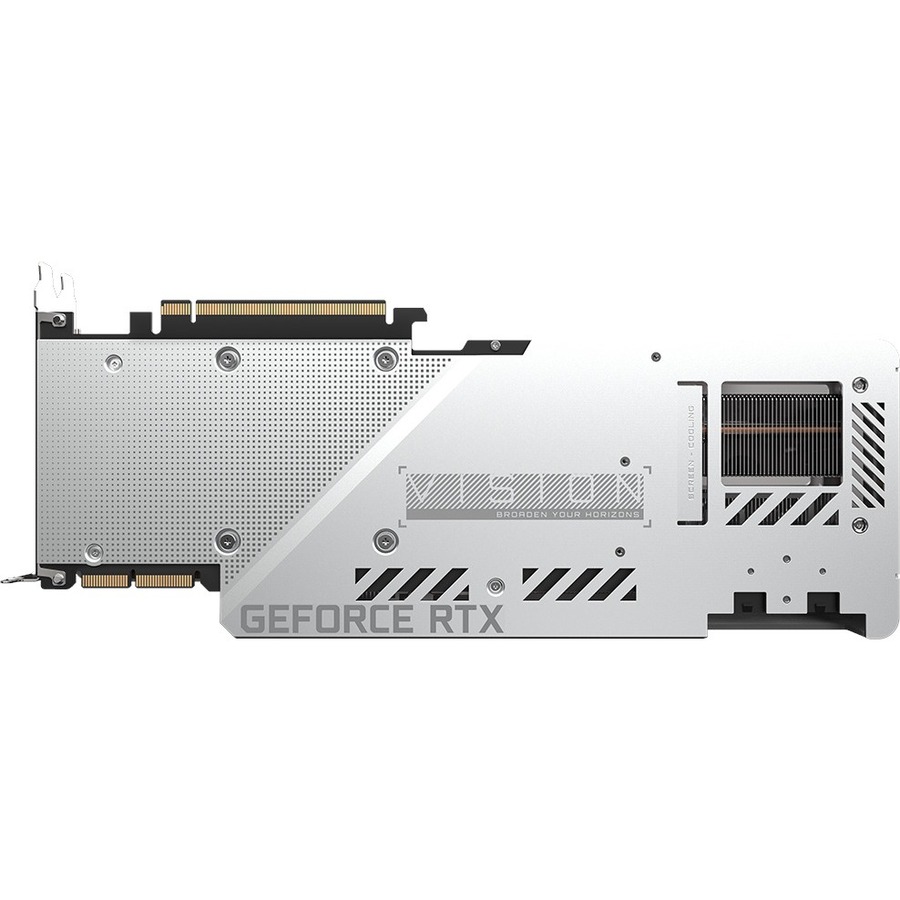

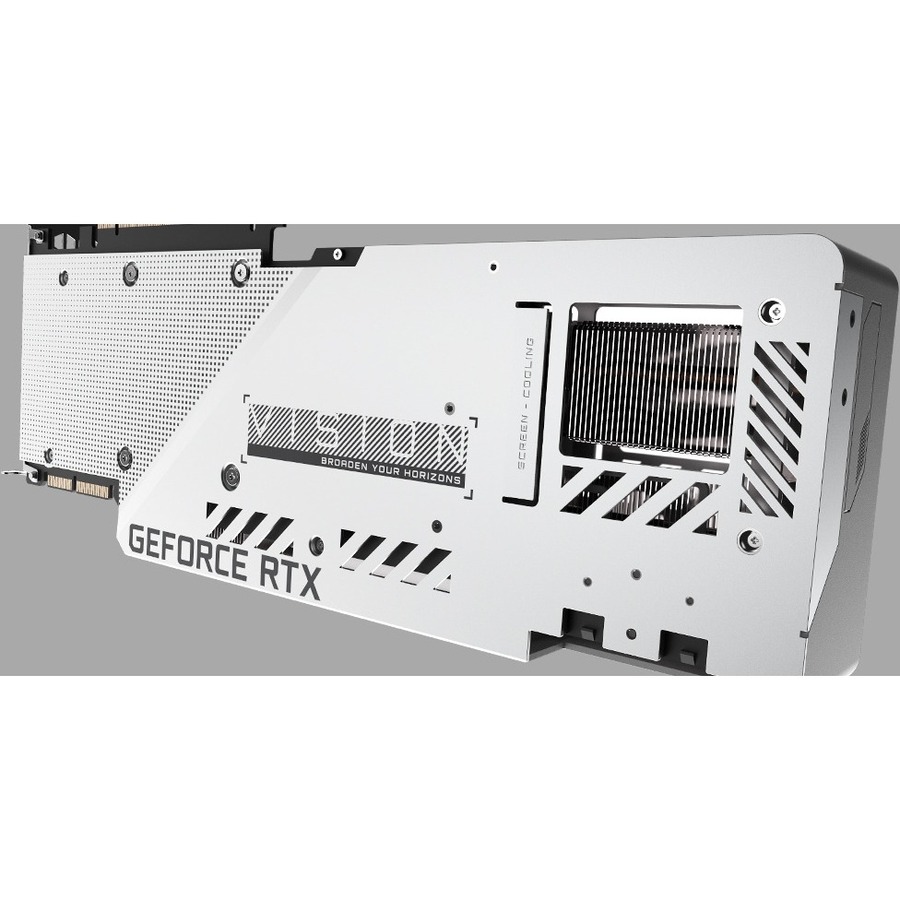

Protection metal back plate
CORE CLOCK
1755 MHz (Reference card: 1695 MHz)
CREATE YOUR WORK FASTER THAN EVER
Powerful GeForce RTX™ 30 VISION series accelerates your work with incredible boosts in performance. Whether you are doing VIDEO EDITING?3D ANIMATION?PHOTOGRAPHY?GRAPHIC DESIGN?ARCHITECTURAL VISUALIZATION or BROADCASTING, it can save you a lot of time.

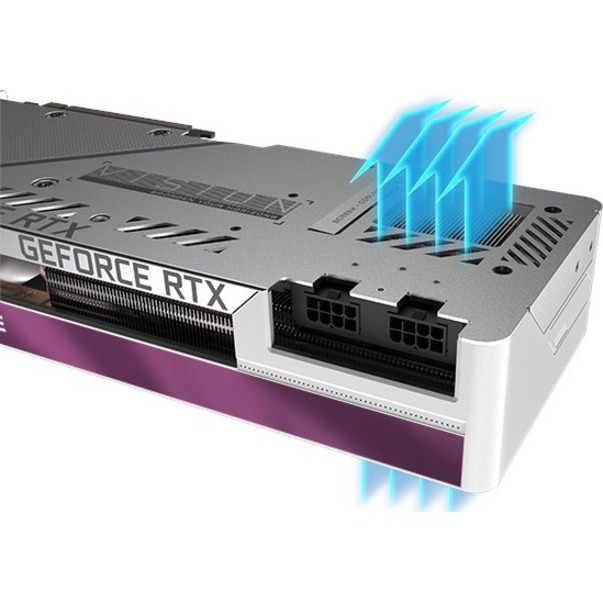

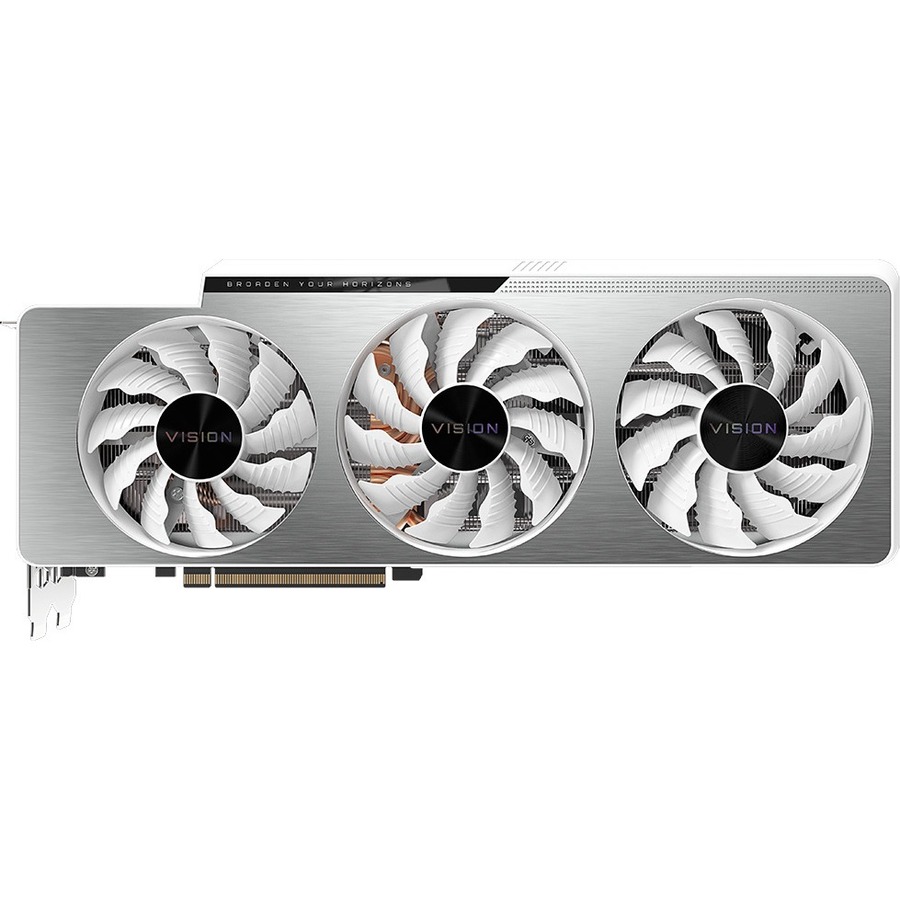

WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 2x 90mm and 1X80mm unique blade fans, alternate spinning, 7 composite copper heat pipes, large copper plate direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.
| General Information | |
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | GV-N3090VISION OC-24GD |
| Manufacturer Website Address | http://www.gigabyte.us |
| Brand Name | Gigabyte |
| Product Model | GV-N3090VISION OC-24GD |
| Product Name | GeForce RTX 3090 VISION OC Graphic Card |
| Product Type | Graphic Card |
| Technical Information | |
| API Supported | OpenGL 4.6 |
| API Supported | DirectX 12 Ultimate |
| Multi-GPU Technology | NVLink |
| Number of Monitors Supported | 4 |
| Processor & Chipset | |
| Chipset Manufacturer | NVIDIA |
| Chipset Line | GeForce |
| Chipset Series | RTX |
| Chipset Model | RTX 3090 |
| GPU Clock | 1.76 GHz |
| Memory | |
| Standard Memory | 24 GB |
| Memory Technology | GDDR6X |
| Bus Width | 384 bit |
| Interfaces/Ports | |
| Host Interface | PCI Express 4.0 x16 |

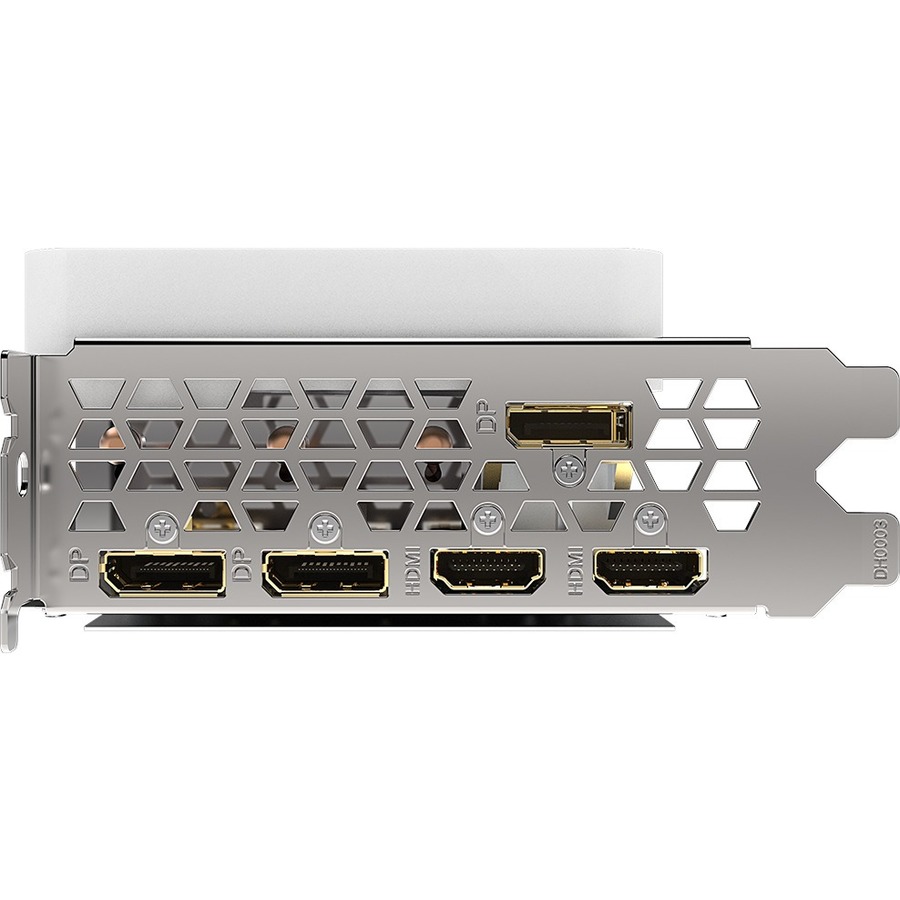

| DisplayPort | Yes |
| Number of DisplayPort Outputs | 3 |
| HDMI | Yes |
| Number of HDMI Outputs | 2 |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Cooler Type | Fan Cooler |
| Height | 2.2" |
| Width | 5" |
| Length | 12.6" |
| Miscellaneous | |
| Package Contents |
|
| Platform Supported | PC |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
