FSP GROUP FSP PS HPT2-1200M Hydro PTM PRO series 1200W Fully Modular 80+ Platinum Retail
Mfg Part Number: HPT2-1200M , Item #: 4229100
, PO and Wire.
Conformal Coating Application
Off-Wet, Off-Dust and Off-Stain
The Hydro PTM PRO series is covered with a conformal coating which protects it from dust, stains, and humidity. The Hydro PTM PRO conformal coating is guaranteed to offer better and reliable performance in harsh environments and is tested to work in environments up to 95% relative humidity.
LLC Full-Bridge Topology with DC-DC Module Design
The HYDRO PTM Pro series adheres to an extremely tight voltage regulation that produces an output voltage under +/- 1% at any load change and offers superior efficiency and voltage stability.

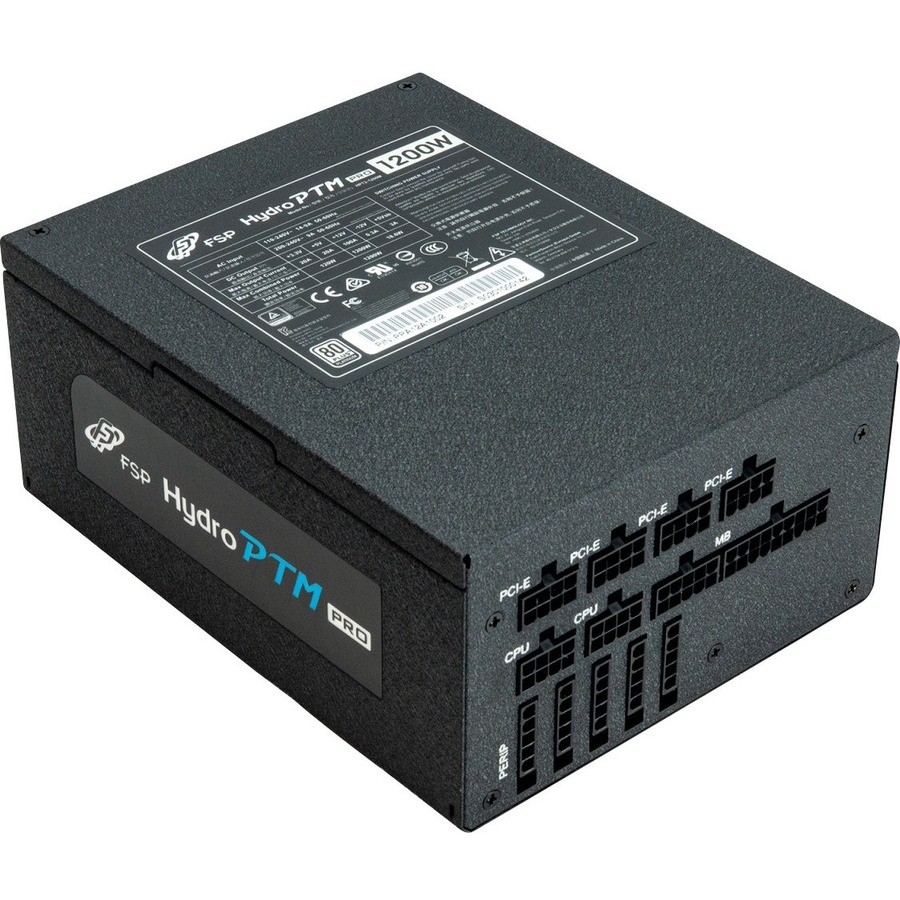

Fully Modular Design for Quick and Easy Installation
The fully modular design simplifies installation and allows you to use only the cables you need for a cleaner and tidier build.

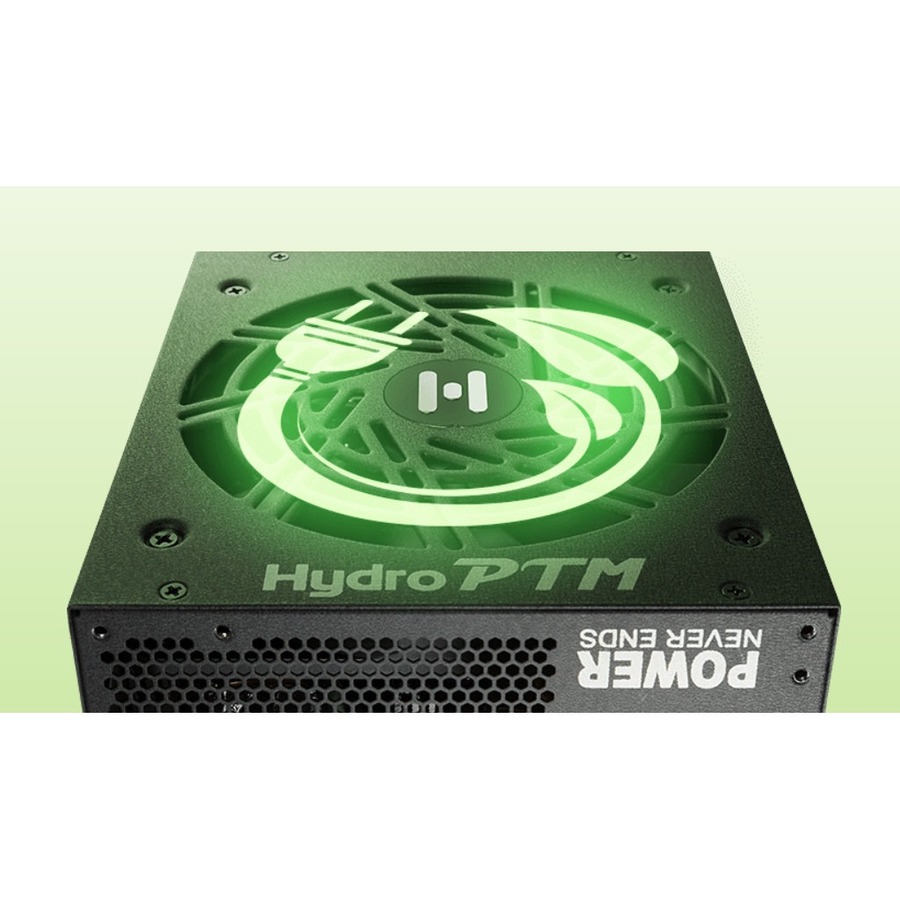

ECO Switch, Quieter and Longer Lasting Fan
The Hydro PTM PRO series offers an Eco Switch that allows the PSU to operate quieter uses up less power consumption. When the power supply is equal to or less than 30% load, the power supply enters a silent state and the fan is turned off.
The HYDRO PTM Pro series comes with FDB fan and an intelligent 0dBA function to reduce noise and has a longer lasting life span.
80 Plus® Platinum Certification
The Hydro PTM Pro series come with 80 Plus Platinum Certification, which means the power supply produces less heat and has a lower operating cost. The power supply is guaranteed to operate at a minimum of 92% efficiency at 50% load of PSU rated power.
Compliance with IEC 62368
FSP Group features the latest in green power technology and provides additional safety approvals to keep its power supplies ahead of regulation changes. FSP has upgraded the majority of its power supplies to the newer IEC 62368 standards.
10-Year Warranty
FSP is committed to manufacturing reliable high-quality power supplies. The Hydro PTM series is backed by our 10-year warranty.
Supports Latest CPU Systems
The Hydro PTM PRO series fully supports high performance systems, and complies with the most recent Intel (ATX12V v2.4 & EPS12V v2.92) and AMD standards.
Safety Protection
OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection), and full guardian circuit protections to keep your hardware safe.
| General Information | |
| Manufacturer | FSP Group USA Corp |
| Manufacturer Part Number | HPT21200M |
| Manufacturer Website Address | http://www.fspgroupusa.com |
| Brand Name | FSP Group |
| Product Line | Hydro PTM PRO |
| Product Model | HPT2-1200M |
| Product Name | Hydro PTM PRO 1200W |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX12V/EPS12V |
| Efficiency | 92% |
| Modular | Yes |

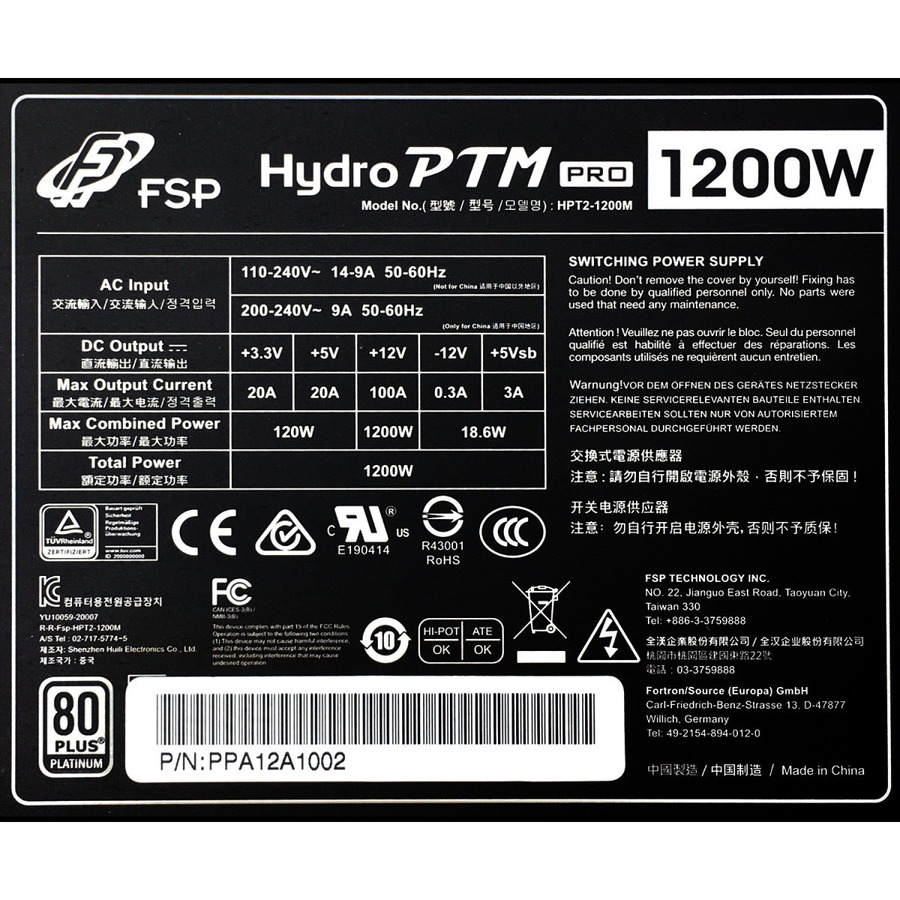

| Power Description | |
| Number of +12V Rails | 1 |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Output Voltage | 12 V DC |
| Output Voltage | 3.3 V DC |
| Output Voltage | 5 V DC |
| Output Voltage | -12 V DC |
| Output Voltage Detail | 5 V DC @ 3 A |
| Output Voltage Detail | 12 V DC @ 100 A |
| Output Voltage Detail | 5 V DC @ 20 A |
| Output Voltage Detail | -12 V DC @ 0.3 A |
| Output Voltage Detail | 3.3 V DC @ 20 A |
| Output Current | 300 mA |
| Output Current | 100 A |
| Output Current | 20 A |
| Output Current | 3 A |
| Output Power | 1200 W |
| Physical Characteristics | |
| Form Factor | ATX |
| Height | 3.4" |
| Width | 7.5" |
| Depth | 5.9" |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | 80 Plus Platinum |
| Warranty | |
| Limited Warranty | 10 Year |
