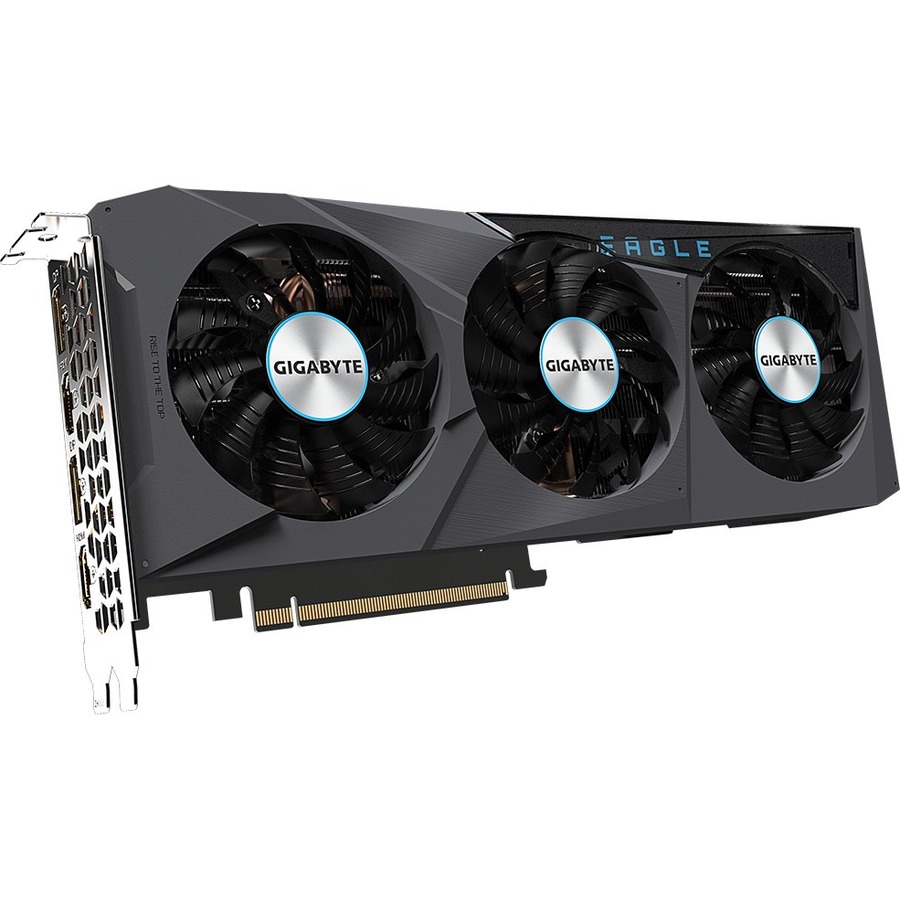

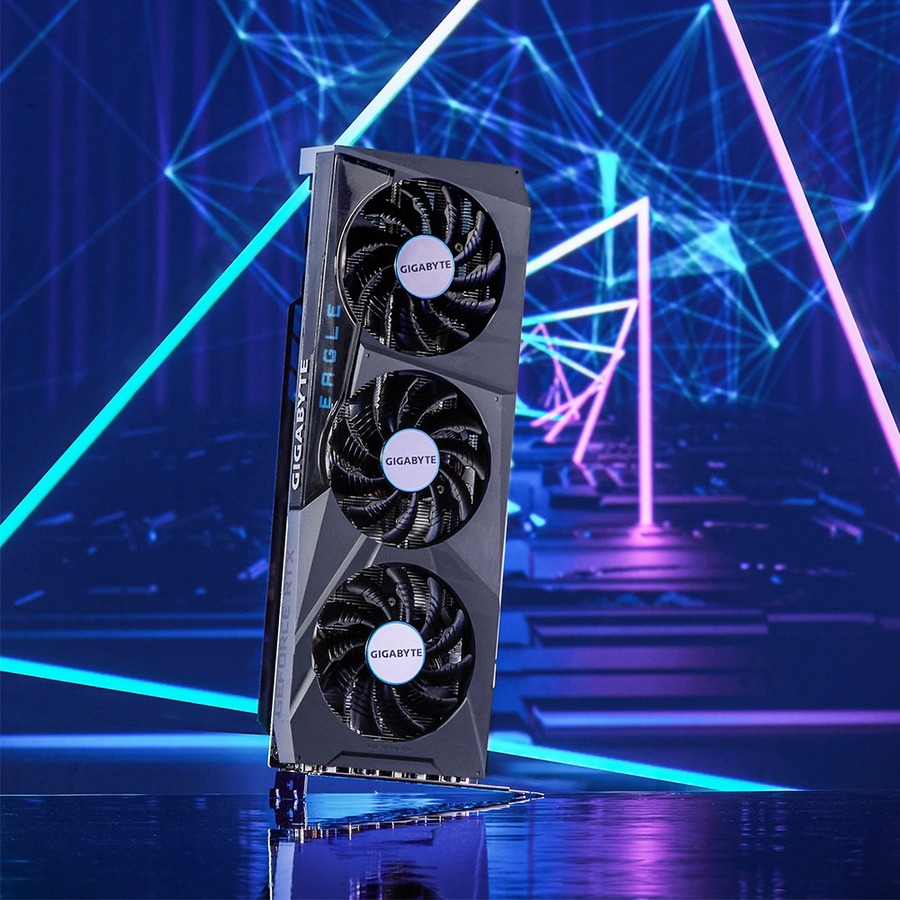

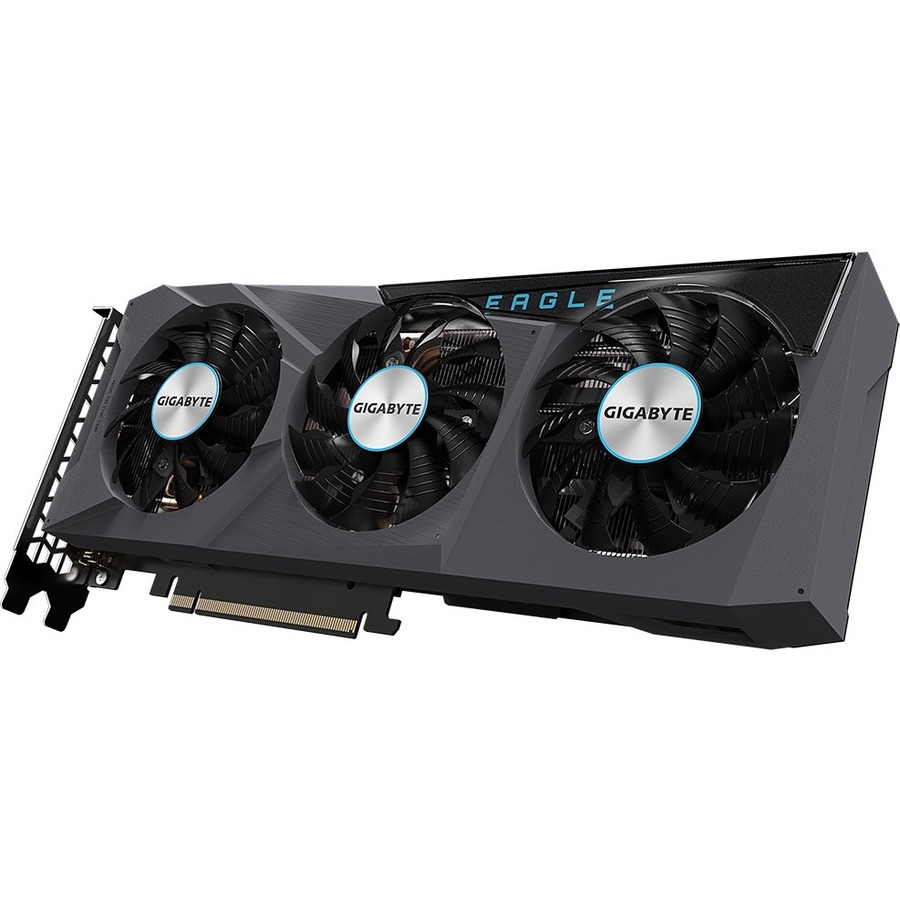

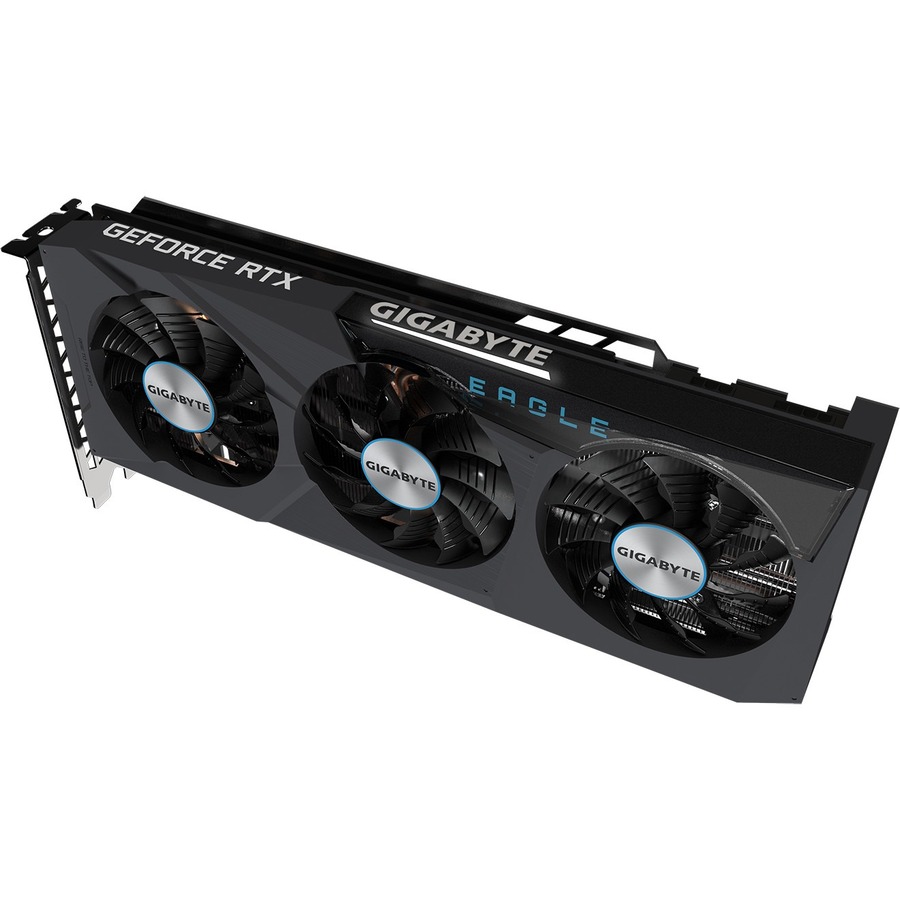

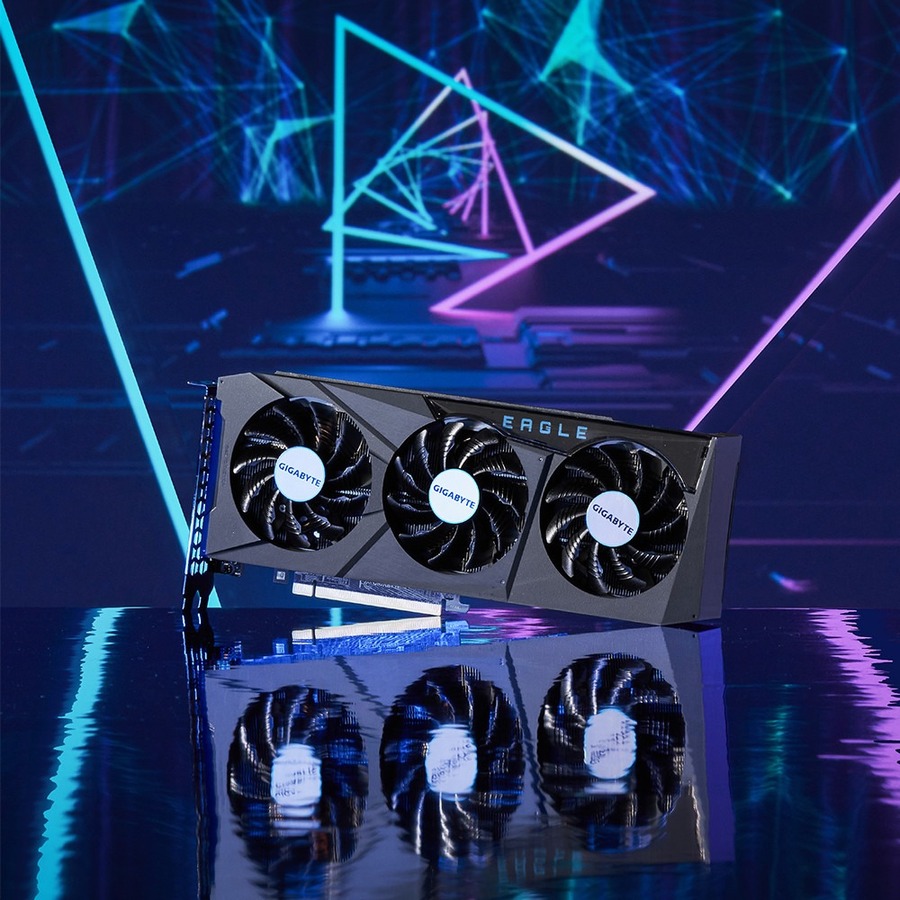

GIGABYTE GV-N3070EAGLE OC-8GD RTX 3070 EAGLE OC 8 GB GRAPHICS CARD
Mfg Part Number: GV-N3070EAGLE OC-8GD , Item #: 4226083
, PO and Wire.
FEATURES
NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores
Powered by GeForce RTX™ 3070
Integrated with 8GB GDDR6 256-bit memory interface
WINDFORCE 3X Cooling System with alternate spinning fans
RGB Fusion 2.0

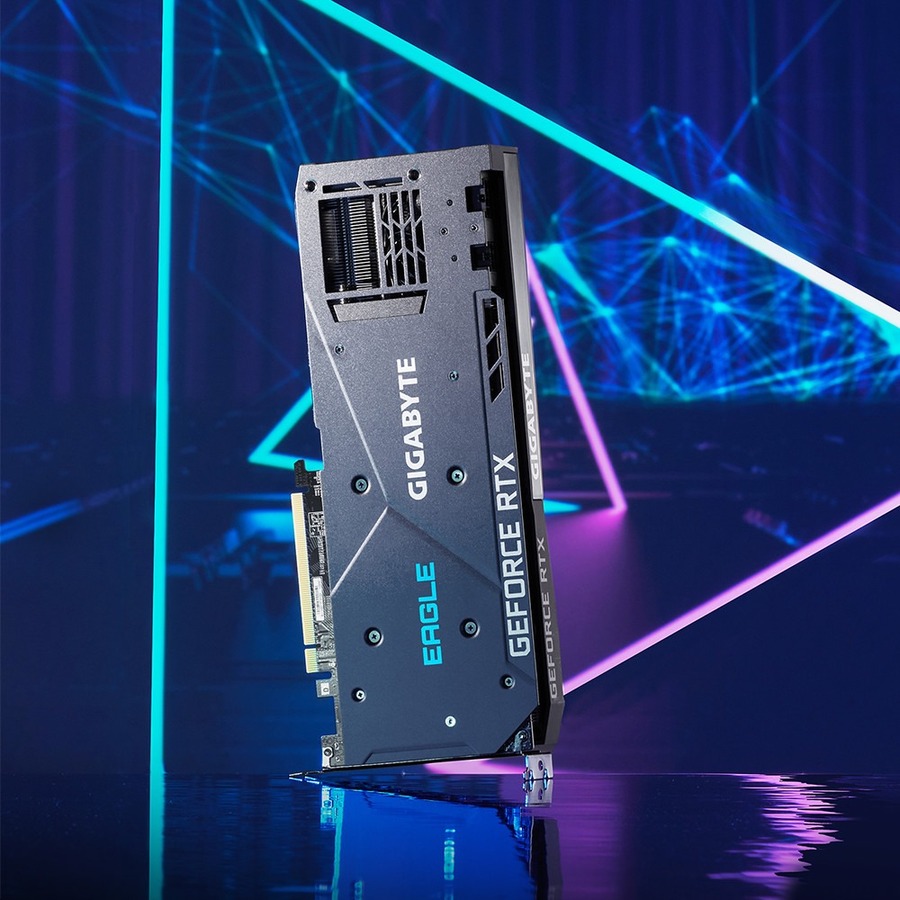

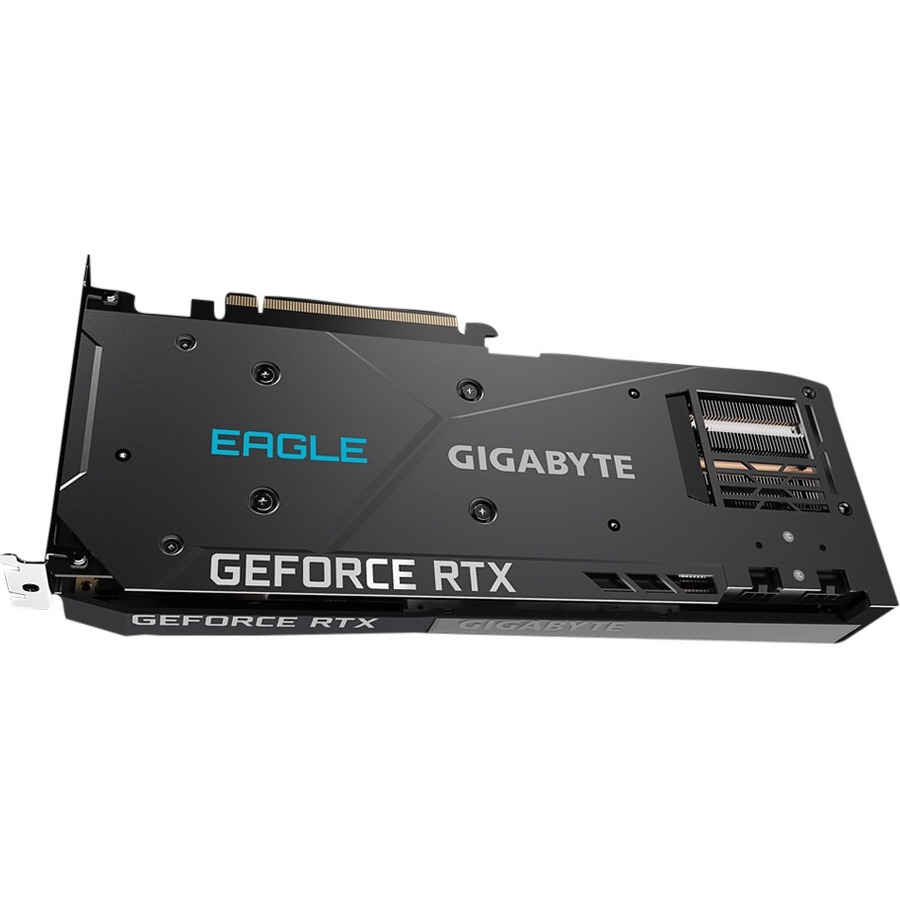

Protection metal back plate
CORE CLOCK
1770 MHz (Reference Card: 1725 MHz)

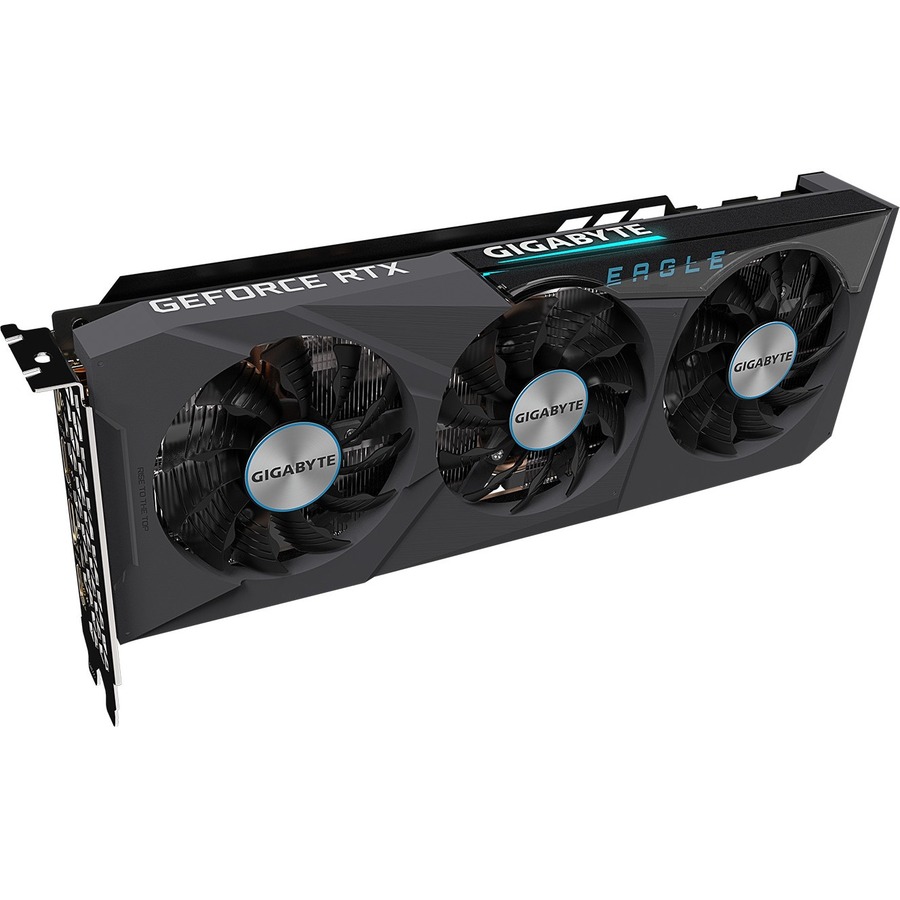

WINDFORCE 3X
COOLING SYSTEM

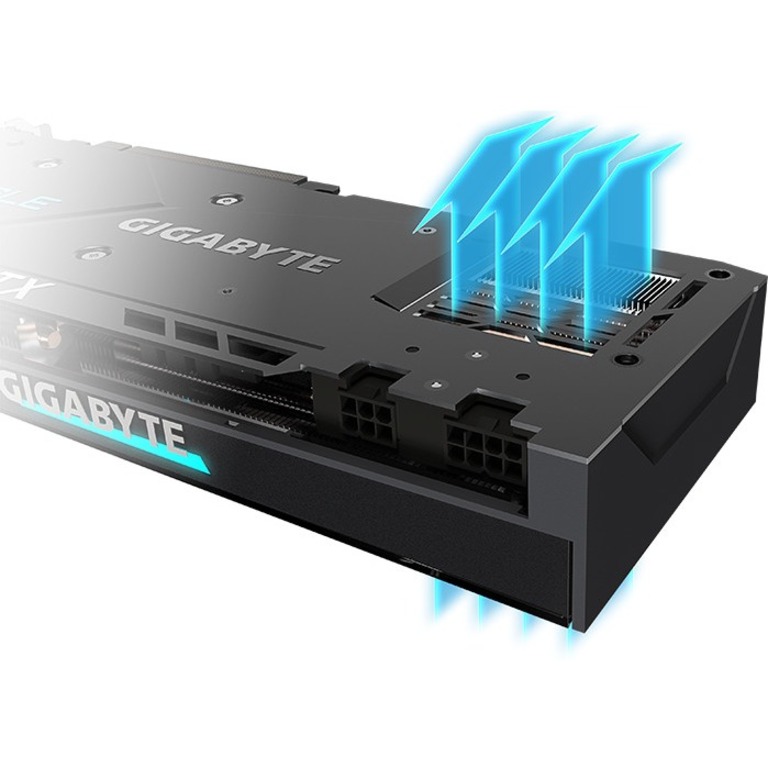

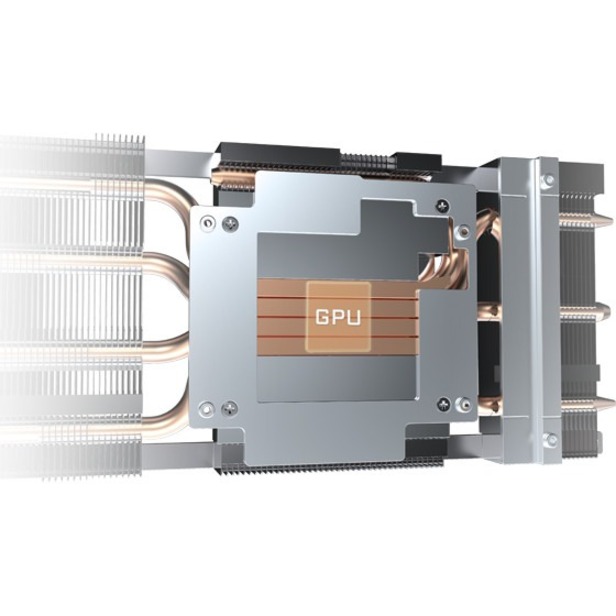

The WINDFORCE 3X cooling system features 3X80mm unique blade fans, alternate spinning, 4 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.
SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
| General Information | |
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | GV-N3070EAGLE OC-8GD |
| Manufacturer Website Address | http://www.gigabyte.us |
| Brand Name | Gigabyte |
| Product Model | GV-N3070EAGLE OC-8GD |
| Product Name | GeForce RTX 3070 EAGLE OC Graphic Card |
| Product Type | Graphic Card |
| Technical Information | |
| API Supported | OpenGL 4.6 |
| API Supported | DirectX 12 Ultimate |
| Number of Monitors Supported | 4 |
| Processor & Chipset | |
| Chipset Manufacturer | NVIDIA |
| Chipset Line | GeForce |
| Chipset Series | RTX |
| Chipset Model | RTX 3070 |
| GPU Clock | 1.77 GHz |
| Memory | |
| Standard Memory | 8 GB |
| Memory Technology | GDDR6 |
| Bus Width | 256 bit |

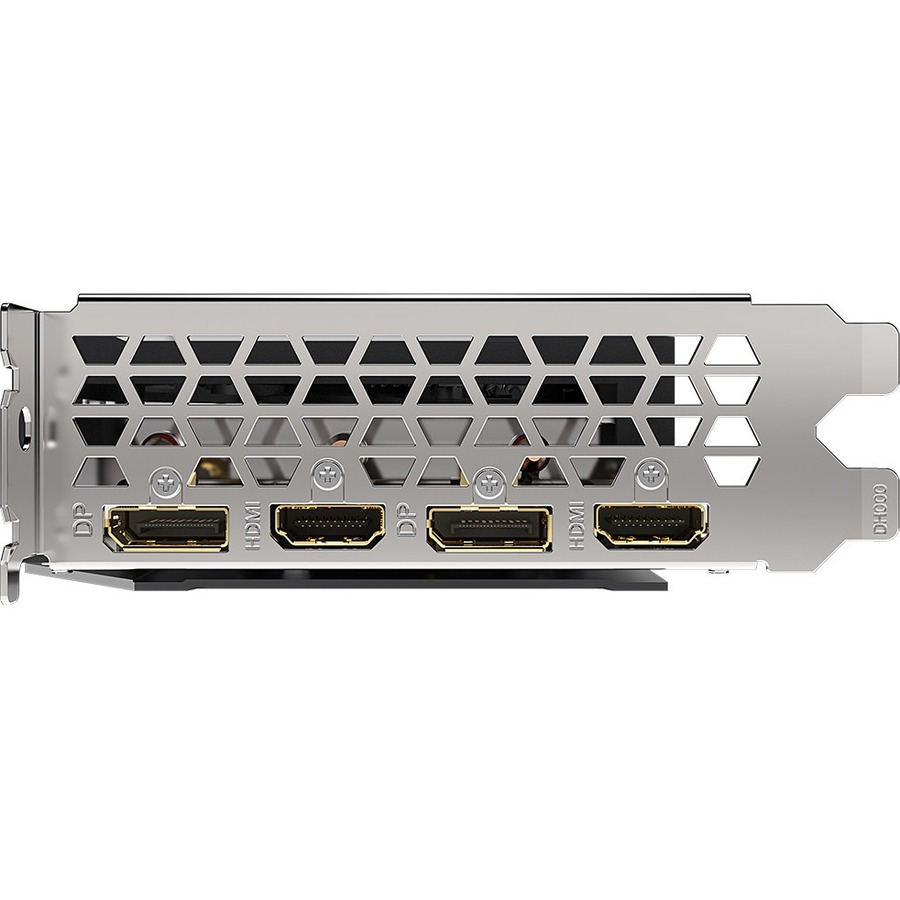

| Interfaces/Ports | |
| Host Interface | PCI Express 4.0 x16 |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 2 |
| HDMI | Yes |
| Number of HDMI Outputs | 2 |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Cooler Type | Fan Cooler |
| Height | 1.6" |
| Width | 4.5" |
| Length | 11.1" |
| Miscellaneous | |
| Package Contents |
|
| Platform Supported | PC |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
