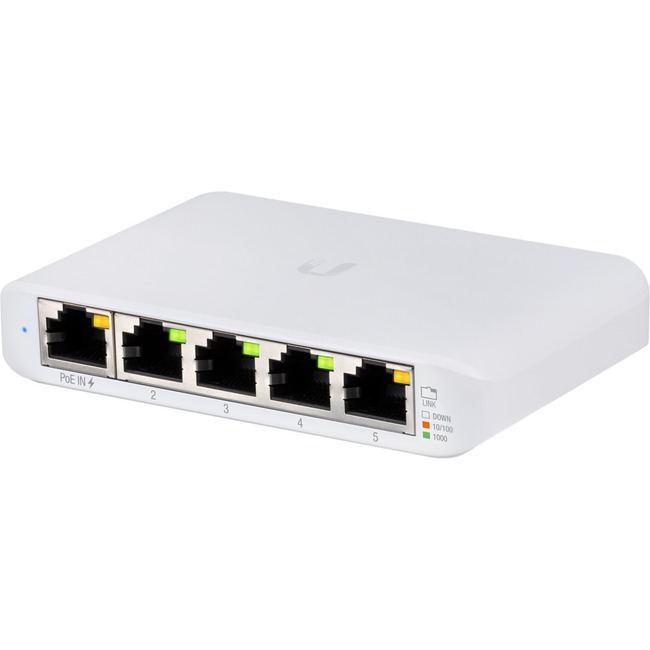

UBIQUITI USW-Flex-Mini-3 UniFi Compact 5 Port Gig 3 Pac

Expand your network with the UniFi® Switch Flex Mini, part of the Ubiquiti® UniFi Enterprise System.

Compact Desktop Design

The cost-effective UniFi Switch Flex Mini can be discreetly integrated into any environment.

Copper Connectivity

Five RJ45 ports offer 10/100/1000 links. One port also supports 802.3af/at PoE input.

Efficient Use of Energy

The UniFi Switch Flex Mini uses only a maximum of 2.5W.

For your convenience, it can be powered by 802.3af/at PoE or a 5V, 1A USB-C power adapter.

Switching Performance

The UniFi Switch Flex Mini offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

Scalable UniFi Network Application

Management Capabilities

The UniFi Network™ Application can provision UniFi devices, map out networks, and quickly manage system traffic. Important network details are logically organized for a simplified, yet powerful, interface.

Network Overview

From a single pane of glass, view network topology and configuration, real-time statistics, and debugging metrics. Monitor your network's vitals and make on-the-fly adjustments as needed.

Multi-Site Management

A single Controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator accounts.

Deep Packet Inspection

Ubiquiti's proprietary Deep Packet Inspection (DPI) engine includes the latest application identification signatures to track which applications (and IP addresses) are using the most bandwidth.

Detailed Analytics

The UniFi Network Application provides configurable reporting and analytics to manage large user populations and expedite troubleshooting. Advanced search and sorting capabilities make network management more efficient.

Software Features

The UniFi Network Application software offers the following features for the UniFi Switch Flex Mini:

• Centralized configuration management (including configuration cloning)
• Auto-MDIX automatically adjusts as needed for straight through or crossover cable

Switch Configuration

You can access the UniFi Switch Flex Mini through the UniFi Network Application to configure a variety of features:

• Operation mode (switching or mirroring) per port
• Network/VLAN configuration
• Jumbo frame and flow control services
• Network settings
• Storm control setting per port

Switch Port Status

You can also view status information for each port:

• Connection speed and duplex mode
• TX/RX data rates
• Network/VLAN setting

General Information
Manufacturer	Ubiquiti Inc.
Manufacturer Part Number	USW-Flex-Mini-3
Manufacturer Website Address	http://www.ui.com
Brand Name	Ubiquiti
Product Line	USW Flex Mini
Product Name	Compact 5-Port Gigabit Switch
Packaged Quantity	3
Product Type	Ethernet Switch
Interfaces/Ports
Total Number of Network Ports	5
Port/Expansion Slot Details	1 x Gigabit Ethernet PoE
Port/Expansion Slot Details	4 x Gigabit Ethernet Network
Media & Performance
Media Type Supported	Twisted Pair
Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T
Network & Communication
Layer Supported	2
Management & Protocols
Manageable	Yes
Power Description
PoE (RJ-45) Port	Yes
Power Source	PoE
Power Consumption	2.50 W
Physical Characteristics
Form Factor	Desktop
Form Factor	Compact
Height	0.8"
Width	4.2"
Depth	2.8"
Weight (Approximate)	5.29 oz
Warranty
Limited Warranty	1 Year
