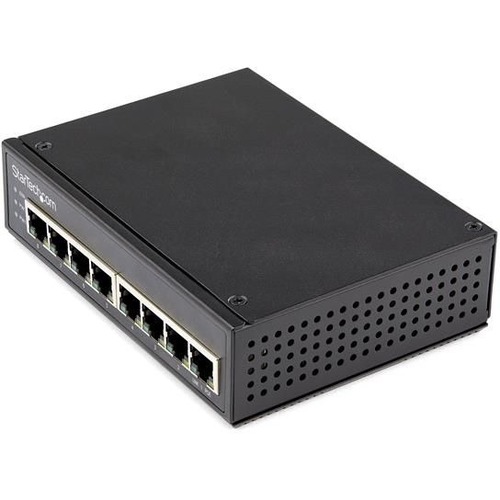

STARTECH IESC1G80UP INDUSTRIAL 8PORT GIGABIT POE+ SWITCH 30W POWER OVER ETHERNET
Mfg Part Number: IESC1G80UP , Item #: 4221356
, PO and Wire.
This industrial 8 port gigabit PoE switch features 30W of power and is designed to be installed in harsh environments and supports up to a total of 200W power outputs. Includes hardware for DIN rail or wall mounting.
For Demanding Environments Where No Fiber Connections Are RequiredUsing Cat 5e (or higher rated) Ethernet cabling, this Ethernet switch Provides up to 30W of PSE power per PoE port (PSE) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like:
- Cameras
- Sensors
- Wi-Fi Access Points
High total power budget with high PoE port count at a maximum of 30 watts per port, up to 200 watts max. Power provided in order of device connection; max 6 802.3at (30W) devices (180W total) at any time.
Truly Industrial for Devices That Must Function Under Harsh ConditionsIndustrial features include:
- Operating Temperature Range: -40 C to 75 C
- IP-30 rated housing
- Vibration, shock, and free-fall standard testing
This Ethernet switch supports additional features such as redundant power inputs, 2kV surge protection on RJ45 ports, and an MTBF of 500,000+ hrs (Telcordia/Bellcore) at 50°C, for long-term reliability.
More from the Manufacturer
| General Information | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | IESC1G80UP |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | Ethernet Switch |
| Packaged Quantity | 1 |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE+ |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3x |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 200 W |
| Power Source | PoE+ |
| Power Consumption | 206 W |
| Plug/Connector Type | Terminal Block |
| Physical Characteristics | |
| Product Material | Steel |
| Form Factor | Wall Mountable |
| Form Factor | DIN Rail Mountable |
| Height | 1.6" |
| Width | 4.1" |
| Length | 5.6" |
| Weight (Approximate) | 1.18 lb |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 2 Year |
