| General Information | |
| Manufacturer | ViewSonic Corporation |
| Manufacturer Part Number | ID2455 |
| Manufacturer Website Address | http://www.viewsonic.com |
| Brand Name | ViewSonic |
| Product Line | ViewBoard |
| Product Model | ID2455 |
| Product Name | ID2455 ViewBoard Touch Display |
| Product Type | LCD Touchscreen Monitor |
| Technical Information | |
| Screen Size Class | 24" |
| Viewable Screen Size | 23.8" |
| Screen Mode | Full HD |
| Panel Technology | In-plane Switching (IPS) Technology |
| Response Time | 6 ms |
| Response Time Details | 6ms GTG (OD) |
| Aspect Ratio | 16:9 |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Mount Type | Desk Mountable |
| Mount Type | Wall Mountable |
| Mount Type | Arm-mountable |
| Backlight Technology | LED |
| Features | Screen Mirroring |
| Features | Anti-glare |
| Features | Digital Daisy Chain |
| Features | Cable Lock Slot |
| Features | 3H Surface Hardness |
| Features | Eco Mode |
| Features | Plug & Play |
| Features | On-screen Display (OSD) |
| Features | Ergonomic Design |
| Horizontal Frequency | 15 kHz to 82 kHz |
| Vertical Frequency | 50 Hz to 75 Hz |
| Stand Adjustments | Tilt |
| Video | |
| Maximum Resolution | 1920 x 1080 |
| Native Contrast Ratio | 1,000:1 |
| Dynamic Contrast Ratio | 50,000,000:1 |
| Brightness | 250 Nit |
| Audio | |
| Speakers | Yes |
| Touchscreen Information | |
| Touchscreen Type | Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 10 |
| Interfaces/Ports | |
| HDMI | Yes |
| USB | Yes |
| DisplayPort | Yes |
| USB Type-C | Yes |
| Number of HDMI Inputs | 1 |
| Number of USB Ports | 4 |
| Number of DisplayPorts | 1 |
| Number of USB Type-C 3.2 Gen 1 Ports | 1 |
| Built-in Devices | |
| Built-in Devices | USB Hub |
| Power Description | |
| Operating Power Consumption | 23.60 W |
| Physical Characteristics | |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Height | 12.6" |
| Width | 21.2" |
| Depth | 2" |
| Height with Stand | 16.80" |
| Width with Stand | 21.20" |
| Depth with Stand | 11.30" |
| Weight (Approximate) | 8.20 lb |
| Weight with Stand (Approximate) | 14.20 lb |
| Miscellaneous | |
| Package Contents |
|
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | China Environmental United Certification Center (CEC) |
| Warranty | |
| Limited Warranty | 3 Year |

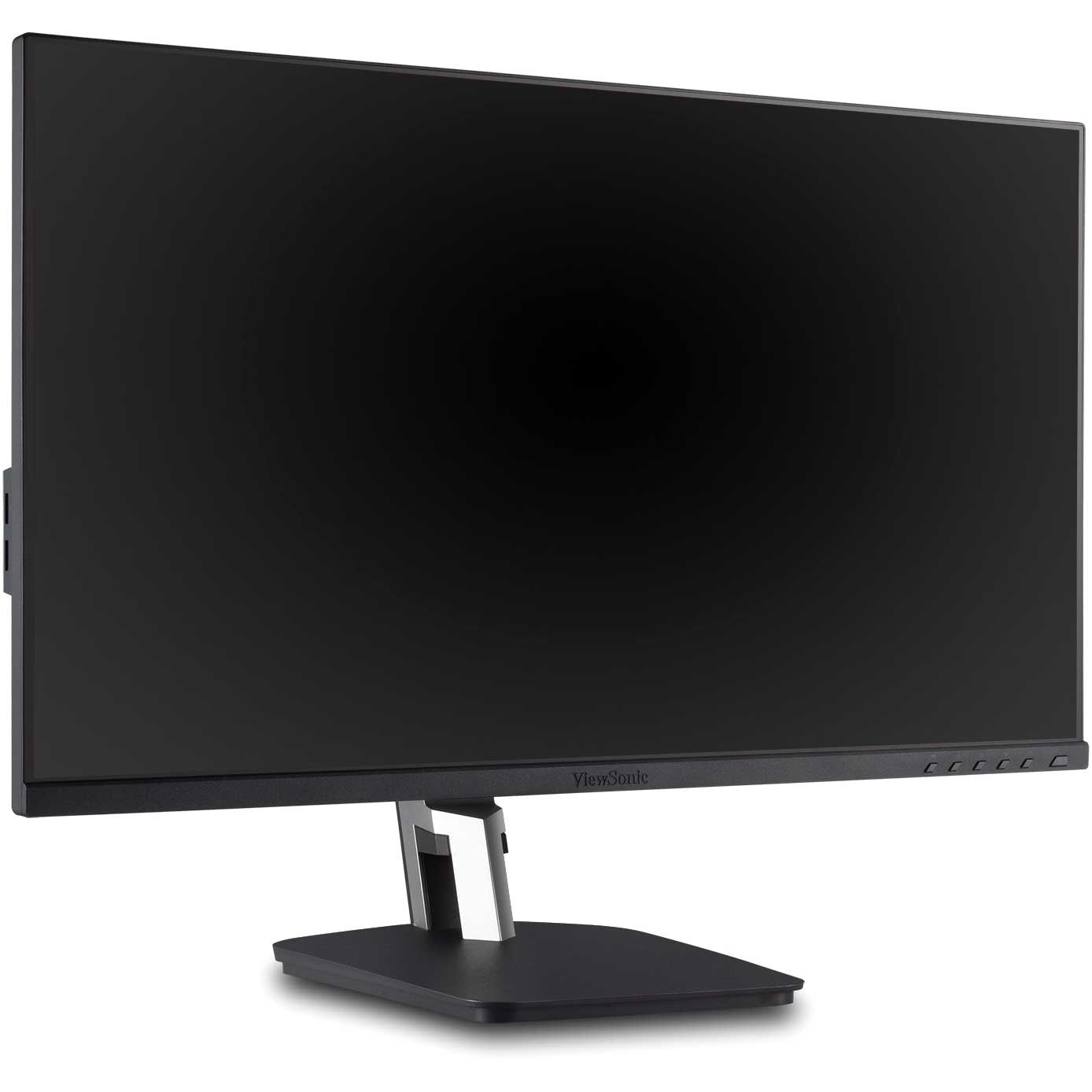

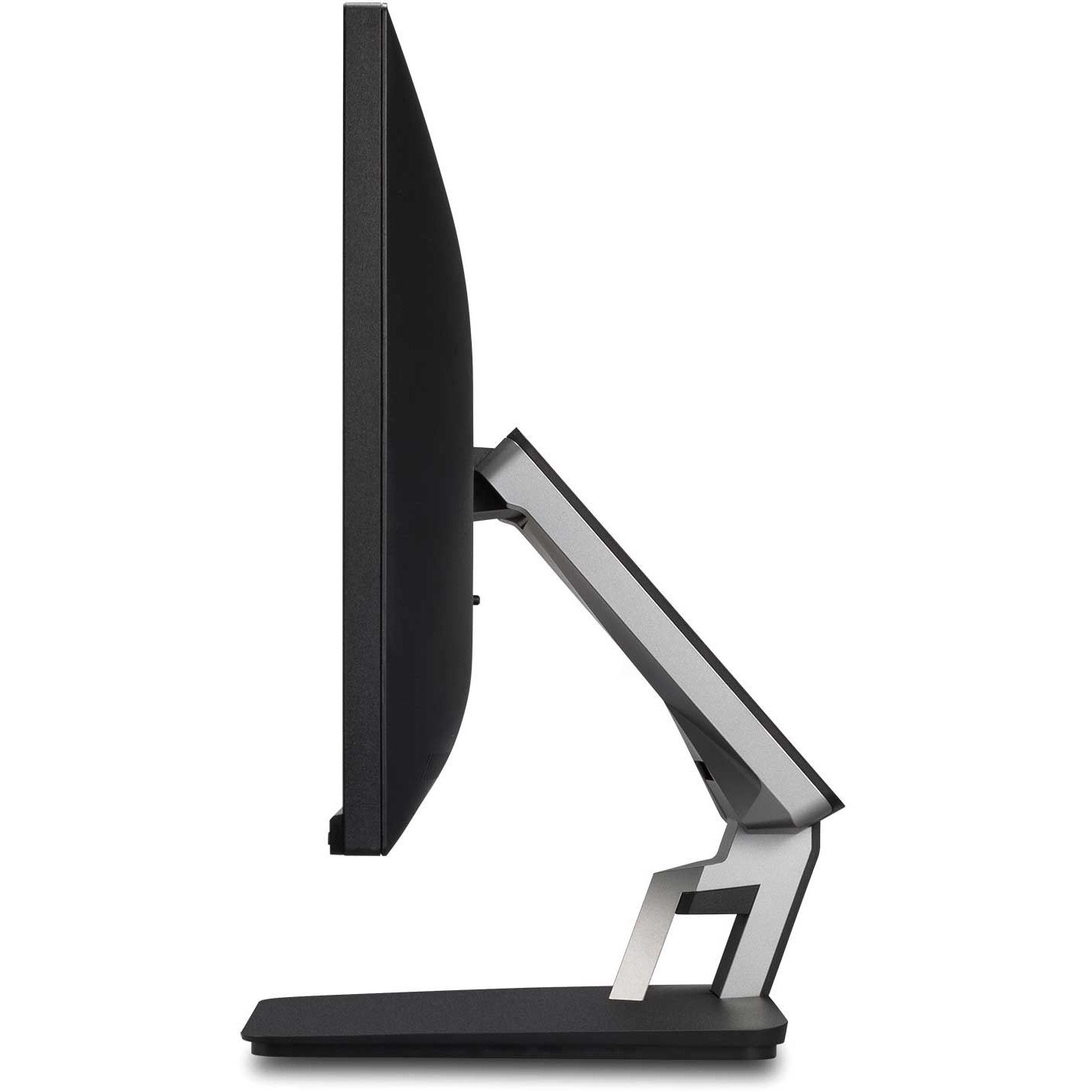

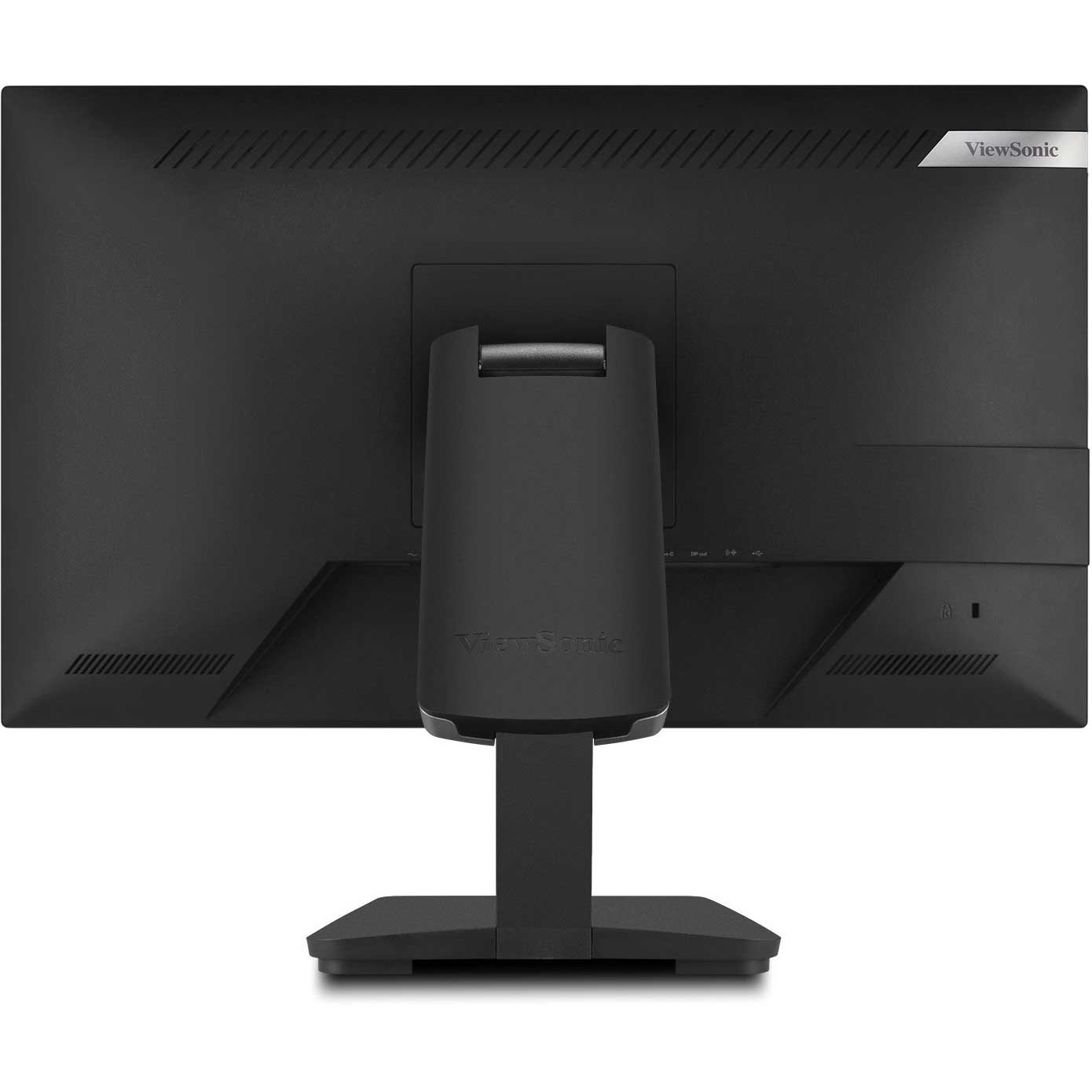

The ViewSonic® ID2455 ViewBoard Touch Display is part of ViewSonic’s full line of interactive devices designed for a variety of education scenarios including hybrid teaching at home or in the classroom. With responsive in-cell touch technology and an advanced ergonomic design, the ID2455 ViewBoard Touch Display delivers hands-on control for more productive workspaces and collaborative classrooms. With high-performance in-cell touch technology, this 24” (23.8” viewable) Full HD display provides smooth and responsive touch tracking, along with amazing screen performance, within a sleek and bezel-less design. USB-C connectivity offers a single-cable plug-and-play solution for laptops and Chromebooks, while DisplayPort output enables easy screen mirroring or extended desktops ideal for office productivity and podium touch applications in classrooms. A magnetic stylus pen lets you write or draw on screen, and easily attaches to the display stand for secure storage. So whether used on its own on personal computers for remote teaching, as a collaboration station in classrooms, or as a front-of-classroom interactive teaching hub, the ID2455 helps to boost efficiency and productivity.
