RARITAN

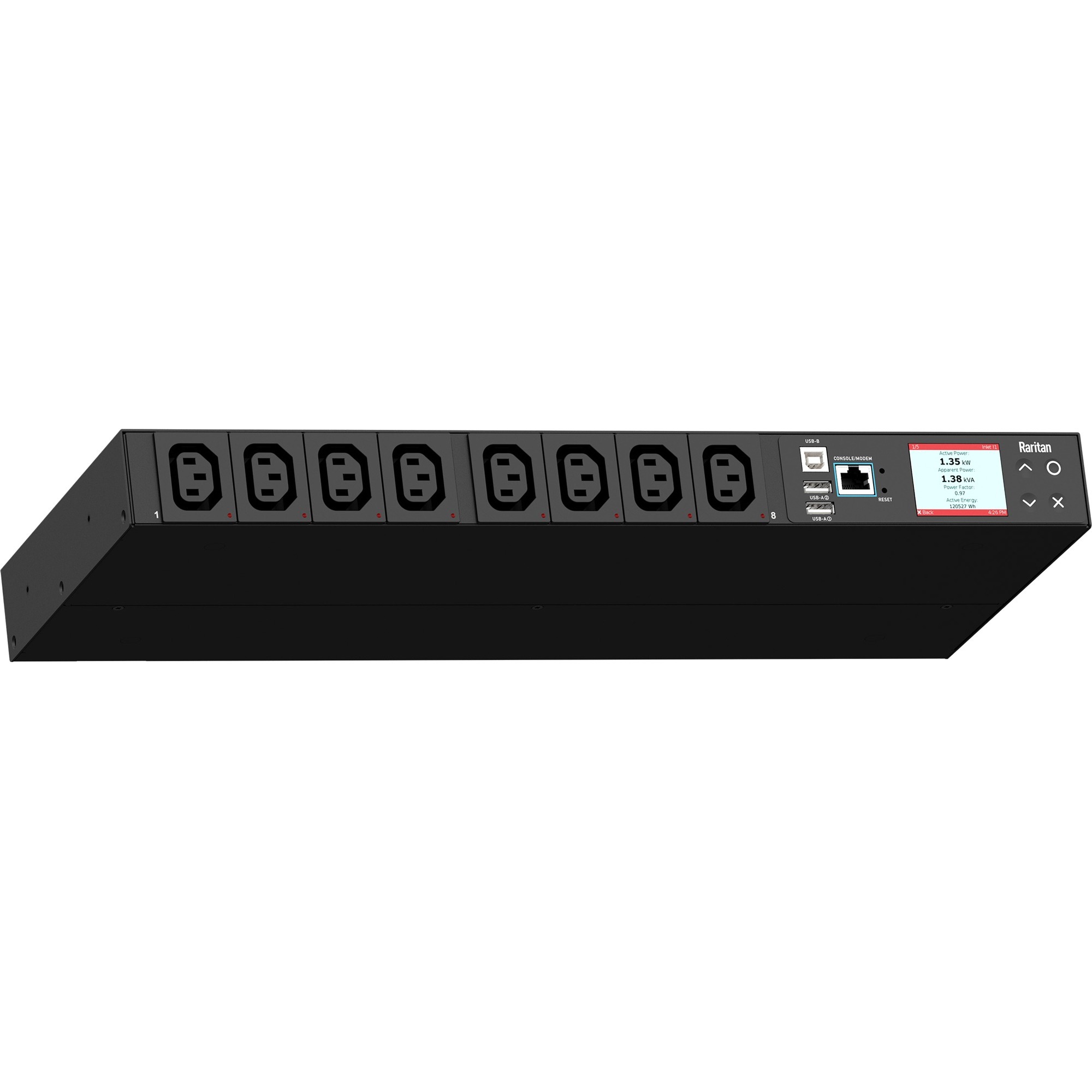

RARITAN PX3-5180R-F5 1PH 208V AC 20A 8X C13 PLUG NEMA L6-20P 3.3KVA OUTLET 1U HORIZ
Mfg Part Number: PX3-5180R-F5 , Item #: 4202873
Image may not reflect the actual item.
Price: $1,173.36
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Oct 20, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | PX3-5180R-F5 |
| Manufacturer Website Address | http://www.legrand.us |
| Brand Name | Raritan |
| Product Series | PX3 |
| Product Model | PX3-5180R-F5 |
| Product Name | PX3-5180R-F5 8-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Monitored |
| Plug/Connector Type | NEMA L6-20P (2P3W) |
| Plug/Connector Detail | 1 x NEMA L6-20P (2P3W) |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 8 x IEC 60320 C13 |
| Protection Type | Overcurrent Protection |
| Protection Type | Splash Proof |
| Protection Type | Double Pole |
| Protection Type | Overload Protection |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Power Rating (VA) | 3700 VA |
| Input Current | 20 A |
| Management | |
| Management |
|
| Remote Outlet Switching | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 17.3" |
| Depth | 7.2" |
| Weight (Approximate) | 6.83 lb |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
Mounting Kits
