VERTIV
VERTIV SVM180DPH-400 AVOCENTSV UNIVERSAL DP/H KVM SWITCH
Mfg Part Number: SVM180DPH-400 , Item #: 4200976
, PO and Wire.

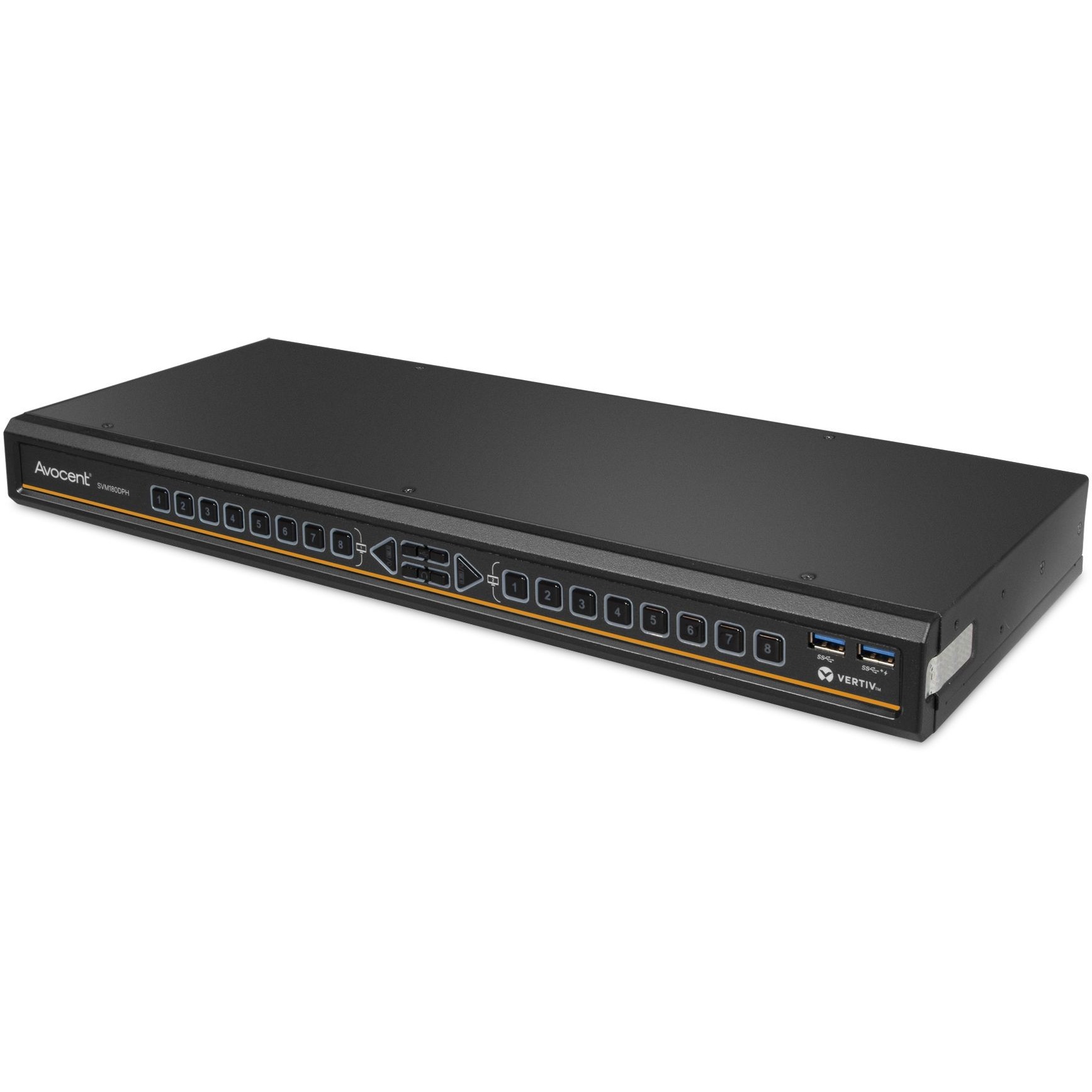

The Vertiv Avocent SwitchView Desktop Matrix offers fast and reliable access and control of up to four desktop computers using a single keyboard, monitor, and mouse. Both 4 or 8 port switch comes with a universal video connector that supports DP, HDMI, and DVI-D for resolutions up to UHD 4K. With this flexibility, users are not locked in to only input and output display types while also reducing the need for multiple cable types. Cursor Navigation Switching (CNS) simplifies and speeds up system access and allows seamless transitions between active computers when moving the cursor across screen borders. A managed copy-and-paste feature enables copying of files and text from one source computer to the other for seamless source integration. Up to three USB ports enable easy connectivity to external USB devices while also offering the ability to switch between audio and USB 3.0 peripherals independently.
| General Information | |
| Manufacturer | Vertiv |
| Manufacturer Part Number | SVM180DPH-400 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Brand Name | Vertiv AVOCENT |
| Product Line | SwitchView |
| Product Series | 100 |
| Product Model | SVM180DPH |
| Product Name | SVM180DPH Desktop Matrix Switch |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 8 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 0 |
| Maximum Operating Distance | 10 ft |
| Interfaces/Ports | |
| Network (RJ-45) | No |
| PS/2 Port | No |
| USB | Yes |
| HDMI | Yes |
| DVI | No |
| VGA | No |
| DisplayPort | Yes |
| Management Port | No |
| Number of Network (RJ-45) Ports | 0 |
| Number of PS/2 Ports | 0 |
| Number of USB Ports | 4 |
| Number of HDMI Ports | 2 |
| Number of DVI Ports | 0 |
| Number of VGA Ports | 0 |
| Number of DisplayPorts | 2 |
| Power Description | |
| Input Voltage Range | 100VAC-240VAC |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Form Factor | Desktop |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 17.3" |
| Depth | 7.3" |
| Weight (Approximate) | 5.40 lb |
| Miscellaneous | |
| Package Contents |
|
| Energy Star | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
