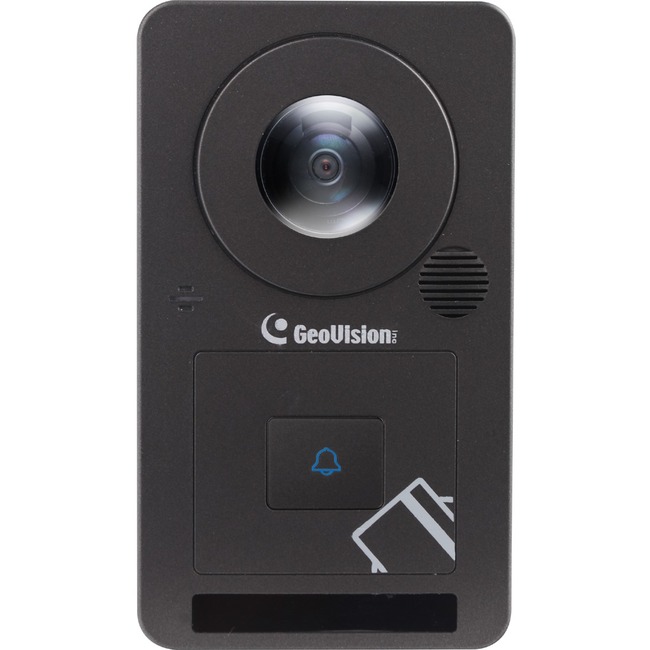

GeoVision GV-CR1320 2MP H.264 CAMERA READER

Mfg Part Number:  GV-CR1320
Image may not reflect the actual item.
Price: $345.62 + Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Sep 08, 2025
No Sales Tax except these states
, PO and Wire.

GV-CR1320 is a 13.56 MHz card reader with a built-in 2 MP camera. GV-CR1320 recognizes access control cards and grants access as regulated by the connected controller. Its camera captures the live view of entrance and transmits it to the access control system GV-ASManager through network connection, without the need of installing and maintaining a separate camera in addition to the card reader.

VoIP Calls:
When the touchpad is activated, GV-CR1320 will place a call to the operator through VoIP. The operator can then communicate with the visitor and enter an access code to open the door.

Card Swiping plus Face Detection:
The Card and Face mode enables GV-CR1320 to perform face detection together with card verification before access can be granted.

Main Specification
General Information
Manufacturer GeoVision, Inc
Manufacturer Part Number GV-CR1320
Manufacturer Website Address http://www.geovision.com.tw
Brand Name GeoVision
Product Model GV-CR1320
Product Name 2MP H.264 IP Camera Reader
Product Type Video Door Phone Sub Station
Camera
Image Sensor Type CMOS
Camera Resolution 2 Megapixel
Minimum Illumination 0 lux
Horizontal Viewing Angle 180°
Power Description
Input Voltage 12 V DC
Power Consumption 25.50 W
Physical Characteristics
Height 5.4"
Width 3.1"
Depth 1.4"
Weight (Approximate) 11.11 oz
Miscellaneous
Package Contents
  • 2MP H.264 IP Camera Reader
  • Mounting Plate
  • 2 x Standard Screws
  • 2 x Plastic Screw Anchors
  • Security Screw
  • Torx Wrench
  • Silica Gel Bag
  • Micro SD Card 2 GB (Inserted and Formatted)
  • Download Guide
  • Warranty Card
Application/Usage Access Control
Application/Usage Door Entry
Application/Usage Gate Entrance
Compatibility Compatible GV-ASManager and GV-AS Controller:
  • GV-ASManager: V5.1.0 or later
  • GV-AS210 / 2110 / 2111: V2.20 or later
  • GV-AS410 / 4110 / 4111: V2.20 or later
  • GV-AS810 / 8110 / 8111: V2.20 or later
  • GV-AS1520: V2.02 or later
  • GV-AS1620: V1.00 or later
  • GV-CS1320: V3.00 or later
Additional Information Camera:
  • Picture Elements: 1920 (H) x 1080 (V)
  • Shutter Speed: Automatic, Manual (1/5 ~ 1/8000 sec)
  • White Balance: Automatic, Manual (2800K ~ 8500K)
  • S/N Ratio: 52 db
Lens:
  • Day / Night function: Yes (with removable IR-cut filter)
  • Lens Type: Fixed
  • Focal Length: 1.7 mm
  • Maximum Aperture: F/2.5
  • Mount: M12
  • Image Format: 1/2.8"
  • IR LED Quantity: 2
  • Max. IR Distance: 3 m (9.84 ft.)
Operation:
  • Video Compressio:n H.264, MJPEG
  • Video Streaming: Dual streams from H.264 and MJPEG
  • Video Resolution:
    • Stream 1: 1920 x 1080 (16:9)
    • Stream 2: 640 x 360 (16:9)
  • Frame Rate: 15 fps at 1920 x 1080
  • Image Setting: Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Image Orientation, Shutter Speed
  • Audio Compression: G.711
Network:
  • Interface: 10/100 Ethernet
  • Protocol: DHCP, DynDNS, FTP, HTTP, HTTPS, NTP, PSIA, QoS (DSCP), RTSP, SIP, SMTP, SNMP, TCP, UDP, UPnP, 3GPP/ISMA
Mechanical:
  • Local Storage: Micro SD card
  • Connectors:
    • Power: 2-pin terminal block
    • Ethernet: Ethernet (10/100 Base-T), RJ-45 Connector
  • Audio: Built-in microphone and speaker
  • RS-485: RS-485 +, RS-485
General:
  • Operating Temperature: -10 ~ 50 °C (14 ~ 122 °F)
  • Humidity: 10% to 90% (no condensation)
  • Ingress Protection: IP66
Reader:
  • CPU: 32-bit RISC microprocessor
  • Frequency: 13.56 MHz for ISO14443A (Mifare DESFire, Mifare Plus and Mifare Classic)
  • RS-485 Interface: 1 RS-485 interface for GV-WTR
  • TCP/IP Interface: 1 TCP/IP interface for GV-AS controller
  • Communication Protocol: TCP/IP
  • Digital I/O:
    • 2 inputs, dry contact NO/NC
    • 1 relay output (30V DC, 0.5A)
  • ID Formats: GID and UID
Certifications & Standards
  • CE
  • FCC
  • RCM
NDAA Compliant Yes
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
