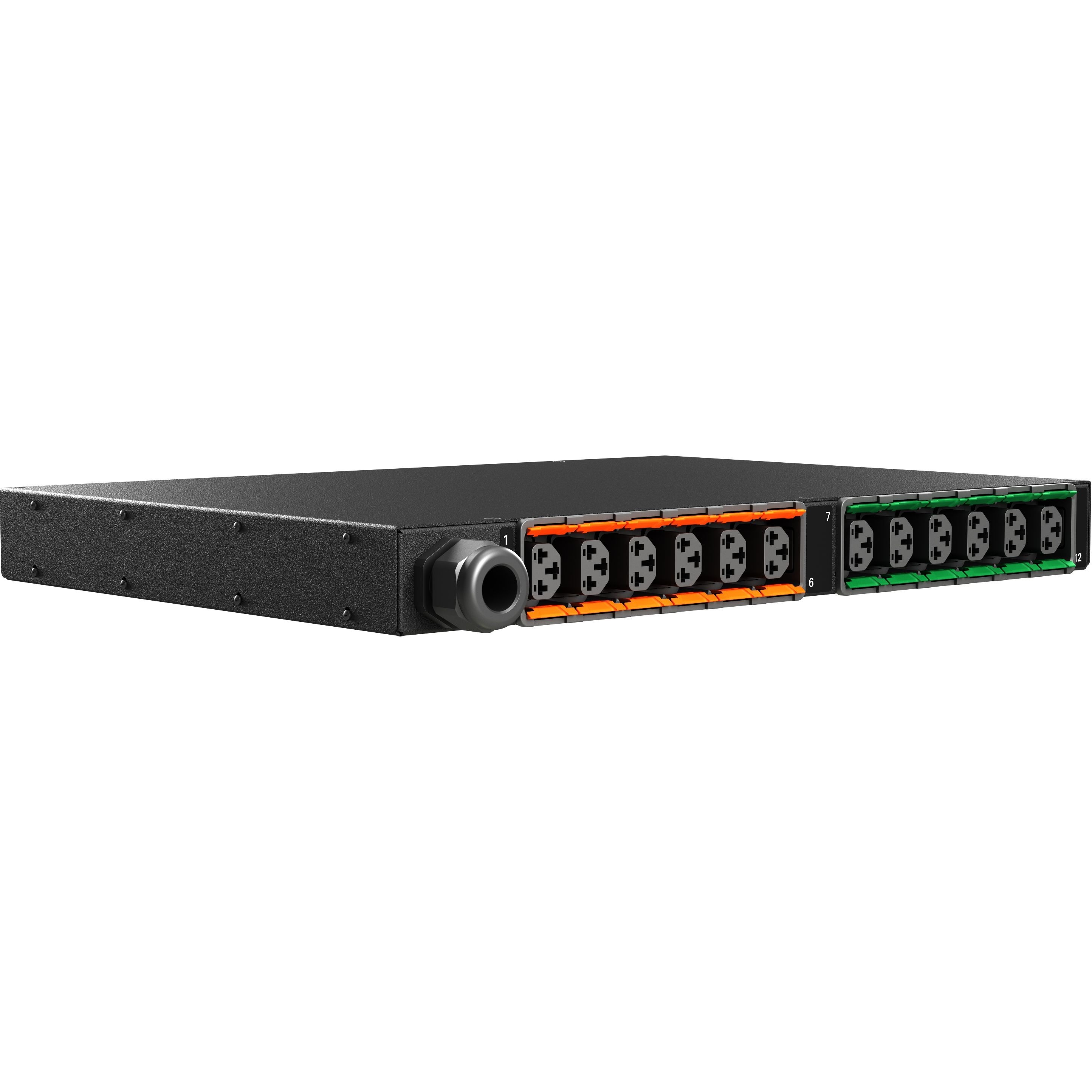

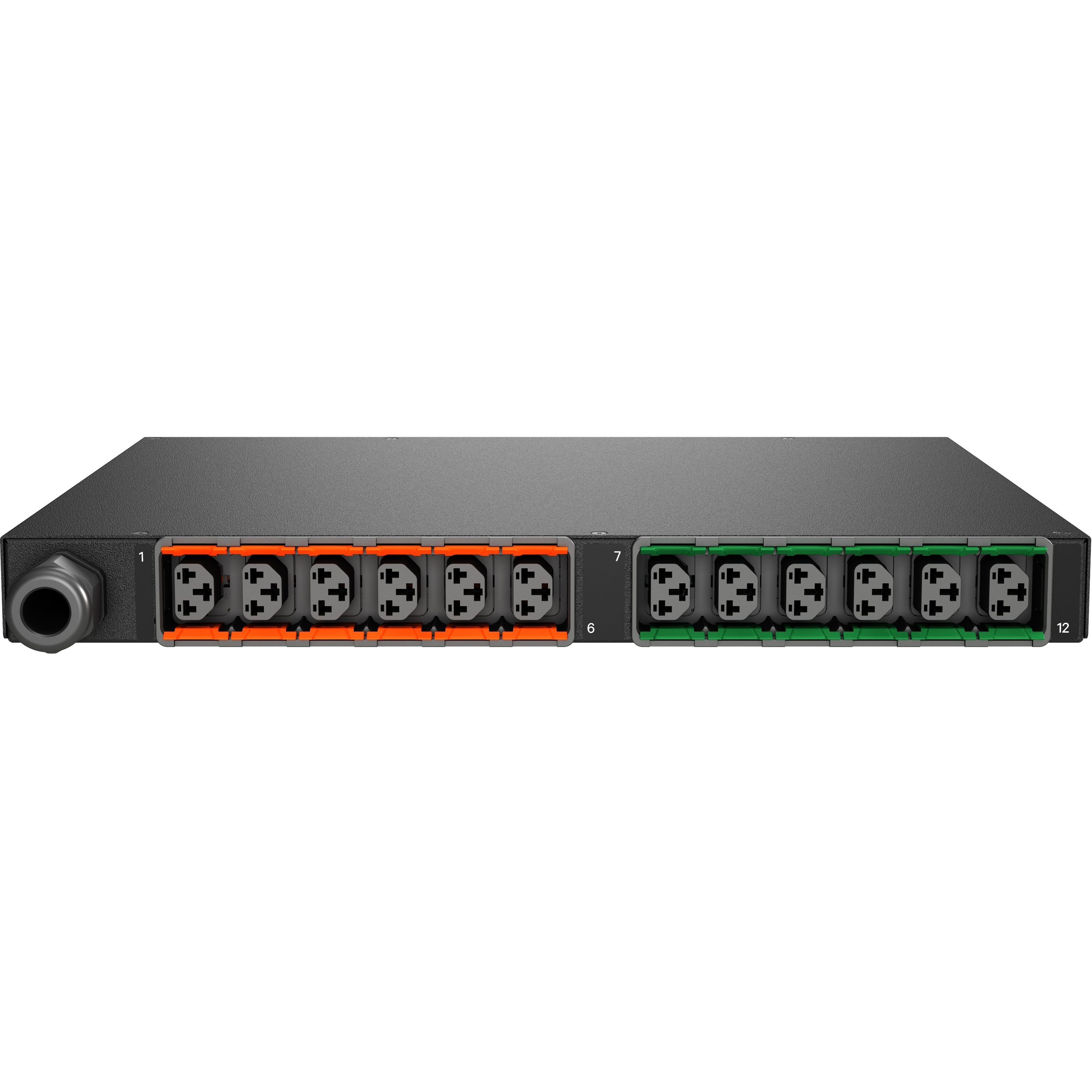

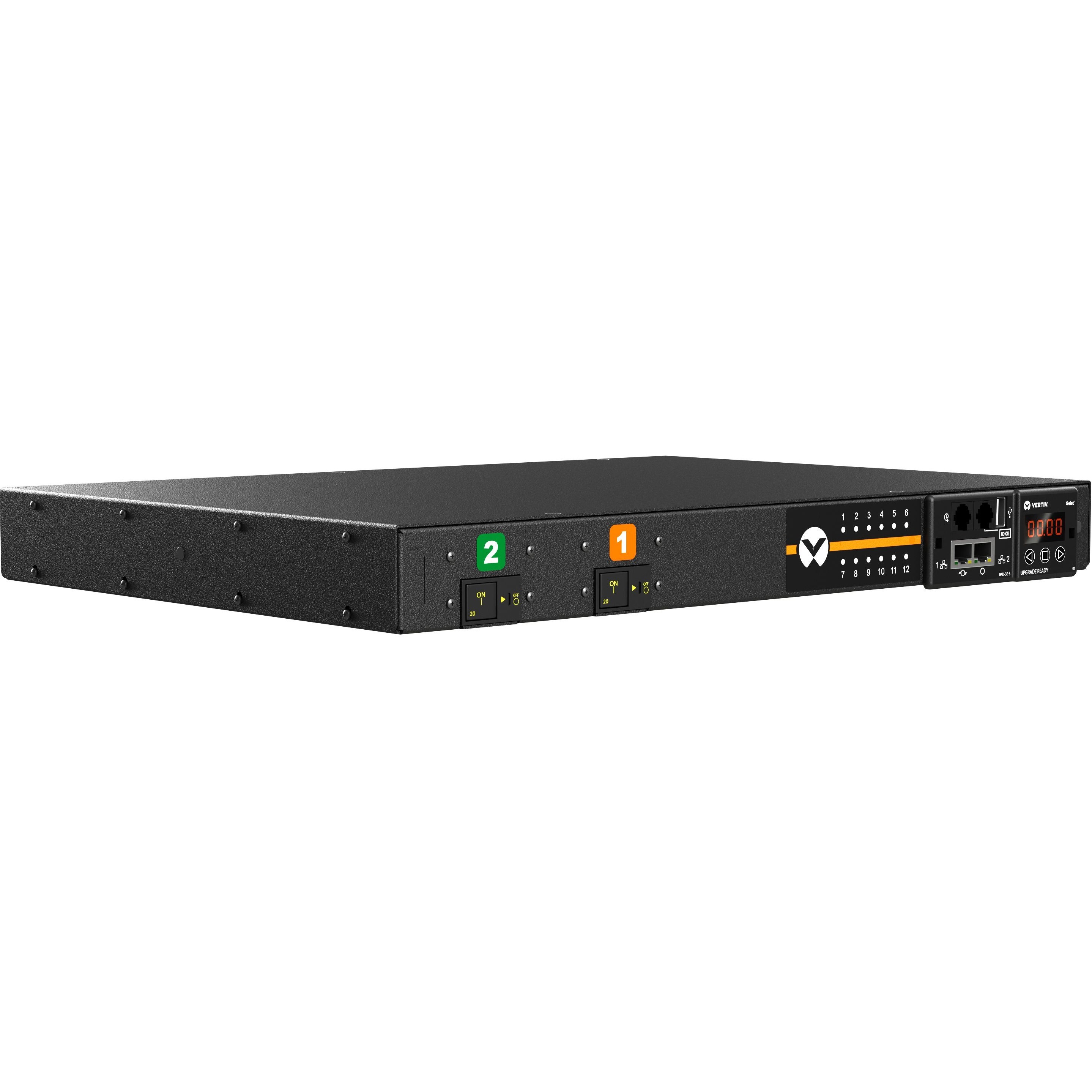

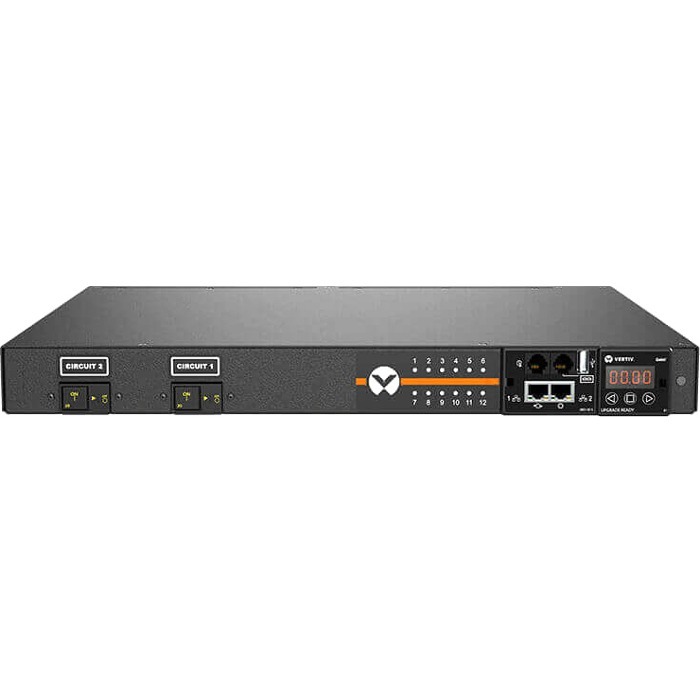

VERTIV VP53101 RPDU, SWITCHED UNIT LEVEL MONITORING EC
Mfg Part Number: VP53101 , Item #: 4193822
Image may not reflect the actual item.
Price: $1,763.38
+ Free Shipping
Quantity:
More to Come
Last Updated: Feb 09, 2026
No Sales Tax except these states
, PO and Wire.
Switched Unit Level Monitored Rack PDU VP53101 is a 30A, 120V 1U horizontal with input power monitoring and outlet level switching. It has 12 NEMA 5-20R receptacles and a NEMA L5-30P providing 2.8kW of power capacity. A Switched rPDU allows you to turn off outlets to avoid accidental overloads and remotely power cycle equipment to reboot unresponsive equipment. The unit is equipped with an environmental sensor port and dual ethernet ports.
Main Specification
| General Information | |
| Manufacturer | Vertiv |
| Manufacturer Part Number | VP53101 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Brand Name | Vertiv Geist |
| Product Series | rPDU |
| Product Model | VP53101 |
| Product Name | rPDU VP53101 12-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Switched |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L5-30P |
| Plug/Connector Detail | 1 x NEMA L5-30P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 12 x NEMA 5-20R |
| Protection Type | Overload Protection |
| Protection Type | Accidental Power Shutdown |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage Range | 100 V AC - 120 V AC |
| Output Voltage | 120 V AC |
| Power Rating (Watt) | 2800 W |
| Input Current | 30 A |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mounting Orientation | Horizontal |
| Mount Type | Cabinet-mountable |
| Mount Type | Rack-mountable |
| Form Factor | Hot-swappable |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 17" |
| Depth | 12" |
| Weight (Approximate) | 12 lb |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | United States |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
