BLACK BOX KVXLCHF-100-SFP-BUN3 KVM EXT FBR 4K SH HDMI USB 2.0 2 SFPS LC SM 1310NM 20KM LFP442

Mfg Part Number:  KVXLCHF-100-SFP-BUN3
Image may not reflect the actual item.
Price: $828.65 + Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Sep 23, 2025
No Sales Tax except these states
, PO and Wire.

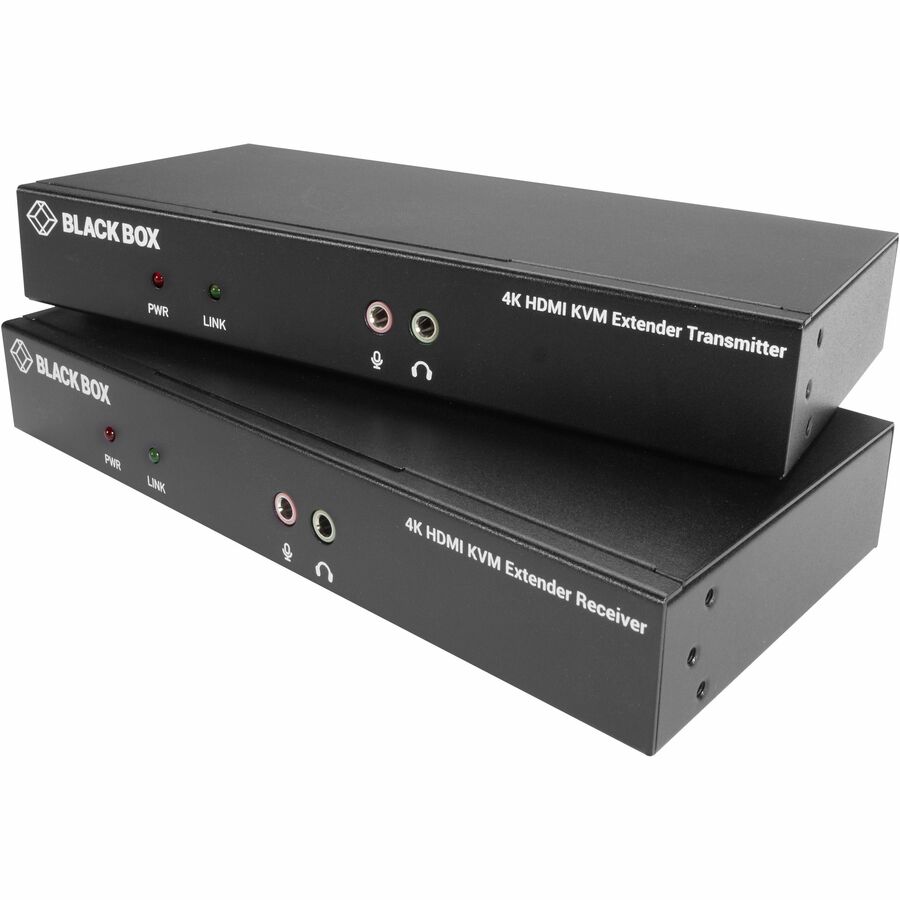

The KVX HDMI/DisplayPort Single Head Console Extender lets you control a server, or computer over single-mode or multi-mode fiber optic cable at distances of up to 30 km (depending on the SFP used, fiber type, and fiber bandwidth). PC connection cables are included with this product making it a solution that is ready right out of the box.

You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console. KVX is the perfect low-cost solution for transportation control centers, medical facilities, industrial warehouses, and extended workstations.

KVX Series Extenders also includes local video allowing access to an additional monitor at the Transmitter side. Perfect for any situation that requires monitoring of connected PCs.

KVX Series Extenders are TAA compliant and backed by free lifetime technical support.

KVX Series Extenders are a perfect fit for cost-conscious users in search of a feature-rich solution allowing them to operate servers or PCs from remote locations. Or, customers who require control of systems that are physically inaccessible, placed in secure locations, or in otherwise harsh environments. This can include command and control operations, server management, distribution monitoring, or utilities process control centers.

Main Specification
General Information
Manufacturer Black Box Corporation
Manufacturer Part Number KVXLCHF-100-SFP-BUN3
Manufacturer Website Address http://www.blackbox.com
Brand Name Black Box
Product Series KVX
Product Model KVXLCHF-100
Product Name KVXLCHF-100 KVM Console/Extender
Product Type KVM Console/Extender
Technical Information
Connectivity Technology Wired
Number of Computers Supported 1
Number of Local Users Supported 1
Maximum Operating Distance 65616.80 ft
Device Type KVM Extender
Video
Graphic Mode 4K
Maximum Video Resolution 3840 x 2160

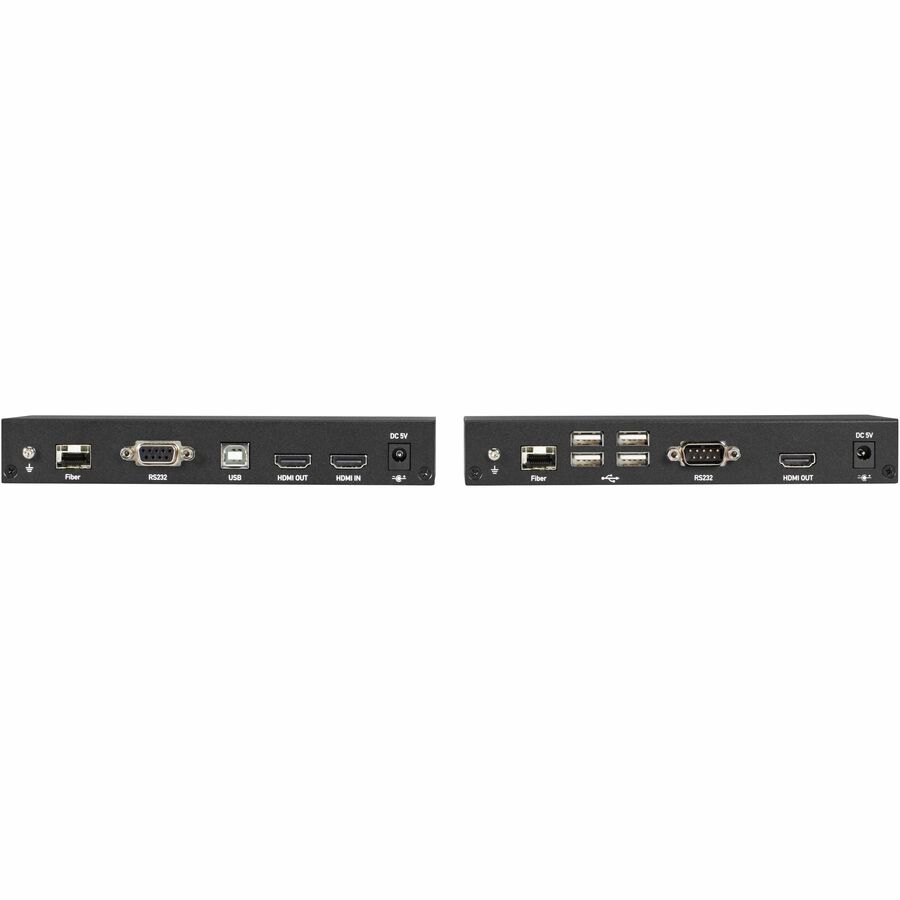

Interfaces/Ports
USB Yes
HDMI Yes
Number of HDMI Ports 3
Number of USB Ports 5
Physical Characteristics
Rack Height 1U
Form Factor Rack-mountable
Transmitter Height 0.83"
Transmitter Width 3.27"
Transmitter Depth 7.09"
Receiver Height 0.83"
Receiver Width 3.27"
Receiver Depth 7.09"
Transmitter Weight (Approximate) 13.12 oz
Receiver Weight (Approximate) 13.33 oz
Miscellaneous

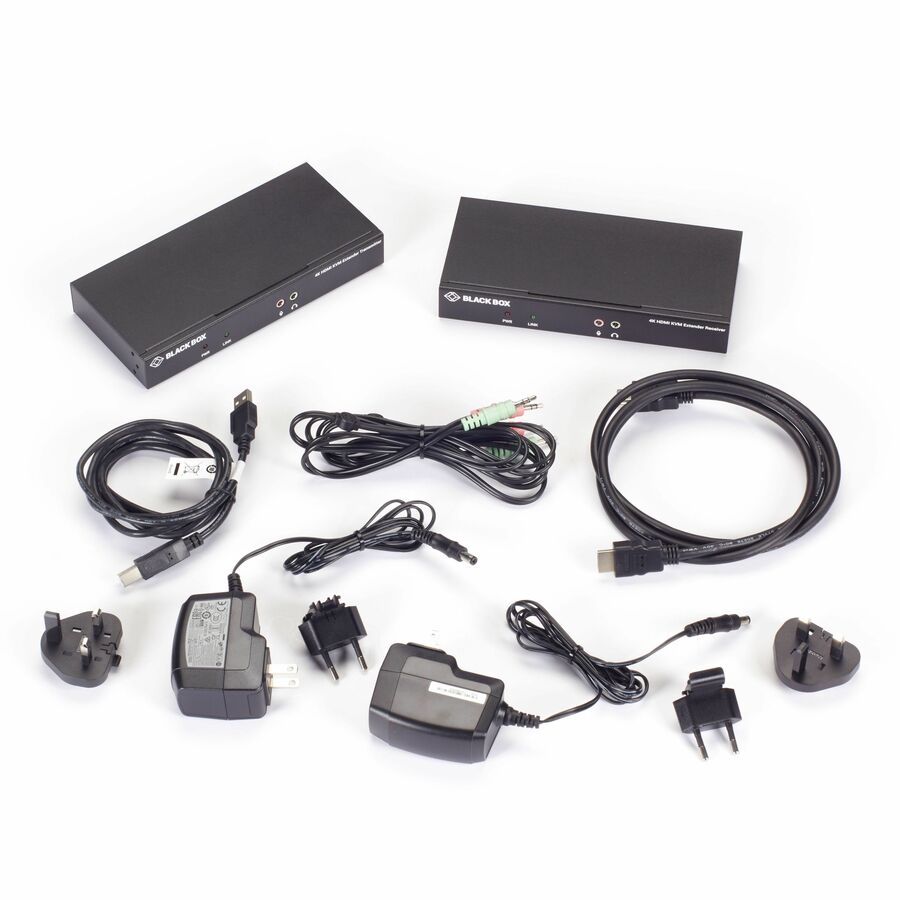

Package Contents
  • 1 x Transmitter
  • 1 x Receiver
  • 2 x 5V, 2A Power Supplies (includes US, EU, UK plug types)
  • 1 x HDMI Cable, M/M 1.2m (4 ft.)
  • 1 x USB Type A to B Cable, M/M 1.8m (6 ft.)
  • 1 x 3.5mm Dual Audio / Mic Cable, M/M 1.8m (6 ft.)
  • 2 x Deskmounting brackets (with screws)
Platform Supported PC
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin Taiwan
TAA Compliant Yes
Warranty
Limited Warranty 1 Year
