AGneovo LED IFP-8602 86 UHD 3840x2160 1200:1 5ms 350nits HDMI VGA SPK Retail
Mfg Part Number: IFP-8602 , Item #: 4192107
Special Note: Aug 24, 2020
NCNR; If you do not have loading facility, please contact our CST for special handling service.
, PO and Wire.

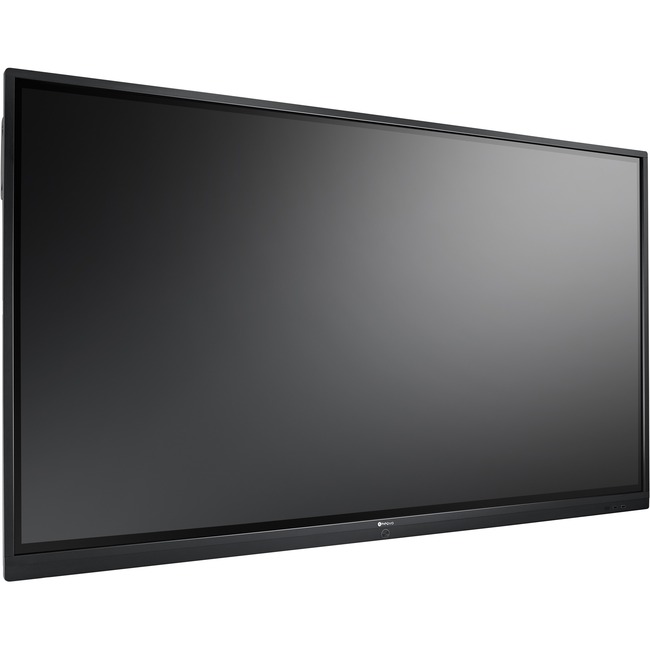

Built on the Android OS, AG Neovo Meetboard® IFP-8602 86-inch 4K interactive flat panel display is designed to get meetings going right away, without the need for projectors, whiteboards, PCs, or additional software. It integrates a digital whiteboard application to present, annotate and share your files via email or save them to cloud drives. It also supports wireless presentation to mirror photos, video, files directly from mobile devices or notebooks. With IFP-8602 interactive display, you can enjoy a clean and organised meeting room without cable clutters.
4K RESOLUTION WITH IPS TECHNOLOGY
Meetboard IFP-8602 interactive flat panel display delivers visual content to be compelling and sharp on the 4K UHD resolution with IPS panel technology and ensures that color is consistent and accurate from 178-degree wide viewing angles.
20-POINT MULTI-TOUCH & DUAL PENS
Multiple participants, using fingers or included styluses, can simultaneously draw and annotate on the 20-point touch-enabled screen, making mind-mapping and brainstorming as intuitive as using a whiteboard.
ANDROID OS PLATFORM
Android OS, the most widely-used OS around the globe, provides a steady and intelligent open-source platform that gives you a robust user experience and flexible third-party installation options.
INTUITIVE USER INTERFACE & USEFUL APPS
The simplified and aesthetic Android UI design makes Meetboard more user-friendly and intuitive. Meetboard offers useful applications you need the most for productive meetings, such as Browser, Finder App, WPS Office, Meetboard Whiteboard App, etc.
CLOUD STORAGE ACCESSIBILITY
You can easily access, upload, and download folders and files with a finger of touch on Meetboard cloud storage via Google Drive and Microsoft OneDrive configuration.
SCREEN MIRRORING VIA AIRPLAY, MIRACAST, CHROMECAST AND MORE
Meetboard IFP-8602 supports AirPlay, Miracast, and Chromecast and embeds a powerful screen-sharing app. You can wirelessly share and sync multi-media content from devices on Meetboard or multiple Meetboards in real-time. Likewise, you can also mirror back and control Meetboard on your devices.
| General Information | |
| Manufacturer | AG Neovo Technology Corporation |
| Manufacturer Part Number | IFP-8602 |
| Manufacturer Website Address | http://www.agneovo.com |
| Brand Name | AG Neovo |
| Product Model | IFP-8602 |
| Product Name | IFP-8602 86-Inch 4K Interactive Flat Panel Display |
| Product Type | Collaboration Display |
| Display & Graphics | |
| Screen Size | 85.6" |
| Display Screen Type | LCD |
| Display Screen Technology | In-plane Switching (IPS) Technology |
| Backlight Technology | Direct LED |
| Screen Mode | 4K UHD |
| Screen Resolution | 3840 x 2160 |
| Scan Format | 2160p |
| Aspect Ratio | 16:9 |
| Response Time | 5 ms |
| Color Supported | 1.07 Billion Colors |
| Contrast Ratio | 1,200:1 |
| Brightness | 350 Nit |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Glass Thickness | 0.16" |
| Touchscreen Information | |
| Touchscreen | Yes |
| Multi-touch Screen | Yes |
| Number of Touch Points | 20 |
| Touchscreen Technology | Infrared (IrDA) |
| Processor & Chipset | |
| Processor Type | Cortex A73 + A53 |
| Processor Core | Dual-core (2 Core) |
| Memory | |
| Standard Memory | 3 GB |
| Audio | |
| Speakers | Yes |
| Number of Speakers | 2 |
| RMS Output Power | 32 W |
| Network & Communication | |
| Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ac |
| Bluetooth | Yes |
| Interfaces/Ports | |
| HDMI | Yes |
| Number of HDMI Inputs | 3 |
| Number of HDMI Outputs | 1 |
| Number of USB 2.0 Ports | 3 |
| Number of USB 3.0 Ports | 3 |
| USB | Yes |
| Network (RJ-45) | Yes |
| Audio Line In | Yes |
| Audio Line Out | Yes |
| Number of VGA Ports | 1 |
| VGA | Yes |
| Serial | Yes |
| Software | |
| Operating System Platform | Android |
| Operating System | Android 8.0 Oreo |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Power Consumption | 294 W |
| Physical Characteristics | |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 800 x 600 |
| Height | 45.7" |
| Width | 77.1" |
| Depth | 3.4" |
| Weight (Approximate) | 145.51 lb |
| Miscellaneous | |
| Additional Information |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 3 Year |
