LOUROE ELECTRONICS LE-345 ASK-4 #350 - IF-PX Interface PoE Extractor w/ A Microphone

The ASK-4® #350 is a single zone audio monitoring system for direct connection to an IP camera. This kit comes with an IF-PXwhich is a PoE inline interface and a Verifact® A Microphone. The IF-PX is an audio-oriented, single zone power over Ethernet extractor that extracts power from an ethernet connection to power Louroe's one-way or two-way audio solutions.

The PoE Extractor interfaces with Louroe speakerphones, microphones and other external devices that require a 12 Vdc supply such as system accessories and non PoE cameras. The IF-PX also permits audio and video equipment to be powered by a single run of CAT5, CAT5e or CAT6 cable. The IF-PX enhances the functionality of audio security systems by eliminating the need for a power supply. It also provides seamless installation with 15W PoE (802.3af) standards and easy integration with IP cameras.

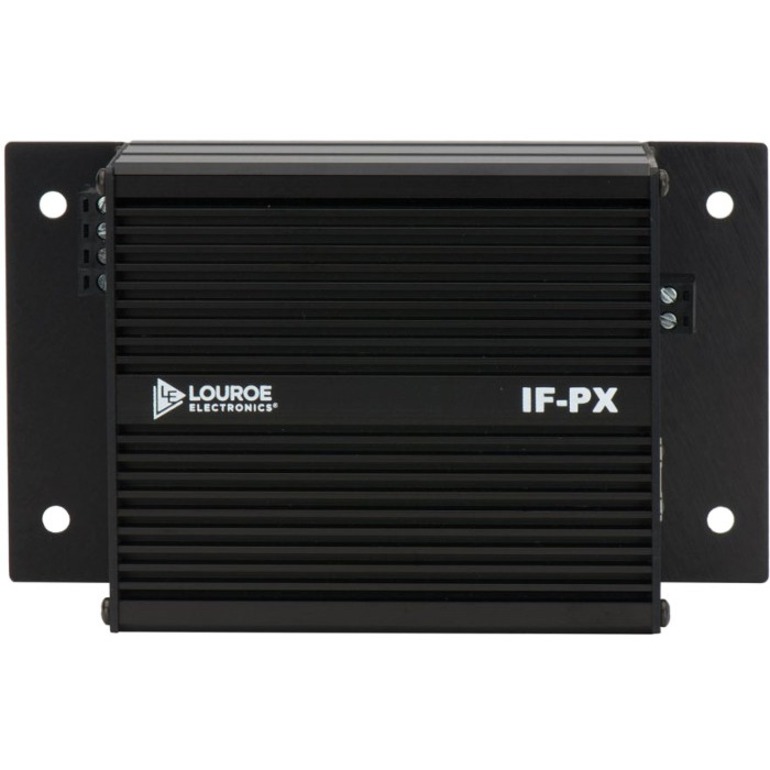

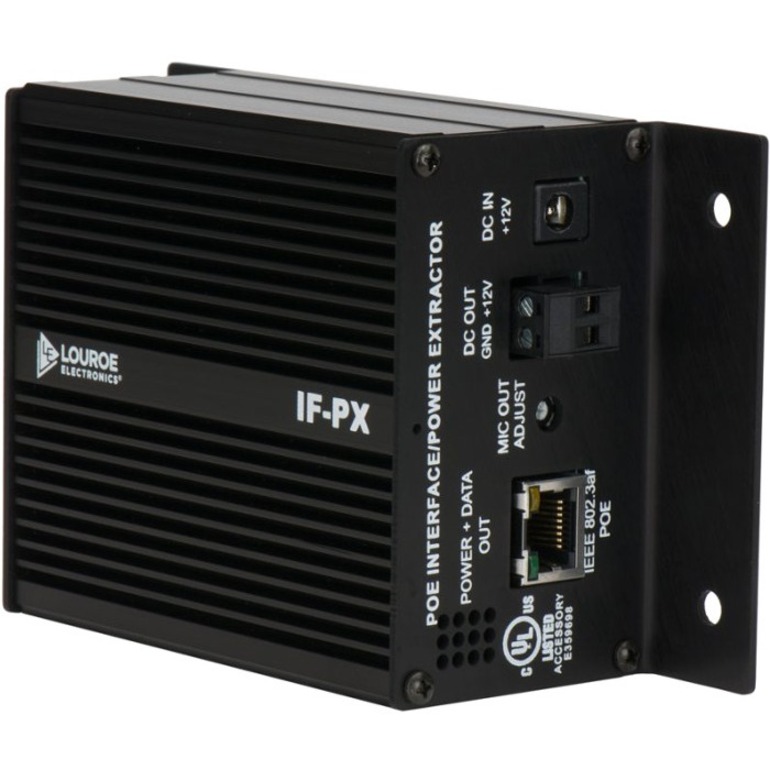

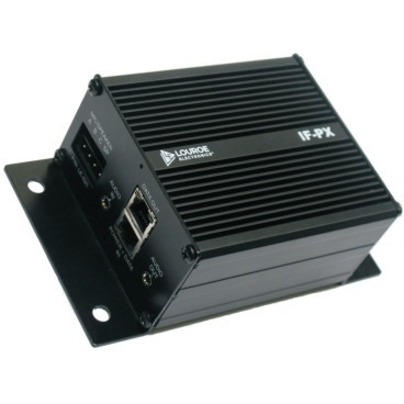

IF-PX:

• Single zone Power over Ethernet (PoE) extractor
• Line level audio in & out (3.5mm jacks)
• Adjustable gain potentiometer
• Low-profile for ease of installation
• Durable, powder coated extruded aluminum housing

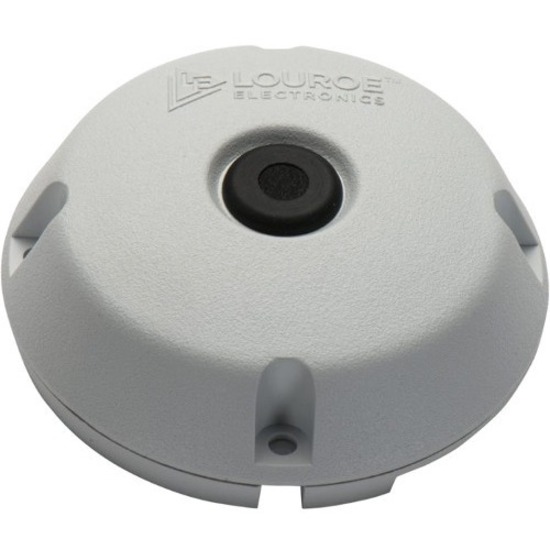

Verifact® A:

• Omni-directional, within 30? diameter circle
• Durable, high impact ABS housing
• Can be placed up to 1000? away from the base station
