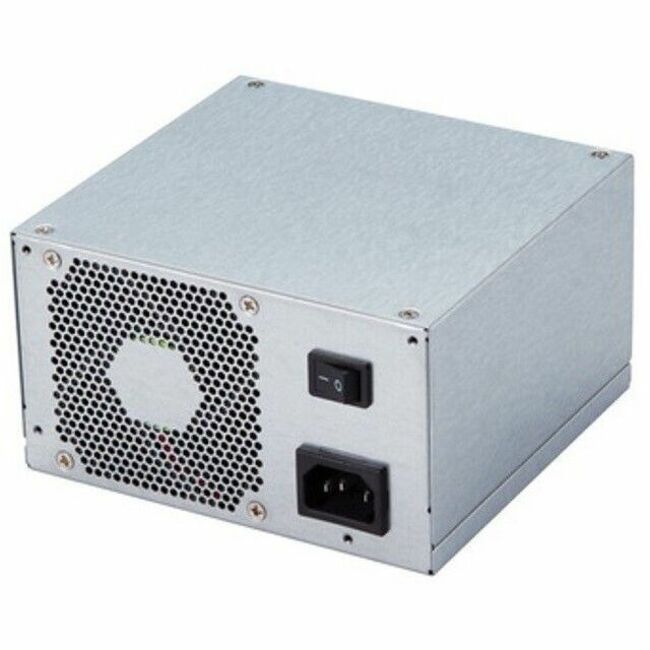

FSP GROUP FSP FSP600-80PSA(SK) 600W ATX 12V 85+ Bronze UL62368 Non-modular Retail
Mfg Part Number: FSP600-80PSA(SK) , Item #: 4188370
Image may not reflect the actual item.
Price: $138.93
+ Free Shipping
Quantity:
More to Come
Last Updated: May 14, 2025
No Sales Tax except these states
, PO and Wire.
FSP600-80PSA(SK) is an industrial level of switching power supply. The power supply comes to offer the total power capacity up to 600 Watts, and provides optional -5V output features, which makes it to be perfectly used in an industrial environment. In addition, the power supply is ideally the best choice for workstation, communication or any other automation applications to use. The product also complies with the latest safety and EMC standards, which is perfectly to meet various regulations worldwide.
Main Specification
| General Information | |
| Manufacturer | FSP Group USA Corp |
| Manufacturer Part Number | FSP600-80PSA(SK) |
| Manufacturer Website Address | http://www.fspgroupusa.com |
| Brand Name | FSP Group |
| Product Model | FSP600-80PSA(SK) |
| Product Name | FSP600-80PSA(SK) 600W Power Supply |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX |
| Protection Type | Over Current |
| Protection Type | Over Temperature |
| Protection Type | Over Voltage |
| Reliability | |
| MTBF | 100000 Hour |
| Power Description | |
| Number of +12V Rails | 4 |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | -12 V DC |
| Output Voltage | 5 V SB |
| Output Voltage | 3.3 V DC |
| Output Voltage | 5 V DC |
| Output Voltage | 12 V DC |
| Output Voltage Detail | 5 V DC @ 25 A |
| Output Voltage Detail | 12 V DC @ 16 A |
| Output Voltage Detail | 3.3 V DC @ 25 A |
| Output Voltage Detail | 5 V SB @ 4 A |
| Output Voltage Detail | -12 V DC @ 0.5 A |
| Output Current | 500 mA |
| Output Current | 4 A |
| Output Current | 25 A |
| Output Current | 16 A |
| Output Power | 600 W |
| Input Frequency | 63Hz |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Physical Characteristics | |
| Height | 3.4" |
| Width | 5.9" |
| Miscellaneous | |
| Certifications & Standards |
|
| Energy Efficiency Certification | 80 Plus Bronze |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
