Edimax

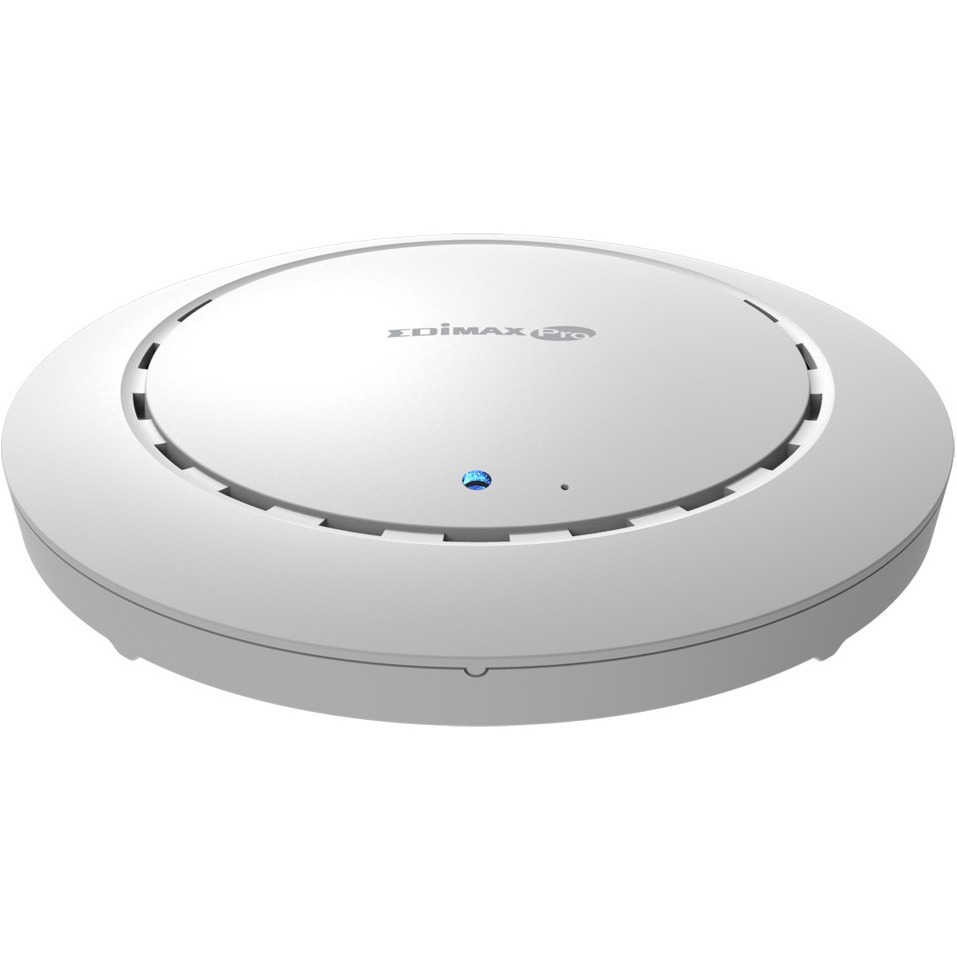

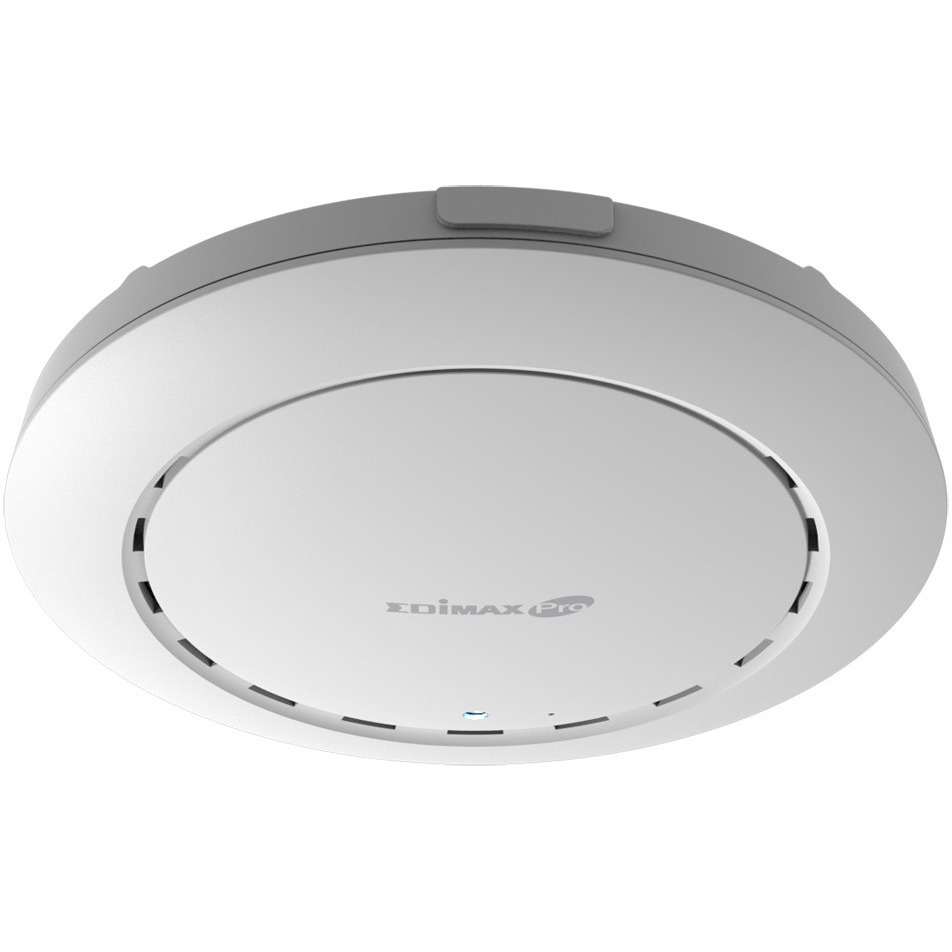

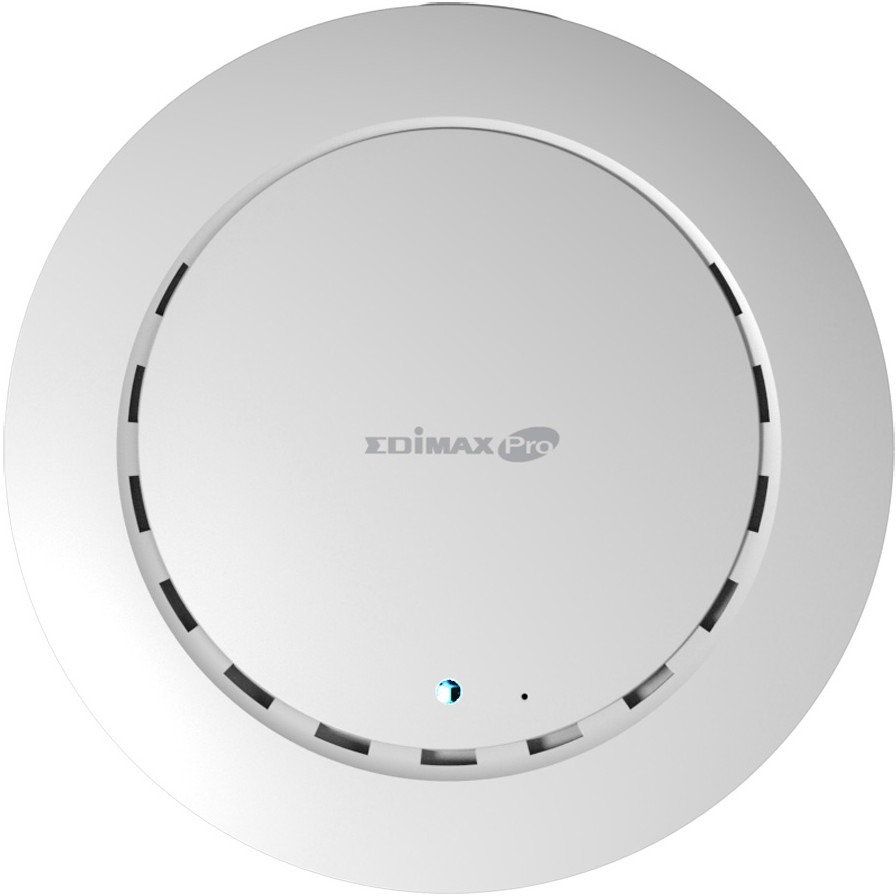

Edimax NT CAP1300 AC1300 Wave 2 Dual-Band Ceiling-Mount PoE Access Point
Mfg Part Number: CAP1300 , Item #: 4187725
, PO and Wire.
Powerful Mainstream Solution For Modern Businesses
- 802.11ac Wave 2 High Speed Dual-Band
- Efficient MU-MIMO
- High Performance Wi-Fi
- Compact & Durable Housing
- Designed for High Density Usage
- Multiple SSIDs for Security Management
- 802.11r/k Fast Roaming
- Wide Coverage & High Sensitivity
- Power over Ethernet
- Built-In RADIUS Server
- Business Environments
- Central Management
Powerful Mainstream Solution For Modern Businesses
Superior High-Speed Wi-Fi
Supports IEEE 802.11ac Wave 2 concurrent dual-band with 1300Mbps (2.4GHz at 400Mbps and 5GHz at 867Mbps) wireless speed for high bandwidth data or video transmission.
Efficiently Serves Multiple Devices
Connects more devices simultaneously with two MU-MIMO spatial streams and enhances Wi-Fi efficiency.
Optimal Wi-Fi Performance
Featuring Beamforming, AirTime Fairness, Band Steering improved Wi-Fi range, reliability and performance.
Ideal Mainstream Choice for SMBs
Supports up to two hundreds users simultaneously, CAP1300 is suitable for a wide range of commercial applications such as offices, hotels, meeting rooms, schools, campuses, resorts, retail and others.
Free, Easy and Intuitive Central Network Management Suite (NMS)
FREE Built-in Edimax Pro NMS (Network Management Suite) is a web-based wireless network management system. Company MIS persons can plan and manage Edimax Pro access points' powerful functionality according to their office space using an easy, remote web-based interface. (Click here to learn more about NMS.)
AP Array
Edimax Pro Network Management Suite (NMS) supports AP array architecture, which enables the CAP1300 central management of a group of Edimax Pro access points. NMS can be installed on one access point and support up to 16 Edimax Pro access points with no additional wireless controller required, reducing costs and facilitating efficient remote AP management.
Easy Installation Kit
Ceiling-mount & T-rail mount design with easy installation kit.
| General Information | |
| Manufacturer | Edimax Technology |
| Manufacturer Part Number | CAP1300 |
| Manufacturer Website Address | http://www.edimax.com |
| Brand Name | Edimax |
| Product Model | CAP1300 |
| Product Name | 2 x 2 AC1300 Wave 2 Dual-Band Ceiling-Mount PoE Access Point |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11ac |
| Frequency Band | 2.40 GHz |
| Frequency Band | 5 GHz |
| Total Number of Antennas | 4 |
| Number of Internal Antennas | 4 |
| Wireless Transmission Speed | 1.27 Gbit/s |
| MIMO Technology | Yes |
| Beamforming Technology | Yes |
| Interfaces/Ports | |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 2 |
| PoE PD Port | Yes |
| VGA | No |
| HDMI | No |
| Powerline | No |
| Physical Characteristics | |
| Form Factor | Desktop |
| Form Factor | Wall Mountable |
| Form Factor | Rail-mountable |
| Form Factor | Ceiling Mountable |
| Height | 1.3" |
| Diameter | 6.9" |
| Weight (Approximate) | 12.06 oz |
