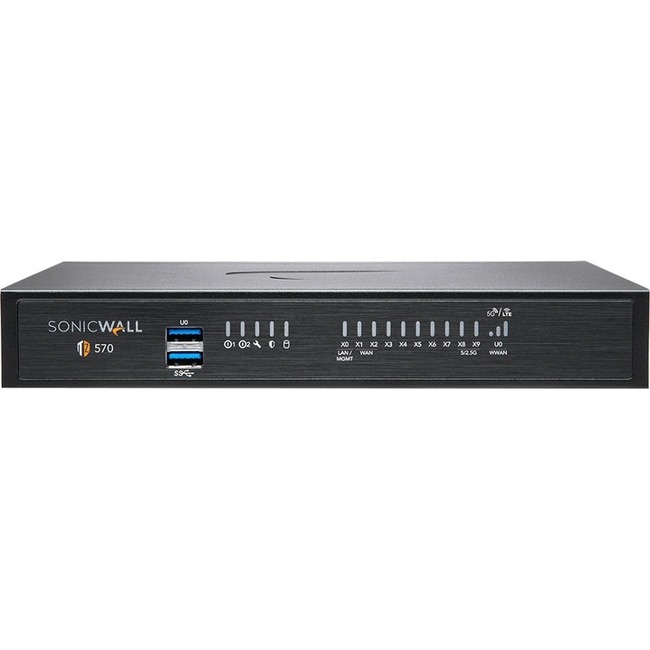

SONICWALL 02-SSC-2835 TZ570 WIRELESS-AC

The SonicWall TZ570 series, available in three models (TZ570, TZ570W, TZ570P) is the first desktop-formfactor next-generation firewall (NGFW) with 5 Gigabit Ethernet interfaces.

Designed for mid-sized organizations and distributed enterprise with SDBranch locations, the TZ570 series delivers industry-validated security effectiveness with best-in-class priceperformance. TZ570 NGFWs address the growing trends in web encryption, connected devices and high-speed mobility by delivering a solution that meets the need for automated, realtime breach detection and prevention.

The TZ570 is highly scalable, with high port density of 10 ports. It features both in-built and an expandable storage of up to 256GB, that enables various features including logging, reporting, caching, firmware backup and more. An optional second power supply provides added redundancy in case of failure.

Deployment of TZ570 is further simplified by Zero-Touch Deployment, with the ability to simultaneously roll out these devices across multiple locations with minimal IT support. Built on next-gen hardware, it integrates firewalling, switching and wireless capabilities, plus provides single-pane-of-glass management for SonicWall Switches and SonicWave Access Points. It allows tight integration with Capture Client for seamless endpoint security.

SonicOS and Security Services

The SonicOS architecture is at the core of TZ NGFWs. TZ570 is powered by the feature rich SonicOS 7.0 operating system with new modern looking UX/UI, advanced security, networking and management capabilities. TZ570 features integrated SD-WAN, TLS 1.3 support, realtime visualization, high-speed virtual private networking (VPN) and other robust security features.

Unknown threats are sent to SonicWall's cloud-based Capture Advanced Threat Protection (ATP) multiengine sandbox for analysis. Enhancing Capture ATP is our patent-pending Real-Time Deep Memory Inspection (RTDMI™) technology. As one of Capture ATP's engine, RTDMI detects and blocks malware and zero-day threats by inspecting directly in memory.

By leveraging Capture ATP with RTDMI technology, in addition to security services such as ReassemblyFree Deep Packet Inspection (RFDPI), Anti-virus and Anti-spyware Protection, intrusion prevention system, Application Intelligence and Control, Content Filtering Services, DPI-SSL, TZ series firewalls stop malware, ransomware and other advanced threats at the gateway. For more information, refer the SonicOS and Security Services Datasheet.

General Information
Manufacturer	SonicWall Inc.
Manufacturer Part Number	02-SSC-2835
Manufacturer Website Address	http://www.sonicwall.com
Brand Name	SonicWall
Product Series	TZ
Product Model	TZ570W
Product Name	TZ570W Network Security/Firewall Appliance
Product Type	Network Security/Firewall Appliance
Technical Information
Firewall Protection Supported	Malware Protection
Firewall Protection Supported	Application Control
Firewall Protection Supported	Denial of Service (DoS)
Firewall Protection Supported	Distributed Denial of Service (DDoS)
Firewall Protection Supported	Content Filtering
Firewall Protection Supported	Deep Inspection Firewall
Firewall Protection Supported	Secure IPsec VPN Connectivity
Firewall Protection Supported	Threat Protection
Firewall Protection Supported	Intrusion Prevention
Firewall Protection Supported	Stateful Packet Filtering
Firewall Protection Supported	URL Filtering
Firewall Protection Supported	Spyware Protection
Firewall Protection Supported	Signature-based Intrusion Prevention
Encryption Standard	AES (256-bit)
Encryption Standard	SHA-1
Encryption Standard	DES
Encryption Standard	WEP
Encryption Standard	WPA
Encryption Standard	MD5
Encryption Standard	3DES
Encryption Standard	TKIP
Encryption Standard	AES (192-bit)
Encryption Standard	AES (128-bit)
Encryption Standard	WPA2
Interfaces/Ports
Total Number of Ports	8
USB	Yes
Number of Network (RJ-45) Ports	8
Network & Communication
Ethernet Technology	5 Gigabit Ethernet
Network Standard	10/100/1000Base-T
Wireless Specifications
Wireless LAN	Yes
Wireless LAN Standard	IEEE 802.11ac
I/O Expansions
Total Number of Expansion Slots	2
Expansion Slot Type	SFP+
Number of SFP+ Slots	2
Management & Protocols
Manageable	Yes
Physical Characteristics
Form Factor	Rack-mountable
Form Factor	Desktop
Height	1.4"
Width	8.9"
Depth	5.9"
Weight (Approximate)	2.18 lb
Miscellaneous
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
