VERTIV
VERTIV SC840DPH-400 CYBEX SC UNIV DP/H SECURE KVM SWCH 4PT
Mfg Part Number: SC840DPH-400 , Item #: 4171923
, PO and Wire.

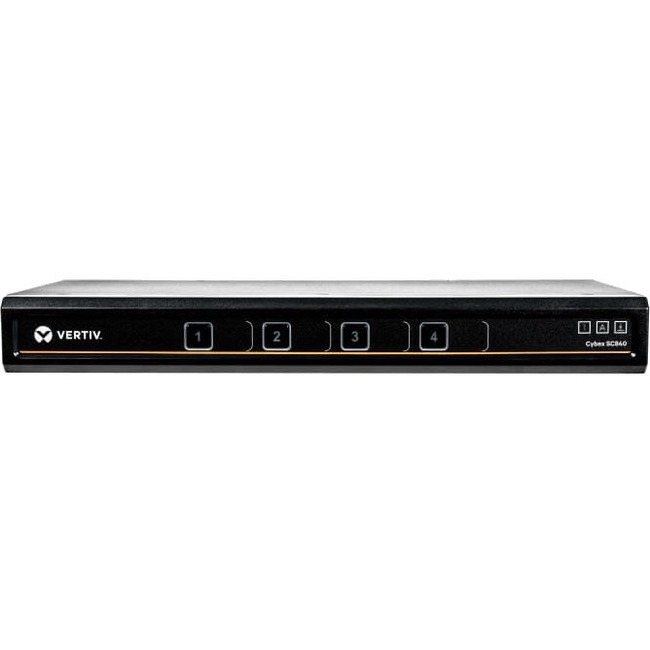

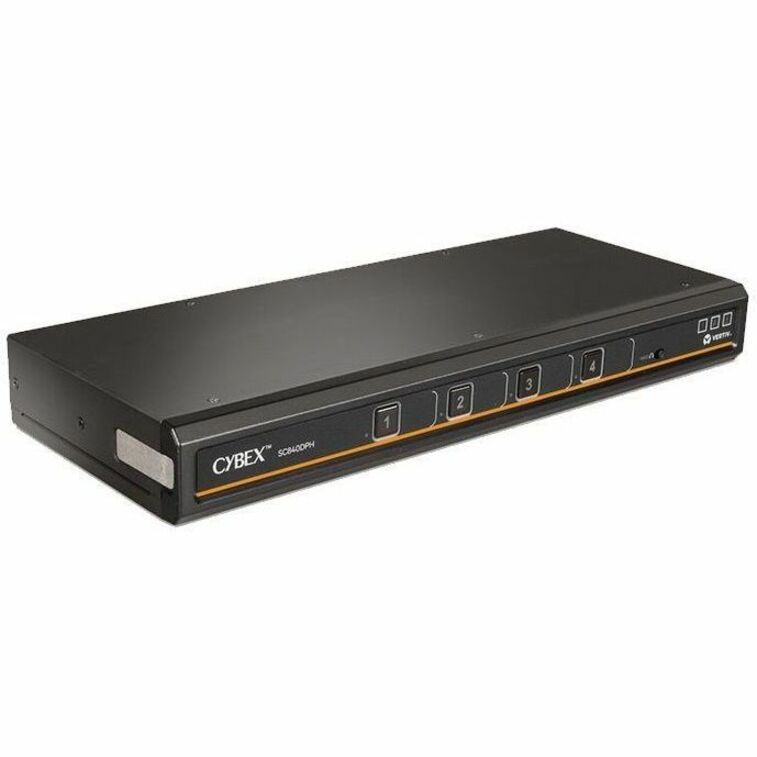

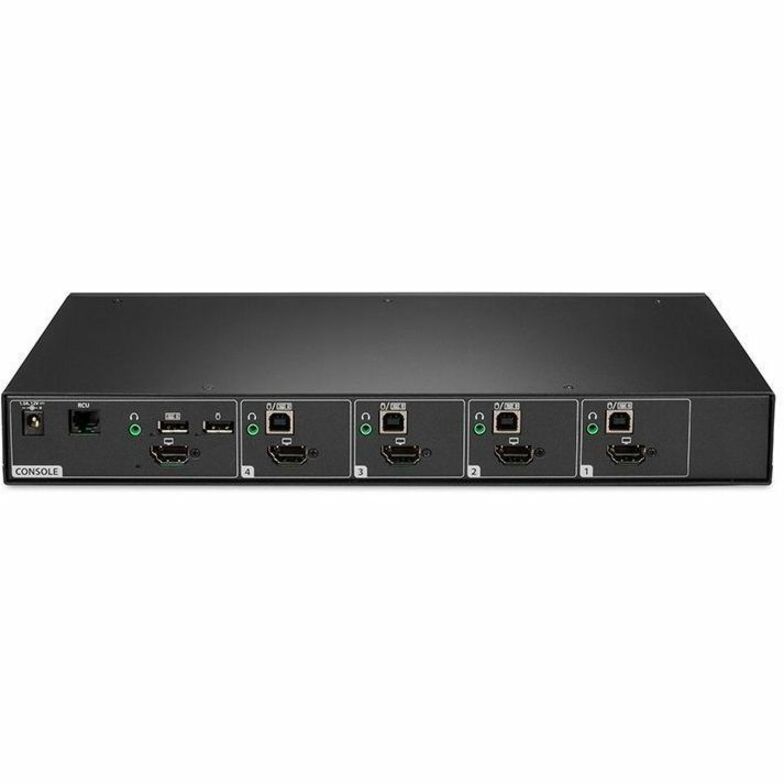

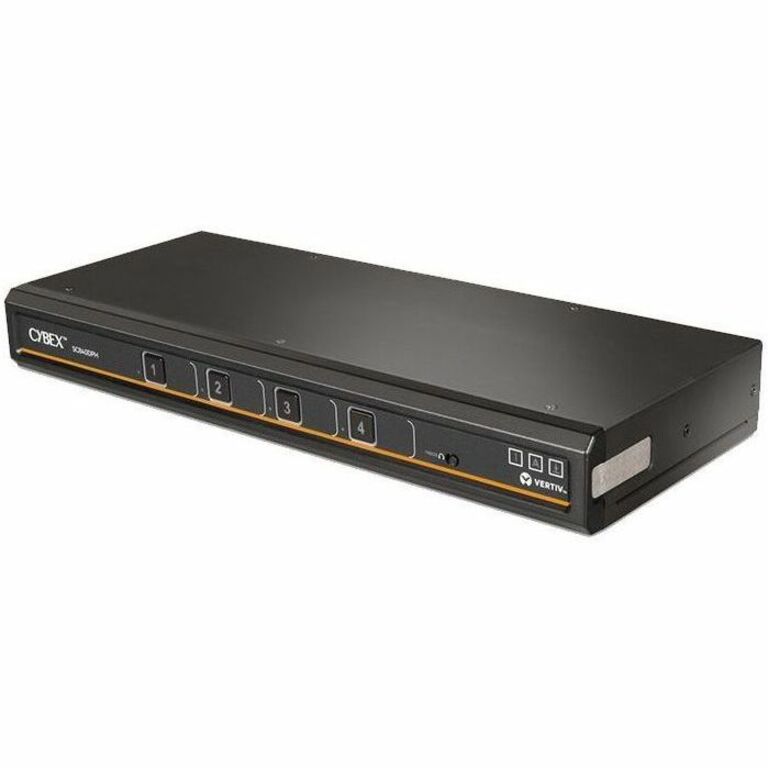

The Vertiv Avocent Cybex SC840DPH-400 secure desktop KVM switch provides secure connectivity across multiple resources. It lets users switch between computers with different security levels while preventing data leaks. Designed for security-conscious organizations, the SC840DPH-400 isolates each connected system, enforcing unidirectional data flow to safeguard sensitive information. It supports a maximum resolution of 3840 x 2160 at 60 Hz on a single display, delivering crisp, clear visuals. The four universal video ports (DisplayPort and HDMI) allow easy connection of up to two systems, while a 3.5mm audio jack supports alerts and notifications. Certified to the latest NIAP Common Criteria Protection Profile for Peripheral Sharing Switch (version 4.0), the SC840DPH-400 also features active intrusion detection and tamper-evident labels to alert users of unauthorized access. With a universal power supply and 4K support, it offers both security and performance in a streamlined solution.
| General Information | |
| Manufacturer | Vertiv |
| Manufacturer Part Number | SC840DPH-400 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Brand Name | Vertiv AVOCENT |
| Product Line | Cybex |
| Product Series | 800 |
| Product Model | SC840 |
| Product Name | Cybex SC800 Secure Desktop KVM Switch, Single Head Monitor, 4 Port, NIAP Version 4.0 Certified, CAC, TAA Compliant (SC840DPH-400) |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
| Technical Information | |
| KVM Technology | Digital & Analog |
| Connectivity Technology | Wired |
| Number of Computers Supported | 4 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 0 |
| Maximum Operating Distance | 10 ft |
| Device Type | Secure KVM |
| Features | Intrusion Detection |
| Features | Tamper Resistant |
| Video | |
| Graphic Mode | 4K |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | No |
| PS/2 Port | Yes |
| USB | Yes |
| HDMI | Yes |
| DVI | Yes |
| VGA | No |
| DisplayPort | Yes |
| Management Port | No |
| Number of Network (RJ-45) Ports | 0 |
| Number of PS/2 Ports | 4 |
| Number of USB Ports | 6 |
| Number of HDMI Ports | 1 |
| Number of DVI Ports | 0 |
| Number of VGA Ports | 0 |
| Number of DisplayPorts | 5 |
| Power Description | |
| Input Current | 1.50 A |
| Input Voltage Range | 100VAC-240VAC |
| Physical Characteristics | |
| Form Factor | Desktop |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 13.7" |
| Depth | 5" |
| Weight (Approximate) | 3 lb |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | NIAP 4.0 Certified |
| Energy Star | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
