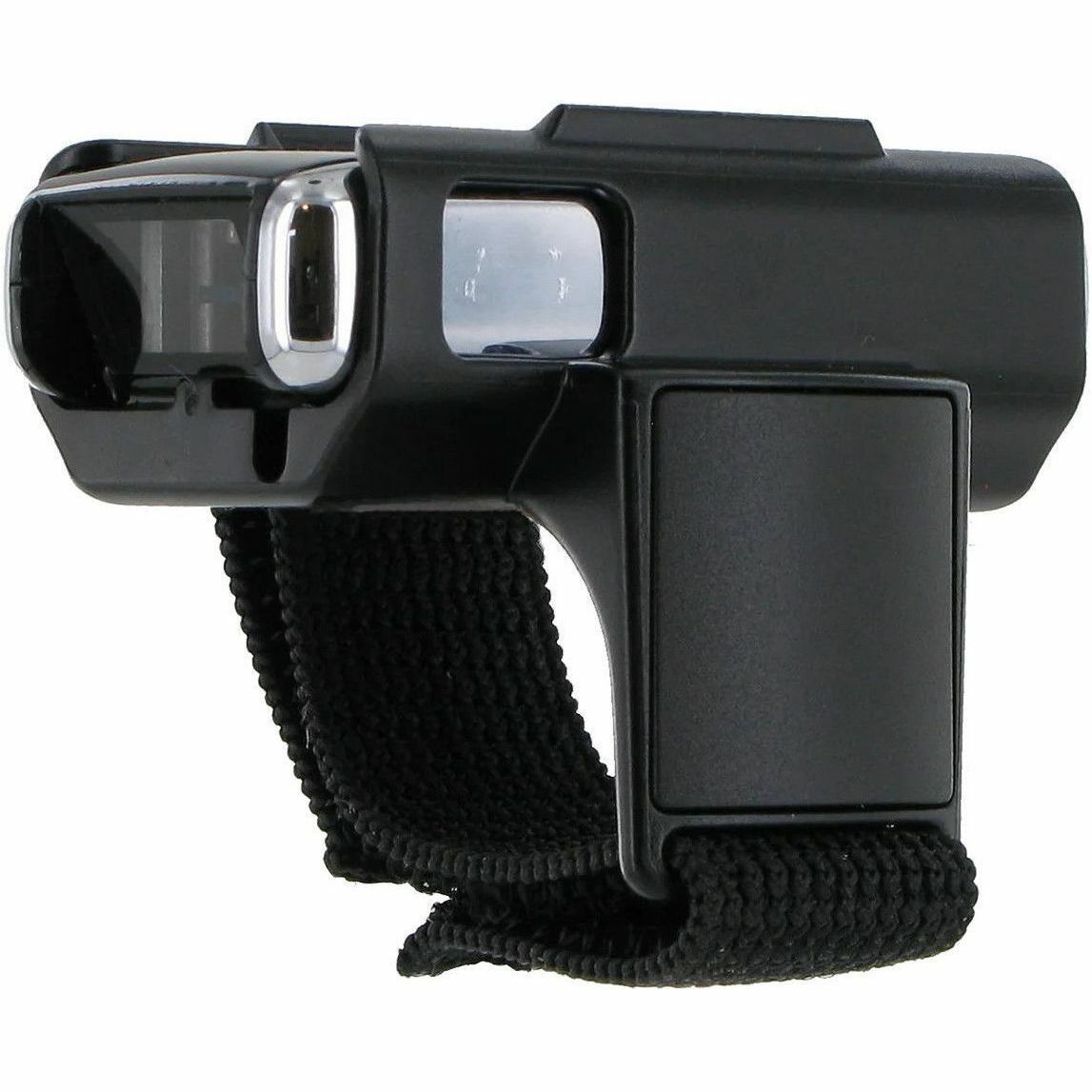

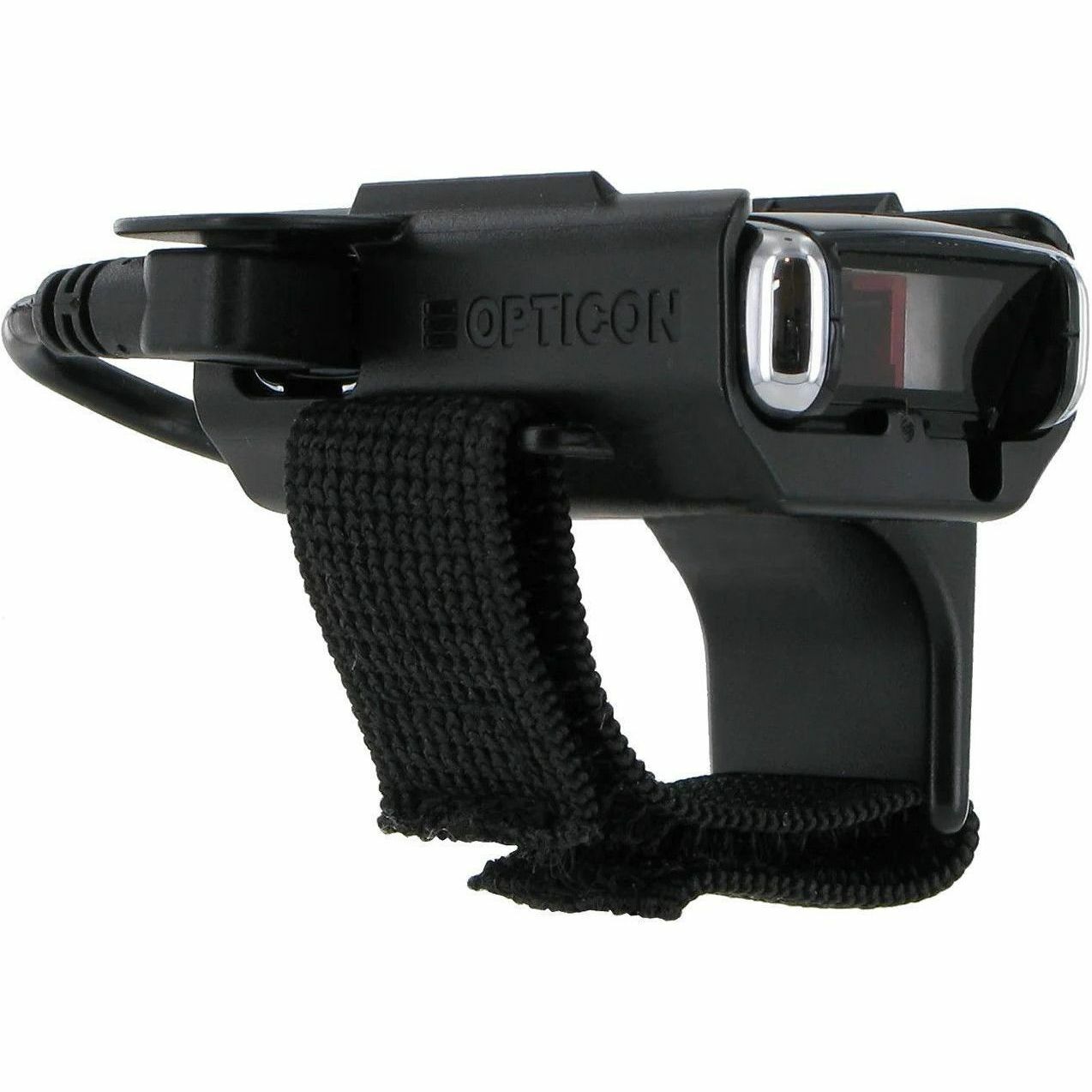

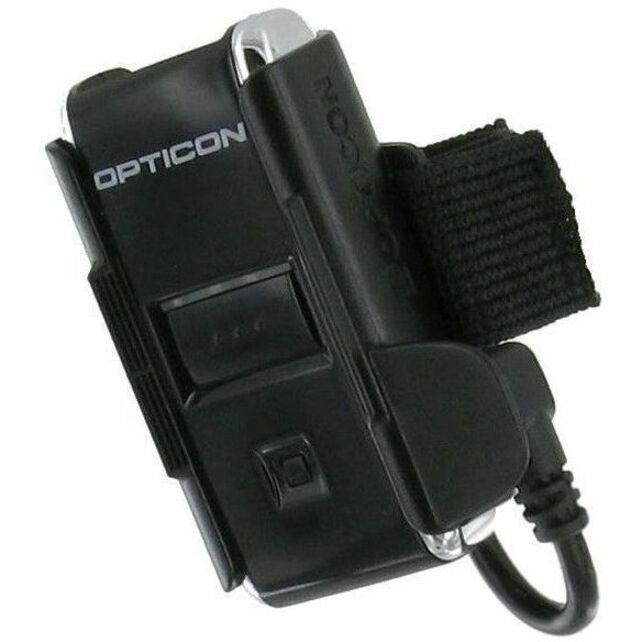

Opticon expands its family of companion Bluetooth barcode scanners by introducing the RS-2006, a small, lightweight and most importantly, hands-free Bluetooth ring scanner. The RS-2006 enables transportation, logistics, warehousing, manufacturing and retail organizations to easily and quickly integrate hands-free barcode scanning into various applications including receiving, put-away, picking (including voice picking), sorting, loading, replenishment, inventory management, parts tracking and shipping.
The RS-2006 kit is designed for left and right-handed use and consists of a modified Opticon OPN-2006 Bluetooth barcode scanner integrated into an ergonomic holder that features an adjustable finger strap. Should the need arise, the OPN-2006 scanner can easily be disconnected from the strap and used stand-alone. Due to its lightweight and small size (the industry's smallest), the RS-2006 ring scanner is comfortable for all day use allowing your mobile workforce to quickly and safely scan barcodes... all while keeping both hands free. RS-2006 product highlights include:
| General Information | |
| Manufacturer | Opticon Sensors Europe |
| Manufacturer Part Number | RS2006-00 |
| Manufacturer Website Address | http://www.opticon.com |
| Brand Name | Opticon |
| Product Line | Companion |
| Product Model | RS-2006 |
| Product Name | RS-2006 Bluetooth Ring Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D |
| Barcode Symbology Supported | 1D:
Postal Code:
|
| Light Source | Laser |
| Scan Rate | 100 scan/s |
| Scan Mode | Trigger |
| Features | Vibration |
| Features | Ergonomic Design |
| Number of Keys | 2 |
| Reading Angle (Skew) | 40° |
| Reading Angle (Pitch) | 25° |
| Reading Angle (Roll) | 20° |
| Maximum Ambient Light | 80000 lux |
| Drop Specification | 5 ft (1.5 m) drop onto concrete surface |
| Memory | |
| Standard Memory | 96 KB |
| Flash Memory | 512 KB |
| Network & Communication | |
| Bluetooth | Yes |
| Interfaces/Ports | |
| Host Interface | USB |
| Battery Information | |
| Battery Chemistry | Lithium Polymer (Li-Polymer) |
| Battery Capacity | 240 mAh |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 104°F (40°C) |
| Storage Temperature | -4°F (-20°C) to 140°F (60°C) |
| Humidity (Non-condensing) | 20% to 85% |
| Physical Characteristics | |
| Form Factor | Wearable |
| Color Family | Black |
| Product Color | Black |
| Product Material | Acrylonitrile Butadiene Styrene (ABS) |
| Durability | Impact Resistant |
| Durability | Dust Resistant |
| Height | 1.8" |
| Width | 2.1" |
| Depth | 2.4" |
| Weight (Approximate) | 1.48 oz |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP42 |
| Application/Usage | Transportation |
| Application/Usage | Logistics |
| Application/Usage | Manufacturing |
| Application/Usage | Warehouse |
| Application/Usage | Retail |
| Platform Supported | PC |
| Platform Supported | Android |
| Platform Supported | iOS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
