OPTICON

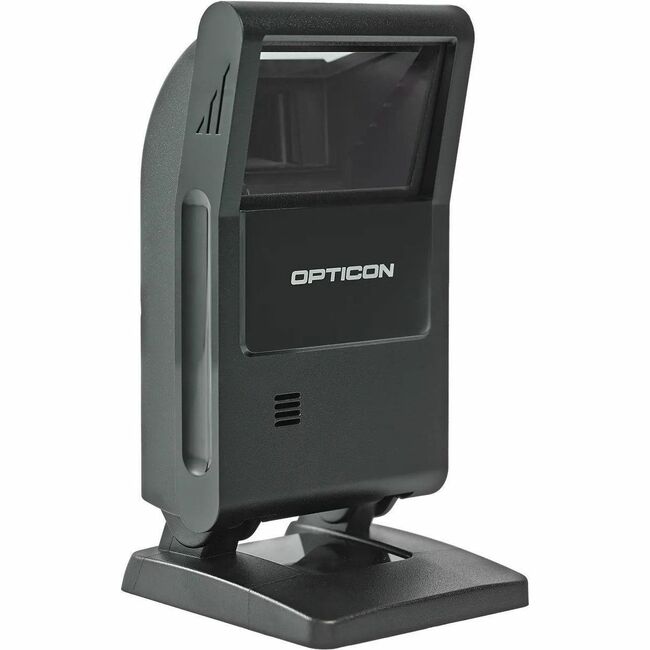

OPTICON M10BU1S-00 BARCODE SCANNERS,2D OMNIDIRECTIONAL CMOS IMAGER, USB

Mfg Part Number:  M10BU1S-00
Image may not reflect the actual item.
Price: $249.20 + Free Shipping
Quantity:
More to Come
Last Updated: Dec 28, 2025
No Sales Tax except these states
, PO and Wire.

This omnidirectionial scanner features multiple scanning capabilities including the ability to scan any barcodes off a mobile phone LCD screen. The M-10's swivel stand makes it easy to tilt the scanner for best scanning orientation and the scanner can also operate as a handheld scanner

Main Specification
General Information
Manufacturer Opticon Sensors Europe
Manufacturer Part Number M10BU1S-00
Manufacturer Website Address http://www.opticon.com
Brand Name Opticon
Product Model M-10
Product Name M-10 2D CMOS Imager
Product Type Barcode Scanner
Technical Information
Connectivity Technology Cable
Scanning Capability 1D
Scanning Capability 2D
Barcode Symbology Supported

Barcode (1D):

  • JAN/UPC/EAN incl. add on, Codabar / NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/ Plessey, UK/Plessey, S-Code, Telepen, Tri-Optic, USPS

2D Code:

  • Aztec Code, Aztec Runes, Composite codes, Codablock F, Data Matrix (ECC200), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, Passport MRZ (OCR-B), PDF417, QR Code

Postal code:

  • Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, Postal JPN, POSTNET
Light Source LED
Image Sensor Type Imager
Scan Mode Trigger
Scanning Distance 5.51"
Features Beep
Features Notification LED
Cable Type Included USB
Field of View (Horizontal) 41°
Field of View (Vertical) 26°
Reading Angle (Skew) 50°
Reading Angle (Pitch) 50°
Reading Angle (Roll) 360°
Image Formats BMP
Image Formats JPEG
Maximum Ambient Light 100000 lux
Drop Specification

1.5 m / 5 ft drop onto concrete surface
Minimum Element Resolution (Code 39) 5 mil
Maximum Element Resolution (Code 39) 10 mil
Minimum Element Resolution (PDF417) 6.7 mil
Maximum Element Resolution (PDF417) 10 mil
Image Sensor Resolution 752 x 480
Interfaces/Ports
Host Interface USB
Environmental Conditions
Operating Temperature 32°F (0°C) to 104°F (40°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 25% to 90%
Physical Characteristics
Form Factor Desktop
Color Family Black
Product Color Black
Durability Dust Resistant
Height 2.8"
Width 2.8"
Depth 5.5"
Weight (Approximate) 8.82 oz
Miscellaneous
Ingress Protection (IP) Rating IP52
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 2 Year
product information
WARNING:: The plastic used in cable products can expose you to lead and lead components, chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov
